| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | DB22072201 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1000/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 100 Pieces/Month |
| Material: | 18CrNiMo7/ 17CrNiMo6 | Gear Profile Type: | Double Helical Gear |
|---|---|---|---|
| Heat Treatment: | Carburizing | Hardness: | 58-62 HRC |
| Manufacturing Process: | Gear Teeth Grinding | Quality Grade: | ISO 6-7 Grade |
| Highlight: | 17CrNiMo6 Double Helical Gears,Gear Grinding Transmission Gears,4 Module Double Helical Gears |
||

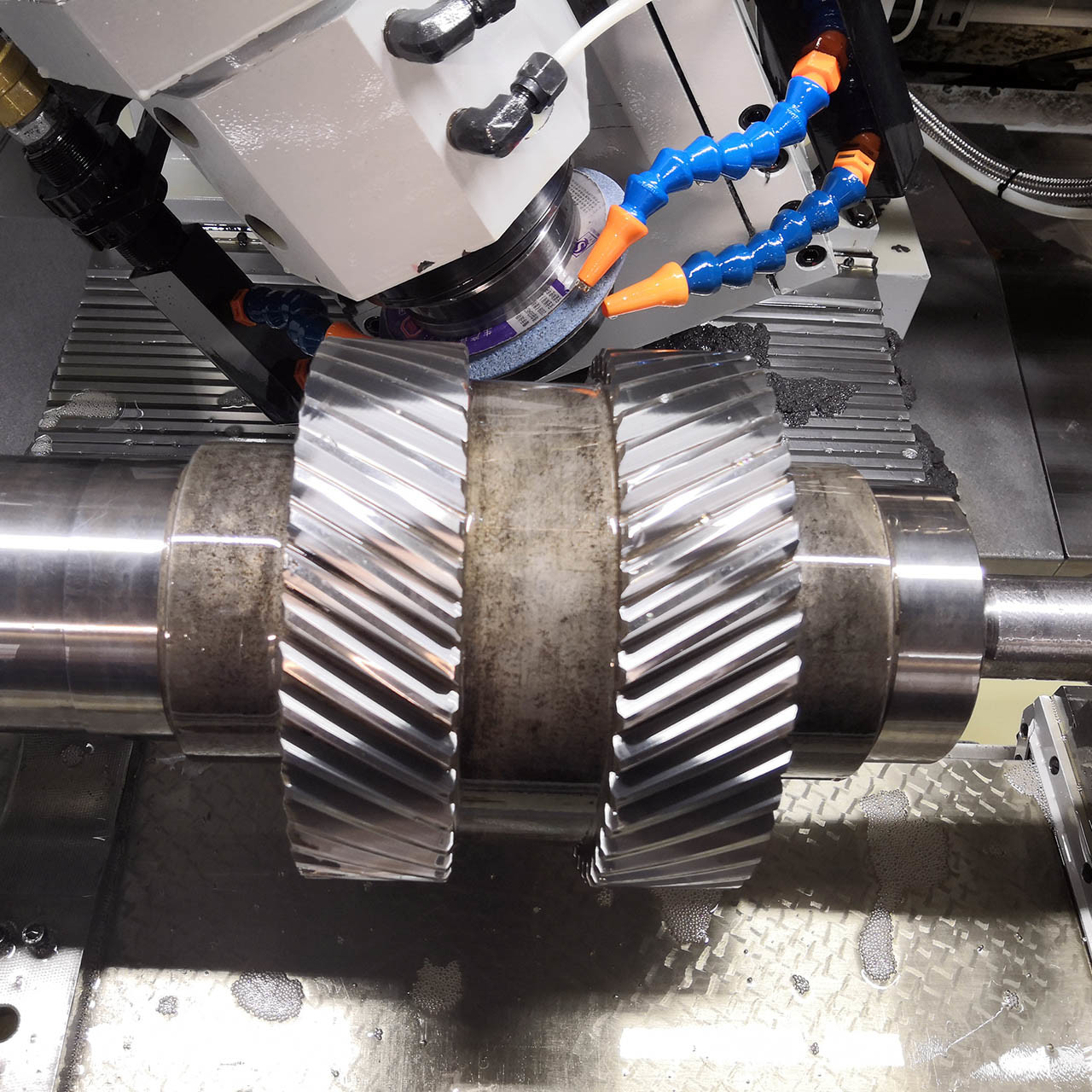

4 Module 17CrNiMo6 gear grinding Doubel Helical Gear of Gear box
1) Description of Double Helical Gear
A gear with both left hand and right hand helcial teeth called double helical gear.
2) Feature of Double Helical Gear
The double helcial gear from balances the inherent thrust forces
3) Heat Treatment of Double Helical Gear
Quenching and Tempering heat treatment is widely used for double helcial gear.
Carburizing heat treatement can also considered for double helcial gear if the gear need gear profle grinding.
| Products | Double Helical Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Manufacturing | Gear Grinding |
| Teeth Grinding | √ |
| Module (M) | 4 |
| Number of Teeth (Z) | 43&77 |
| Pressure Angle (α) | 20° |
| Lead Angle | 31° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
|
