Transmission Gear Shaft
>
|
|
| Place of Origin | CHINA |
| Brand Name | YIZGEAR |
| Model Number | GS22072401 |

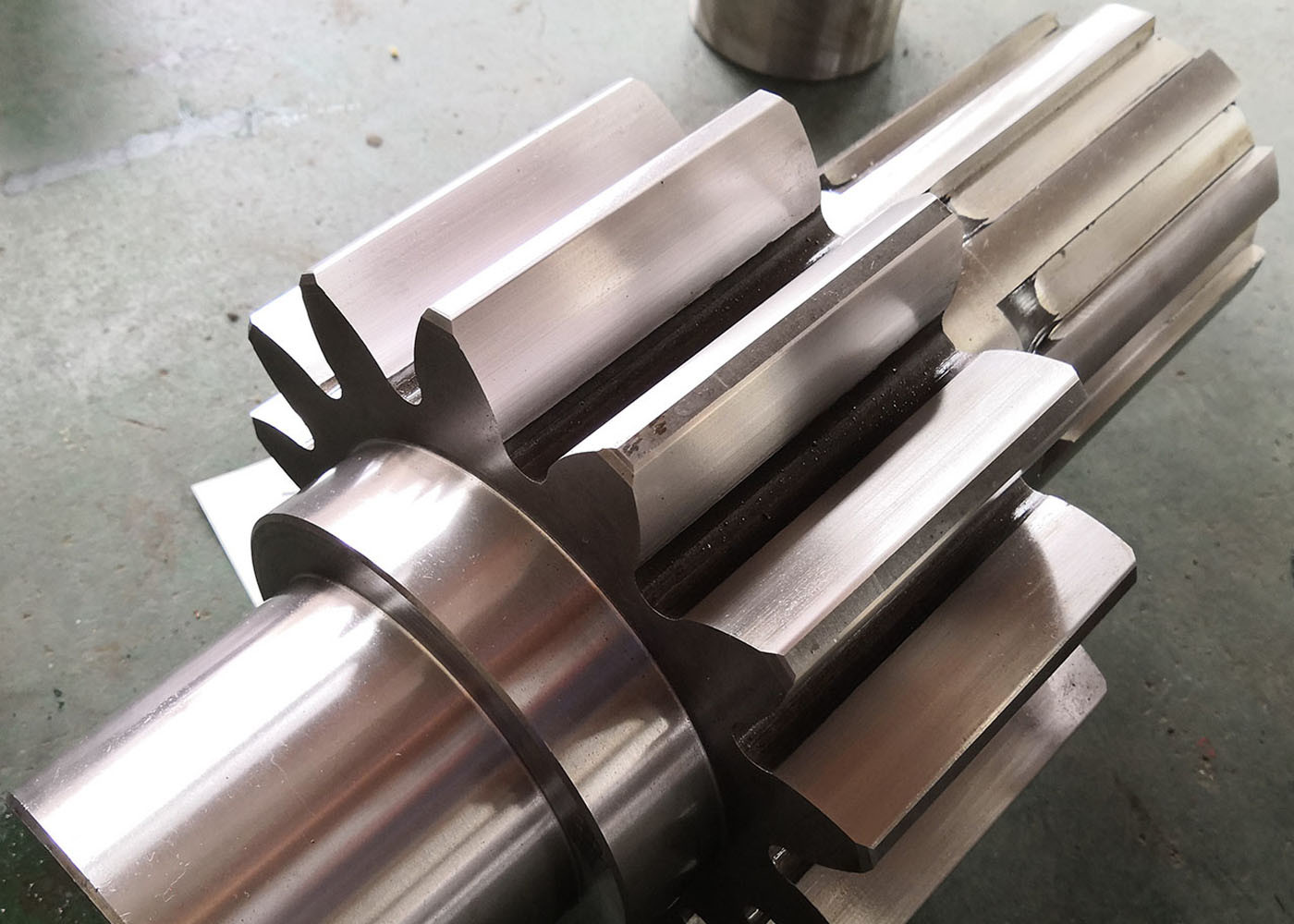

Transmission Parts-Spline Shaft and Spur Gear Shaft Output Shaft
Spur gear is the most common type of gear.
The teeth are straight and parallel to the shaft axis.
Transmit power and motion between rotating two parallel shafts.
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
