| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | DB220804001 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1000/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 100 Pieces/Month |
| Brand: | OEM | Pitch: | 3.819 |
|---|---|---|---|
| Lenth: | 2200mm | Direction: | Left-hand & Right Hand |
| Roughness: | Ra 0.8~Ra 1.6 | Helix Angle: | 25° |
| Highlight: | Double Helical Spline Shaft 12 Module,40CrNiMoA Steel Double Helical shaft,OEM Double Helical Spline Shaft |
||

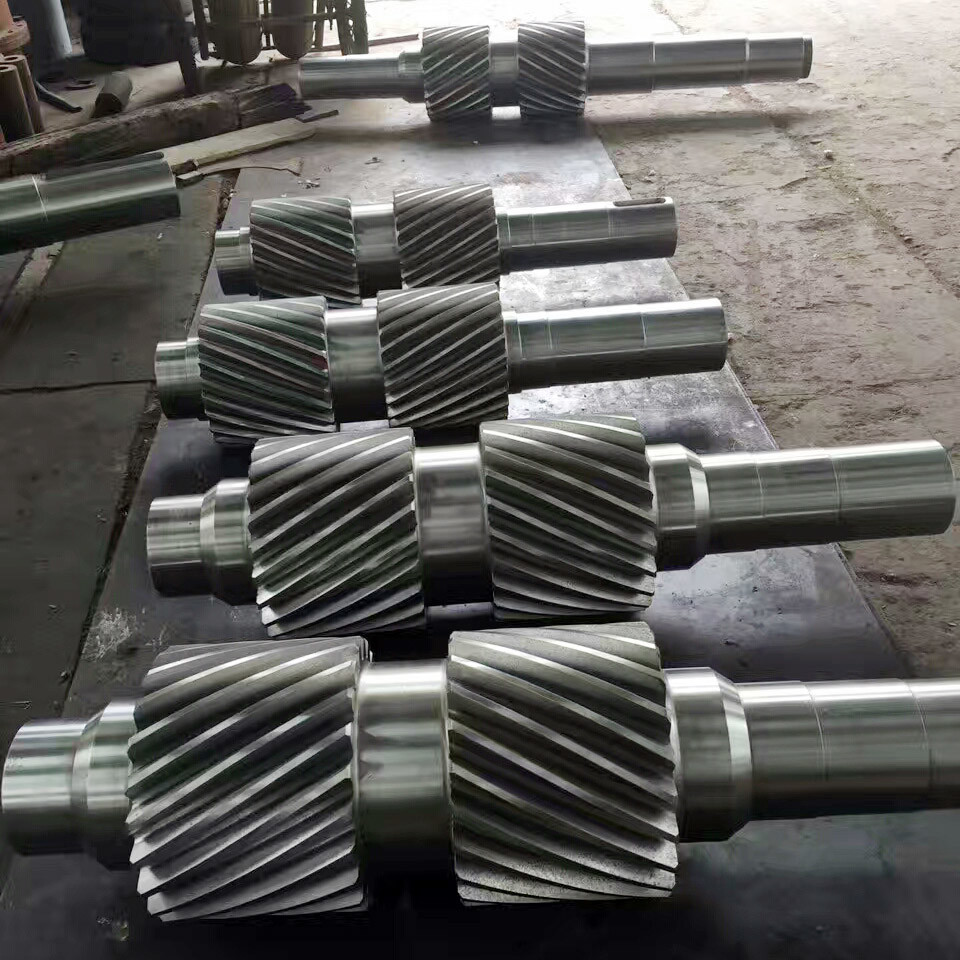

Custom-made 12 Module 40CrNiMoA Steel Double Helical Gear Shaft
1) Description of Double Helical Gear
The double helical gear total face is made into two equal halves, both with the same helix angle but with opposite hands.
The axial thrusts are opposite one another, the forces are contained in the gear and not transmitted to the bearing.
2) Feature of double helical gear
Double helical gear forms can balances the inherent thrust forces.
High loading capability and steady transmission are advantaged.
3) Applications of Double Helical Gear
Double helical gears have been widely used for power transmission in gas turbine, generators, prime mover, pump,
fan, and compressor in marine ships and construction machine.
| Products | Double Helical Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Manufacturing | Gear Hobbing |
| Teeth Grinding | √ |
| Module (M) | 12 |
| Number of Teeth (Z) | 25 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
