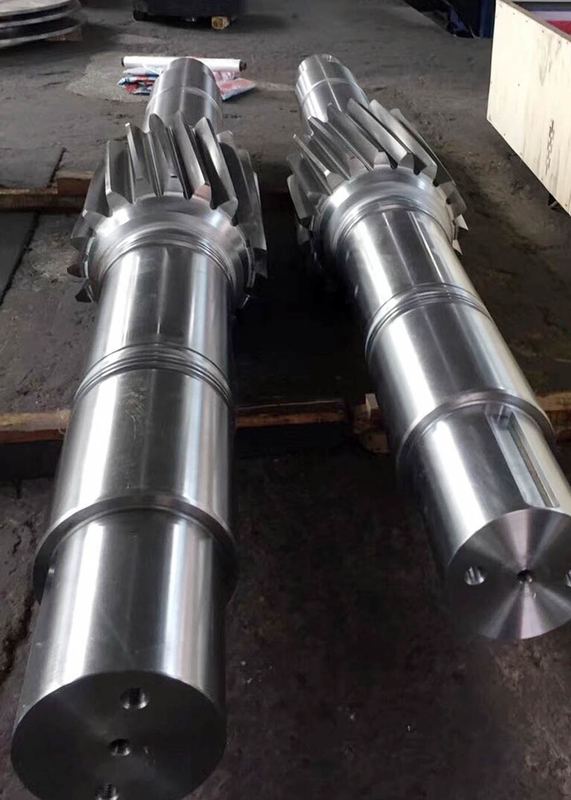

Gear Grinding Transmission Gear Shaft- 17CrNiMo6 Steel Helical Gear Shaft
1) Description of Helical Gear Shaft
Helical gear shaft is a cylindrical shaped gear with helicoid teeth.
2) Direction of Helical Gear Shaft
Right hand and Left hand
3) Features of Helical Gear
Helical gear shaft can bear more load than spur gears.
A axial thrust force caused by the helix form.
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | 16 |
| Number of Teeth (Z) | 17 |
| Pressure Angle (α) | 20° |
| Lead Angle | 25° |
| Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
