| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS220080601 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $300.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Material: | 20XHM | Heat Treatment: | Carburizing |
|---|---|---|---|
| Spline Type: | Parallel Spline | Spline Width: | 10mm |
| Tip Diameter: | 150mm | Minor Diameter: | 137mm |
| Highlight: | 20Cr2Ni4 straight spline shaft,Carburizing Straight Spline Gear Shaft,Spline Gear Shaft 20Cr2Ni4 |
||

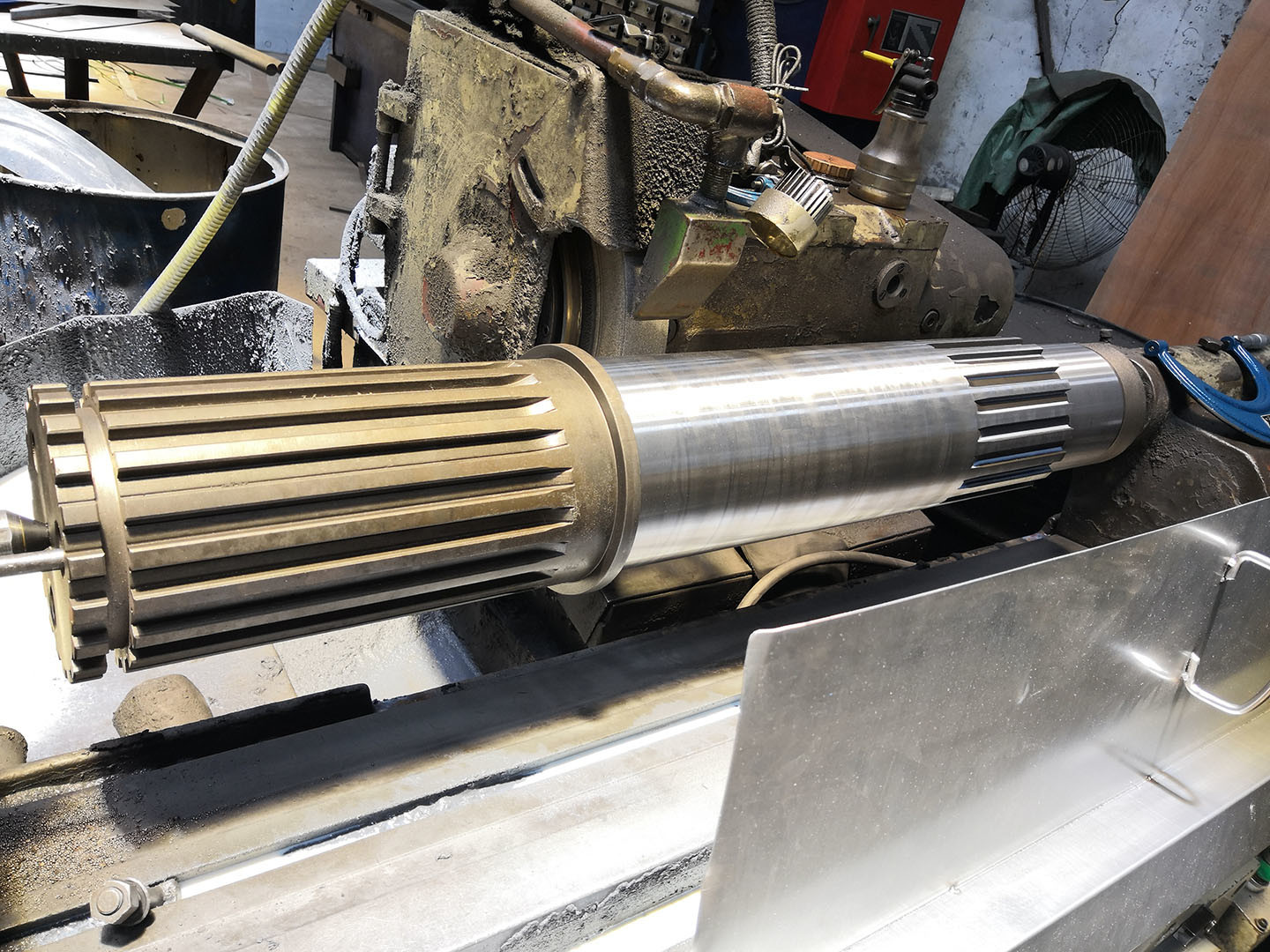

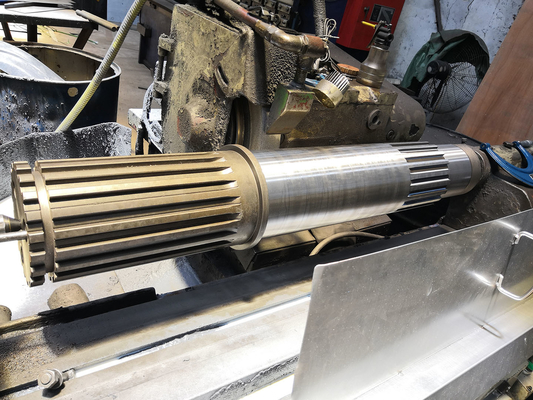

Customized 20XHM 20Cr2Ni4 Steel Parallel Spline Shaft Input Shaft
1) Description of Spline Shaft
Splines are ridges on teeth cut onto a drive shaft that mesh with grooves in a mating piece and transfer torque to it,
maintaining the angular correspondence between them and can be used in many mechanical transmissions
2) Applications of Spline Shaft
Spline shaft used for a wide variety of industries.
Typical used are heavy duty steering units for commercial and earth moving vehicles.
Also widely used on commercial winches, power breakes, classic vehicles plus many other industries that
require a positive drive system.
| Products | Rectangular Spline Shafts |
| Custom Made | √ |
| Gear Profile Type | Spline |
| Gear Teeth manufacturing | Spline Milling/ Spilne Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 30° |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
