| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22082101 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $70/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Total Height: | 14 | Tip Diameter: | Φ46.17 |
|---|---|---|---|
| Helix Angle: | 35° | Material: | 20CrMo |
| Face Width: | 8 | Inner Hole: | Φ32 |
| High Light: | Gleason Type Transmission Spiral Bevel Gears,30T And 21T Spiral Bevel Gears,Gleason Type Transmission gears |
||

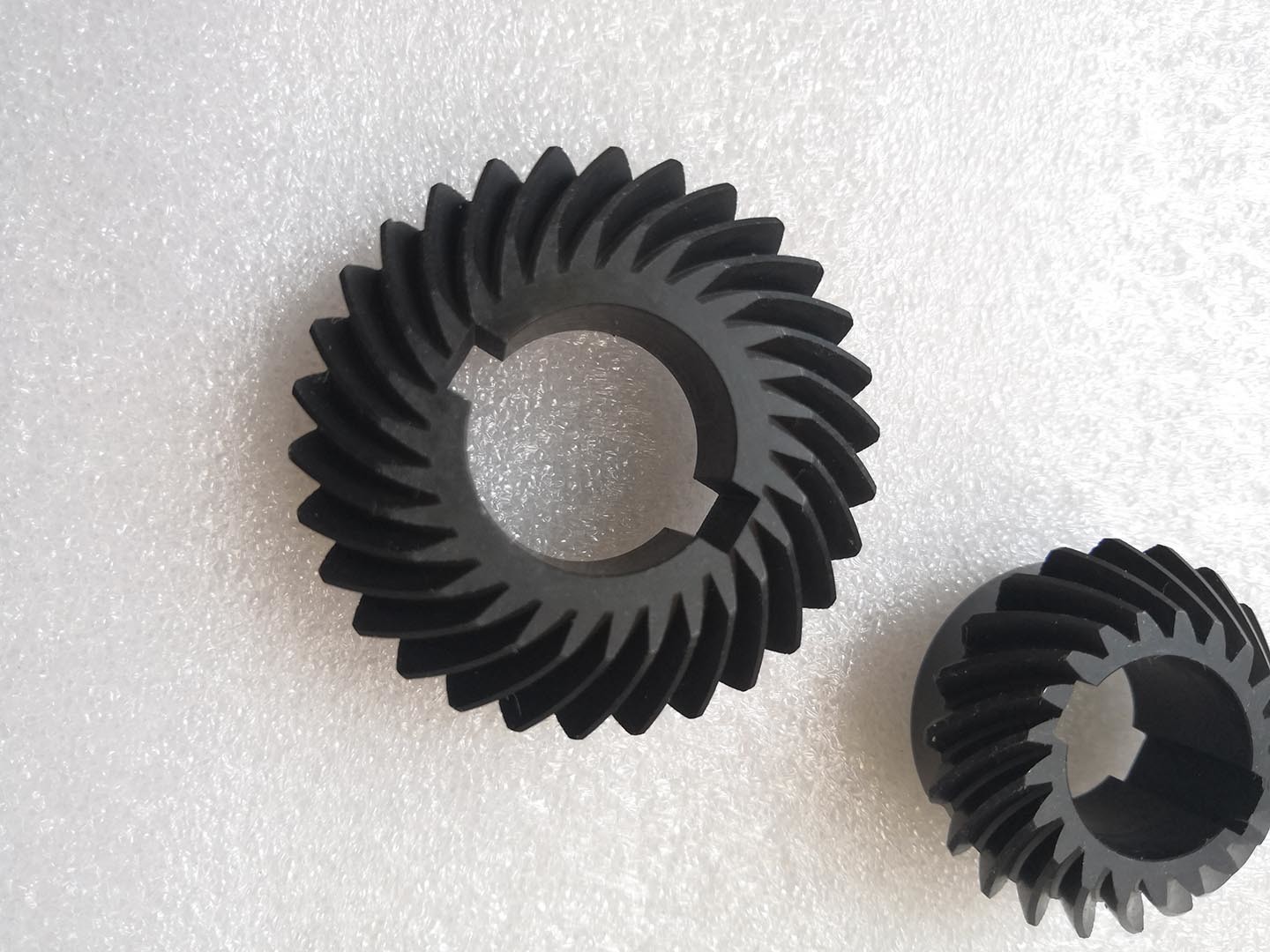

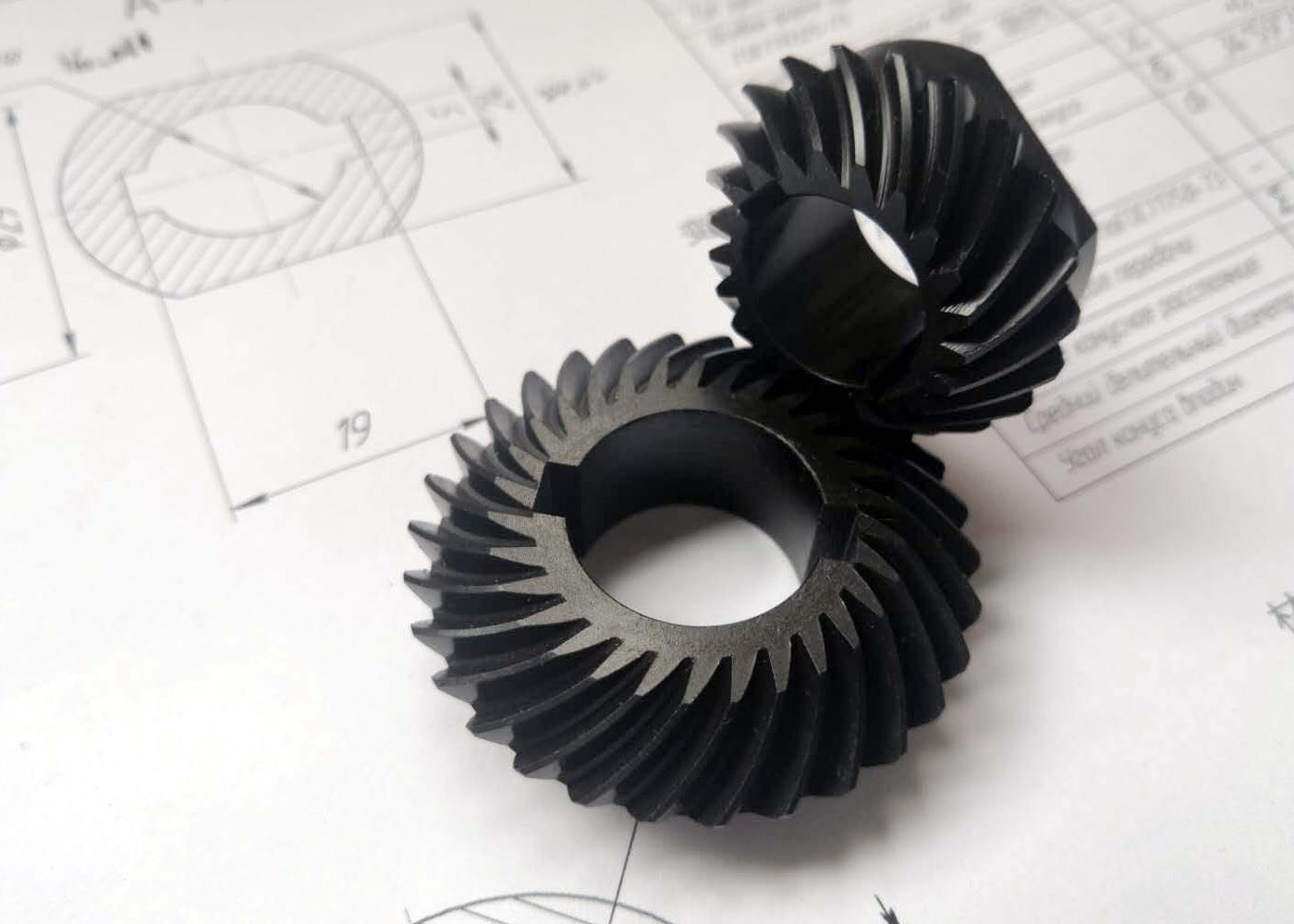

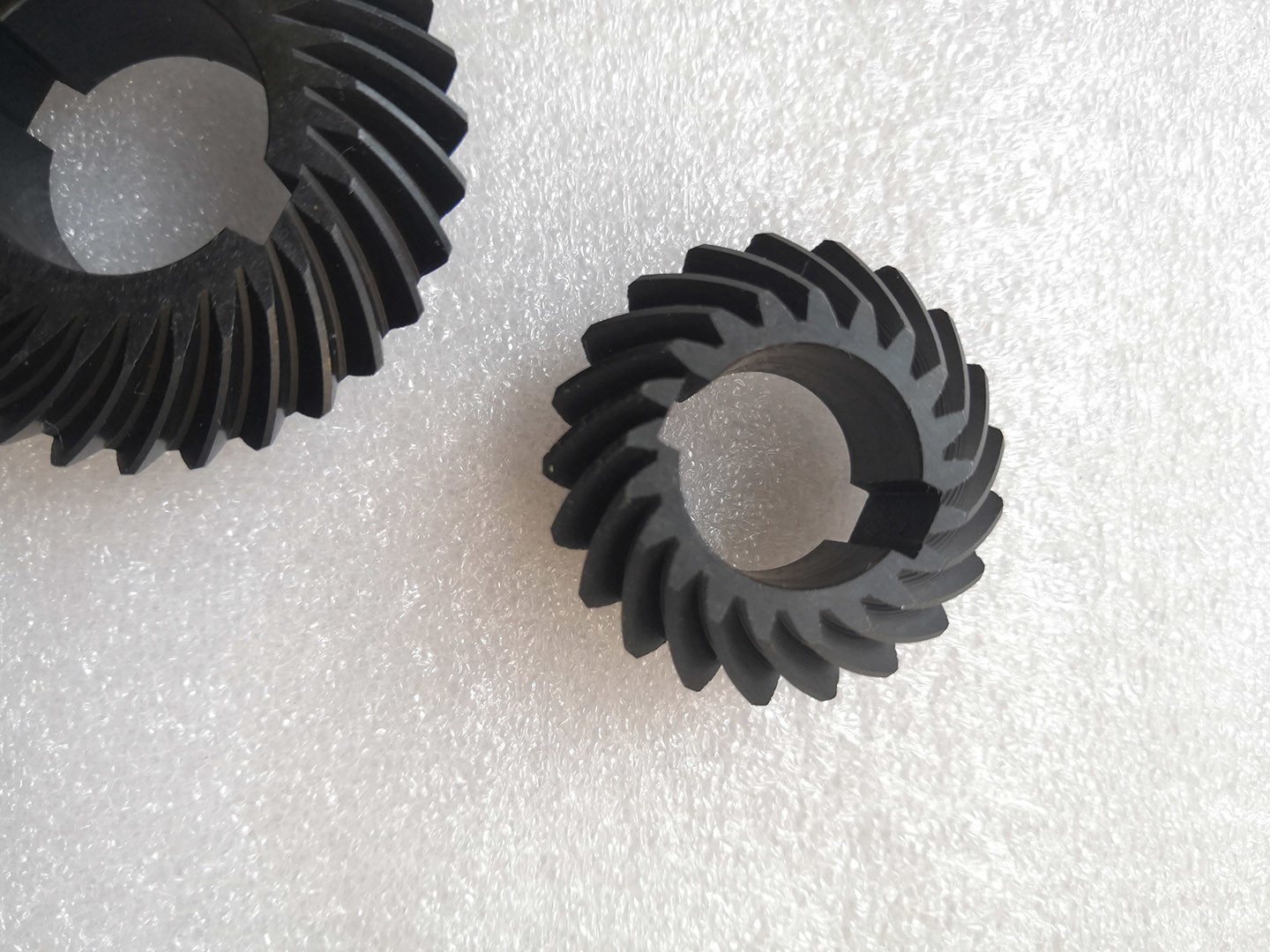

1) Description of Spiral Bevel Gear Set
Spiral Bevel gears can be manufactured as Gleason types (circular arc with non-constant tooth depth),
Oerlikon and Curvex types (circular arc with constant tooth depth), Klingelnberg Cyclo-Palloid
(Epicycloide with constant tooth depth) or Klingelnberg Palloid. Spiral bevel gears have the same
dvantages and disadvantages relative to their straight-cut cousins as helical gears do to spur gears.
Straight bevel gears are generally used only at speeds below 5 m/s, or, for small gears, 1000 r.p.m
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | 20CrMo |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | 1.5 |
| Number of Teeth (Z) | 21/30 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 35° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
