| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SB22082402 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $300/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 14.117 | Gear Roughness: | Ra 0.8 |
|---|---|---|---|
| Heat Treatment: | Carburizing | Pitch Angle: | 52°7'48” |
| Root Angle: | 53°25'43" | Face Width: | 220 |
| Highlight: | 48T conical gear,Spiral Helical Gear 14.117 Module,ISO 6-7 Spiral Helical Gear |
||

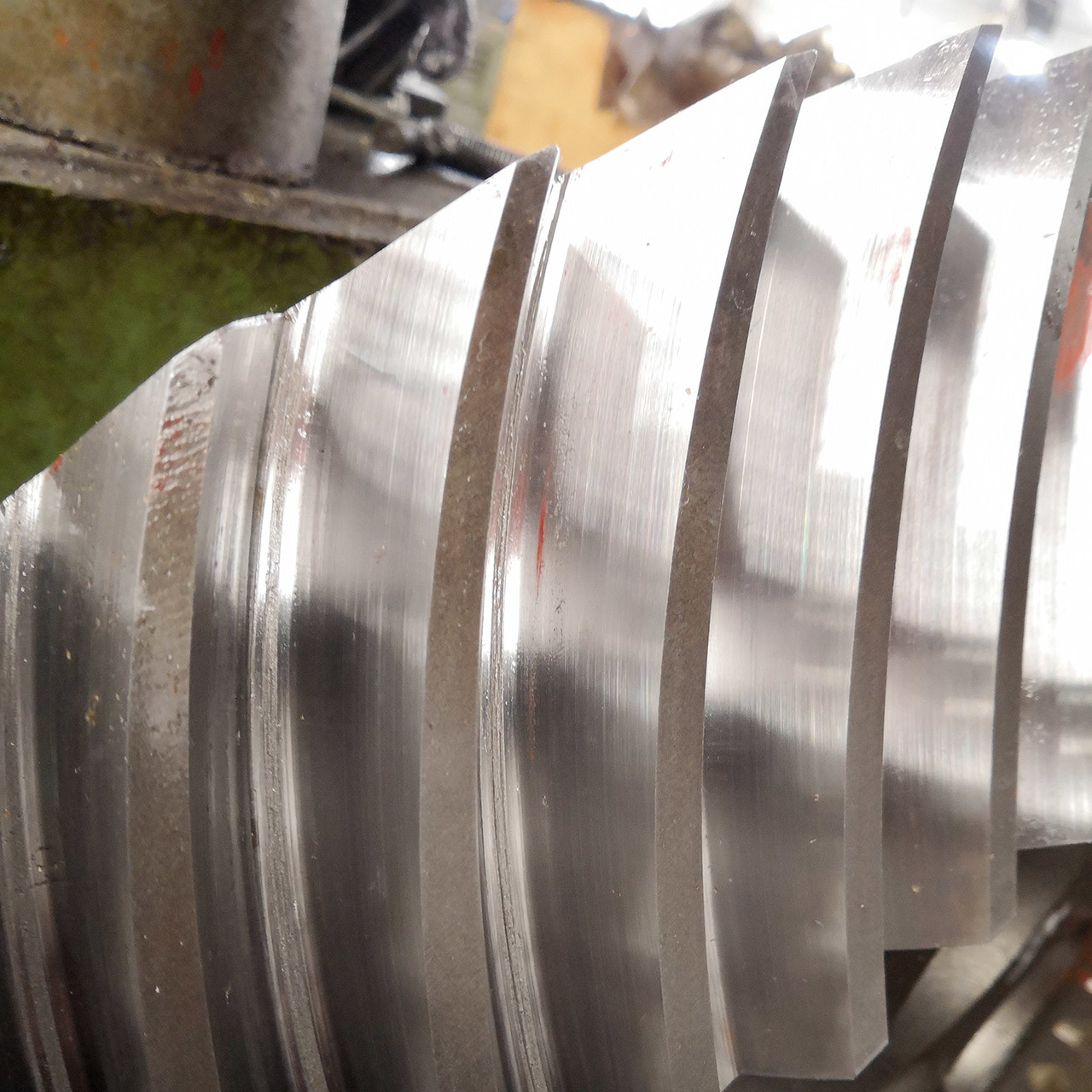

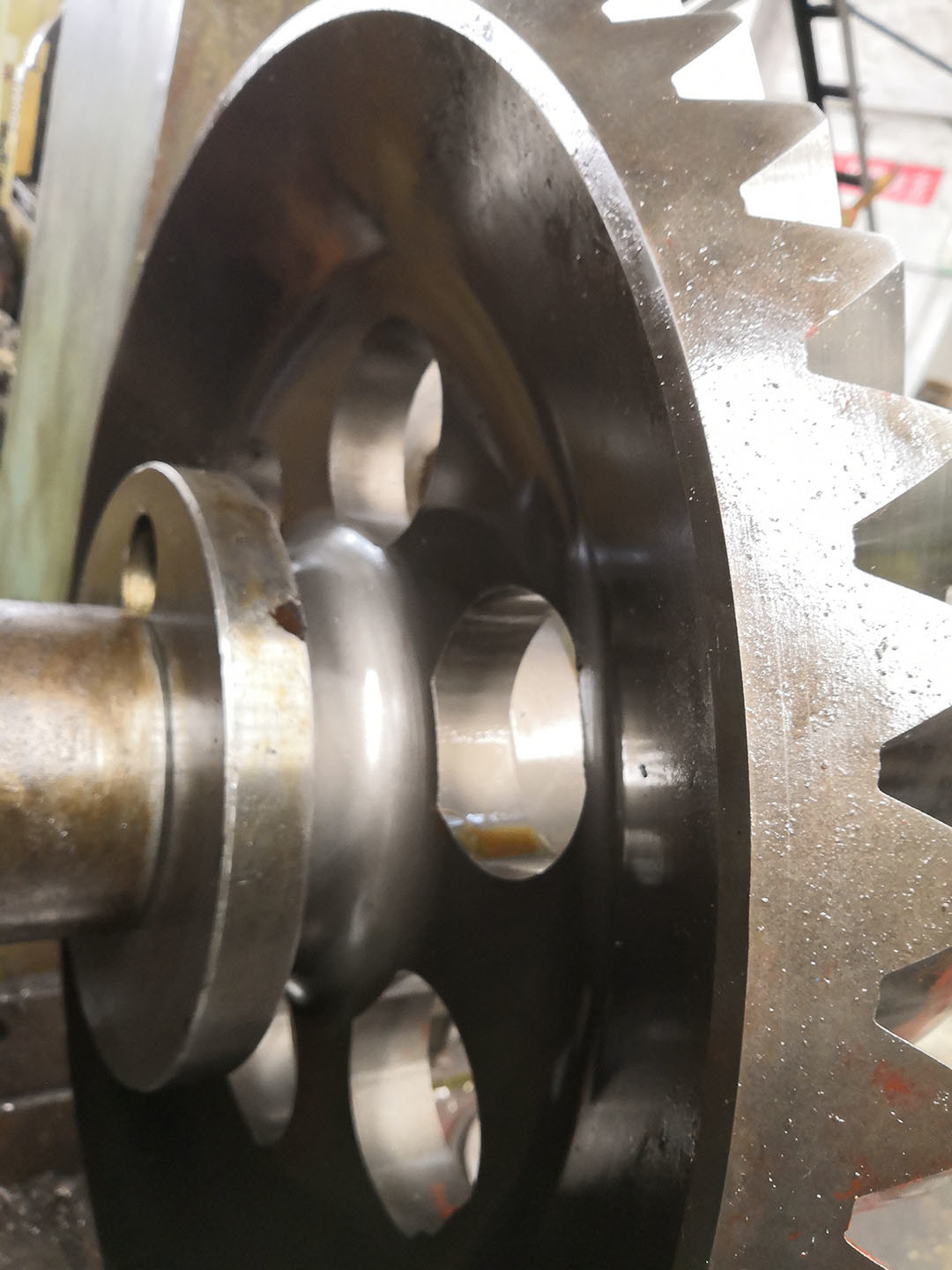

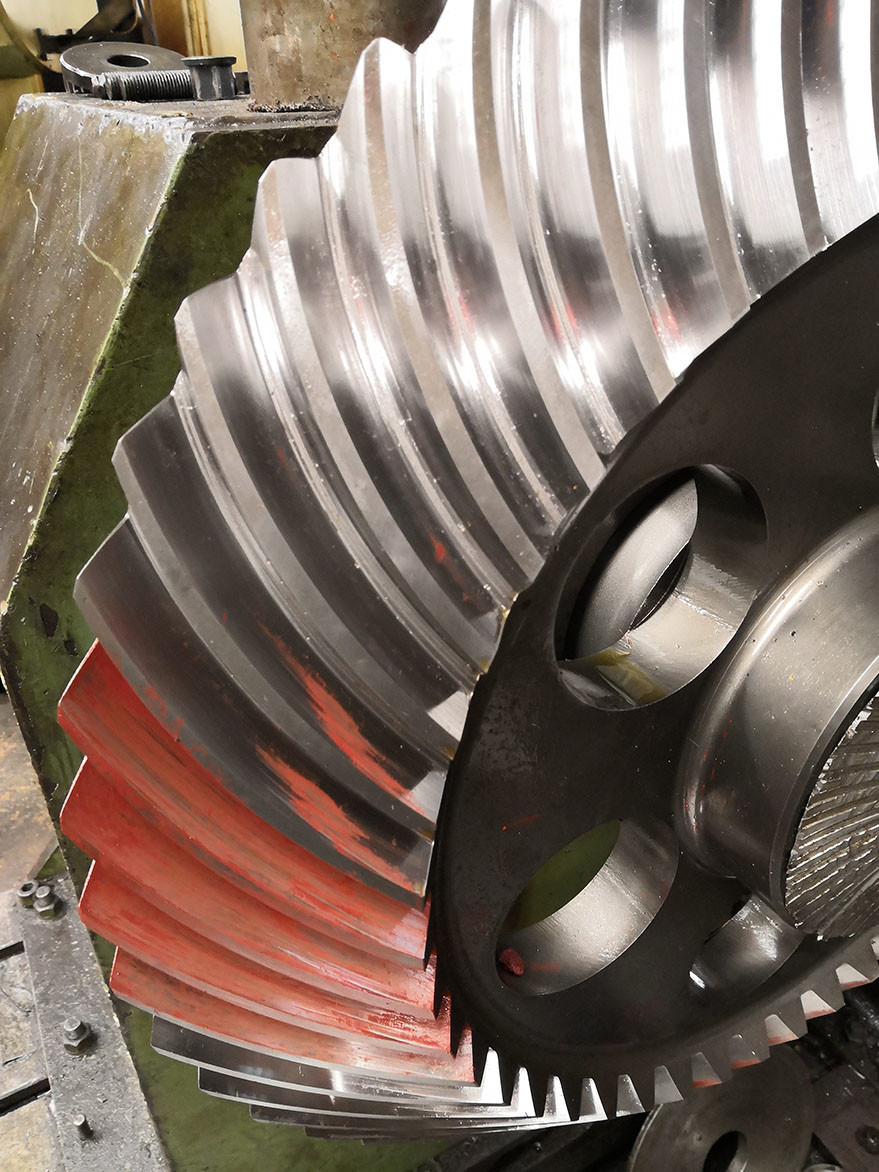

1) Description of Spiral Bevel Gears
Spiral Bevel gears are conical gears with helical teeth.
The most important application of this transmissionis in applications, similar to the differential of a car,
where the drive angle is shifted by 90 degrees.
The spiraldesign produces less vibration and noise than conventional straight model or straight cut gear with straight teeth.
2) Features of Spiral Bevel Gear
A spiral bevel gear has teeth cut in helical form with the pitch surface being conical.
This results in a reduction in noise and vibration through the gradual engagement of spiral teeth with the
contact starting at one end of a gear tooth and progressively spreading across the whole tooth flank.
| Products | Spiral Bevel Gear Set |
| Custom Made | √ |
| Material | SAE 4320/ 20CrNi2MoA |
| Gear Teeth Manufacturing | Gear Milling & Gear Teeth Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 14.117 |
| Number of Teeth (Z) | 37 |
| Pressure Angle (α) | 20° |
| Lead Angle | 35° |
| Accuracy Grade | ISO 6- 7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
