Double Helical Gears
>
|
|
| Place of Origin | CHINA |
| Brand Name | YIZGEAR |
| Model Number | DB22082401 |

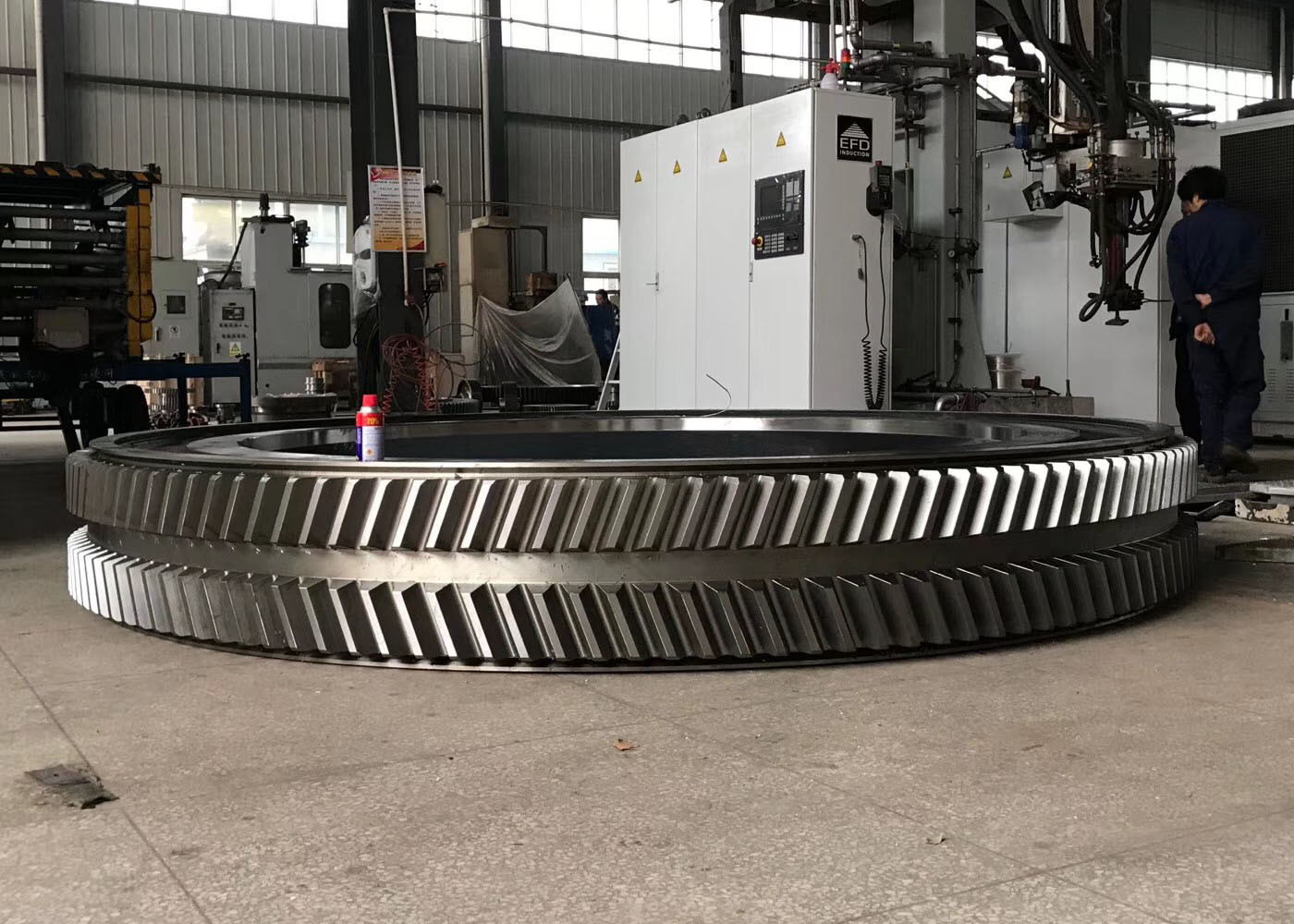

Forged Steel SAE 4340 Doubel Helix Gear Wheel-Double Helical Gears
Double helical gear with helical teeth on both the left and right sides.
The double helix shape balances the inherent thrust forces.
Double helical gears are widely used in heavy industry where thrust forces need to be eliminated.
The rotational speed is generally not high for double helical gears.
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Cylindrical Gear |
| Manufacturing Process | Gear Milling & Gear Teeth Hobbing |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | 97 |
| Pressure Angle (α) | 20° |
| Lead Angle | 23° |
| Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 260-300HB |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
