| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS22082503 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $850.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, D/P, Western Union, T/T |
| Supply Ability: | 300 Pieces/Month |
| Material: | DIN 17CrNiMo6 | Pitch: | 43.982 |
|---|---|---|---|
| Helix Angle: | 8° | Quality Grade: | ISO 6 Grade |
| Teeth Width: | 100 Mm | Addendum Factor: | 1 |
| Highlight: | DIN 17CrNiMo6 Transmission Gear Shaft,Helical Transmission Gear Shaft,DIN 17CrNiMo6 helical gear shaft |
||

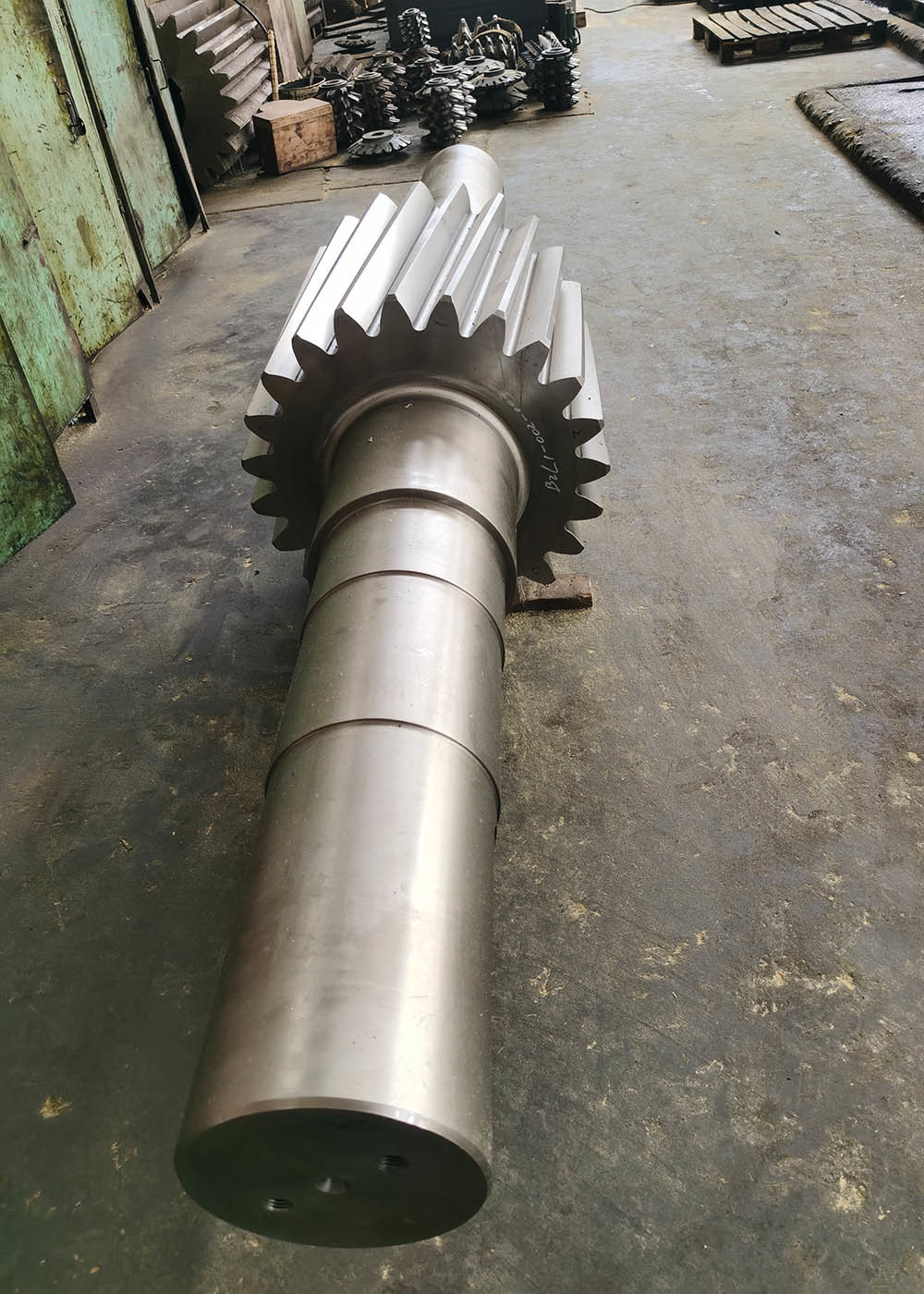

Transmission Gears DIN 17CrNiMo6 Forging Steel Helical Gear Driven Shaft
1) Description of Gear Shaft
A gear shaft with the gearing curves at each section is introduced as intersecting shaft gears. Spiral Bevel
gears are common examples of the gear profiles used on these forms of accurate-made shafts.
In their most common format, gears are toothed, round instruments enabling the transformation of engine
speed into torque. Gears are either connected to or are a section of a gear shaft. Many of the more typical
gears will include a hole in their center, introduced as a bore through which the gear shaft is mounted.
Once the gear shaft is circulated, the gear also moves.
| Products | Left Hand Helical Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth Manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 14 |
| Number of Teeth (Z) | 23 |
| Pressure Angle (α) | 20° |
| Lead Angle | 23° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
