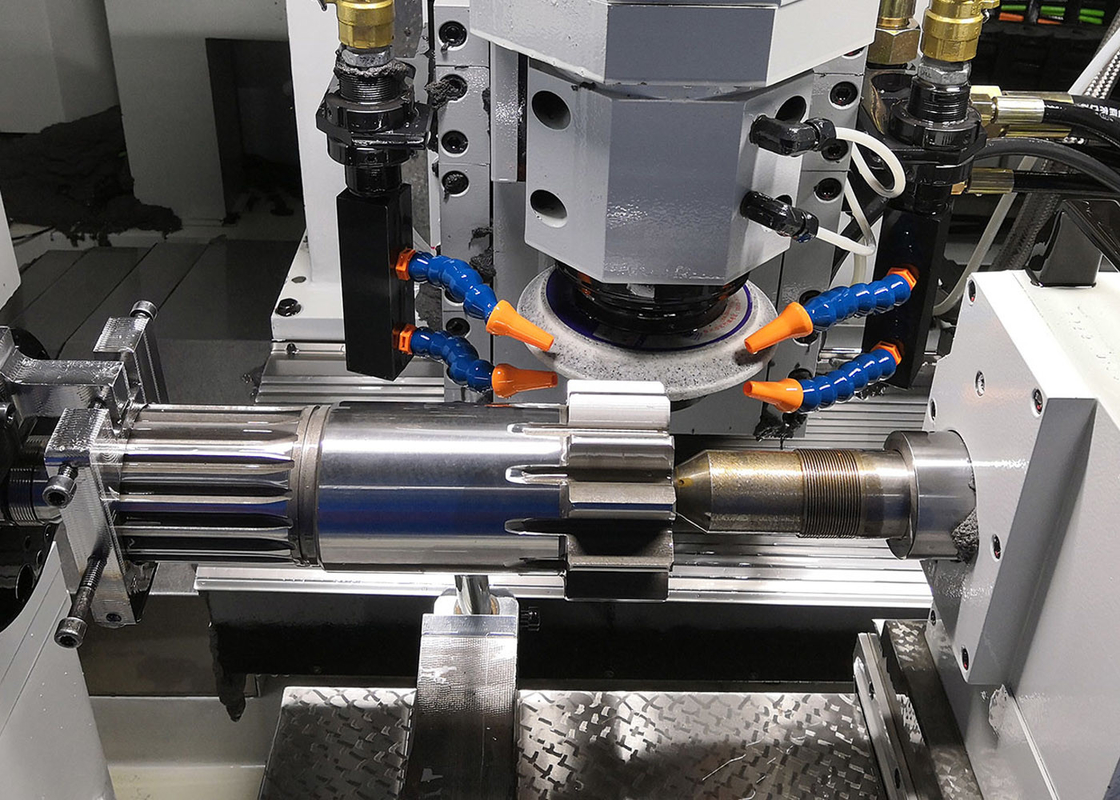

Transmission Gear Shaft
>
|
| Place of Origin | CHINA |
| Brand Name | YIZGEAR |
| Model Number | GS22082504 |
A gear shaft is the axle of the system, supplying the rotation that permits one gear to engage with and turn another.
The procedure is always known as gear reduction and is vital to transmitting horsepower from theengine to the drive controller.
The transformation of the engine speed into the torque is what supplies the driving load powering, for instance, the wheels of an automobile.
Some various types of gear shafts are coupling-gear shafts, eccentric shafts, keyed shafts, and splined shafts.
Gears employed in a heavy-duty case will most probably be made from sturdy metal.
| Parameter | Specification |
|---|---|
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Milling/Gear Hobbing/Gear Shaping |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
