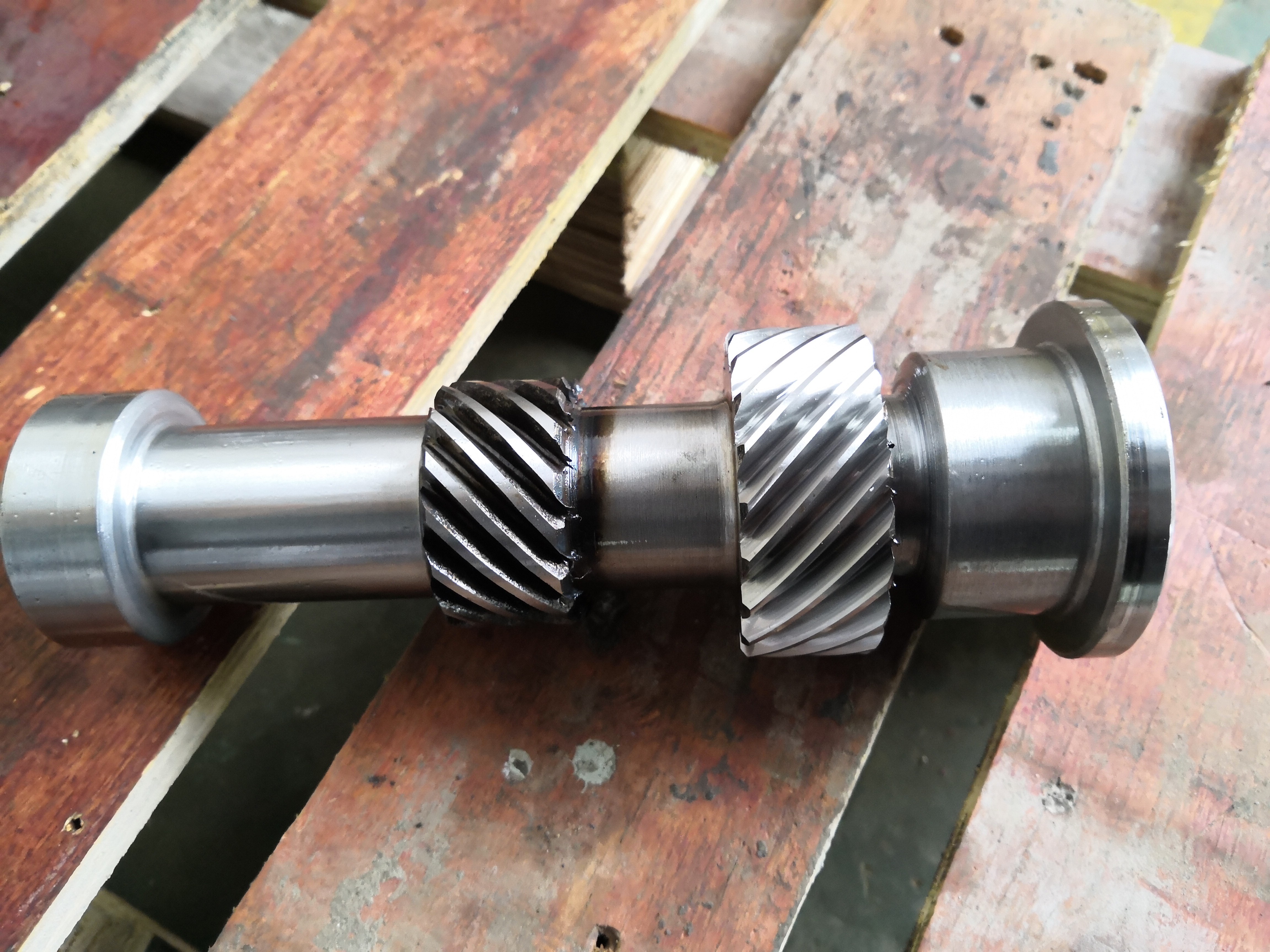

2 Module Transmission Gear Shaft 45 Degree Helix Angle 135mm Length

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Model Number: GS22082505
Minimum Order Quantity: 5 Pieces
Price: $35.0/Piece
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, D/P, Western Union, T/T
Supply Ability: 300 Pieces/Month
Detail Information
Module: 2 Tip Diameter: 45
Teeth Width: 30mm Heat Treatment: Cement
Helix Angle: 45° Length: 135
Highlight:

2 Module Transmission Gear Shaft

,

45 Degree Helix Transmission Gear Shaft

,

135mm Length Helix shaft


Product Description

2 Module 45° Helix Angle Helical Gear Gear Shaft Transmission Spare Parts
1) Description of How gear shaft Work
A gear shaft is the axle of the gear, providing the rotation that allows one gear to engage with and turn another.
The process is often known as gear reduction and is essential to transferring horsepower from engine to
drive mechanism. The conversion of engine speed into torque is what provides the driving force powering,
for example, the wheels of an automobile. Through the gears and shafts in an automobile transmission,
the engine is able to run at a constant speed, while the auto wheels can be run faster or slower, or even
in reverse, using the same engine rotational direction and speed.


ProductsHelical Gear Shaft
Custom Made
Gear Profile TypeCylindrical Gear
Gear Teeth ManufacturingGear Milling/Gear Hobbing/Gear Shaping
Gear Teeth Grinding
Module (M)4.5
Number of Teeth (Z)17
Pressure Angle (α)15°
Lead Angle
Accuracy GradeISO 6-7 Grade
Heat TreatmentCarburizing
Surface Hardness58-62HRC



STEEL CODE GRADES COMPARISON
CHINA/GBISOГΟСТASTMJISDIN
45C45E4451045S45CCK45
40Cr41Cr440X5140SCr44041Cr4
20CrMo18CrMo420ХМ4118SCM2225CrMo4
42CrMo42CrMo438XM4140SCM44042CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo20CrNiMo220XHM8720SNCM22021NiCrMo2
40CrNiMoA 40XH2MA/
40XHMA
4340SNCM43940NiCrMo6/
36NiCrMo4
20CrNi2Mo20NiCrMo720XH2MA4320SNCM420


2 Module Transmission Gear Shaft 45 Degree Helix Angle 135mm Length 0
