| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS22082506 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $35.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, D/P, Western Union, T/T |
| Supply Ability: | 300 Pieces/Month |
| Module: | 2 | Manufacture: | Gear Hobbing |
|---|---|---|---|
| Teeth Width: | 30mm | Teeth Number: | 14 |
| Gear Type: | Spur Gear | Hardness: | 58-62 HRC |
| Highlight: | Straight Sided Splines spur pinion shaft,Straight Sided Splines Pinion Gear Shaft,Gearbox Speed Reducers spur pinion shaft |
||

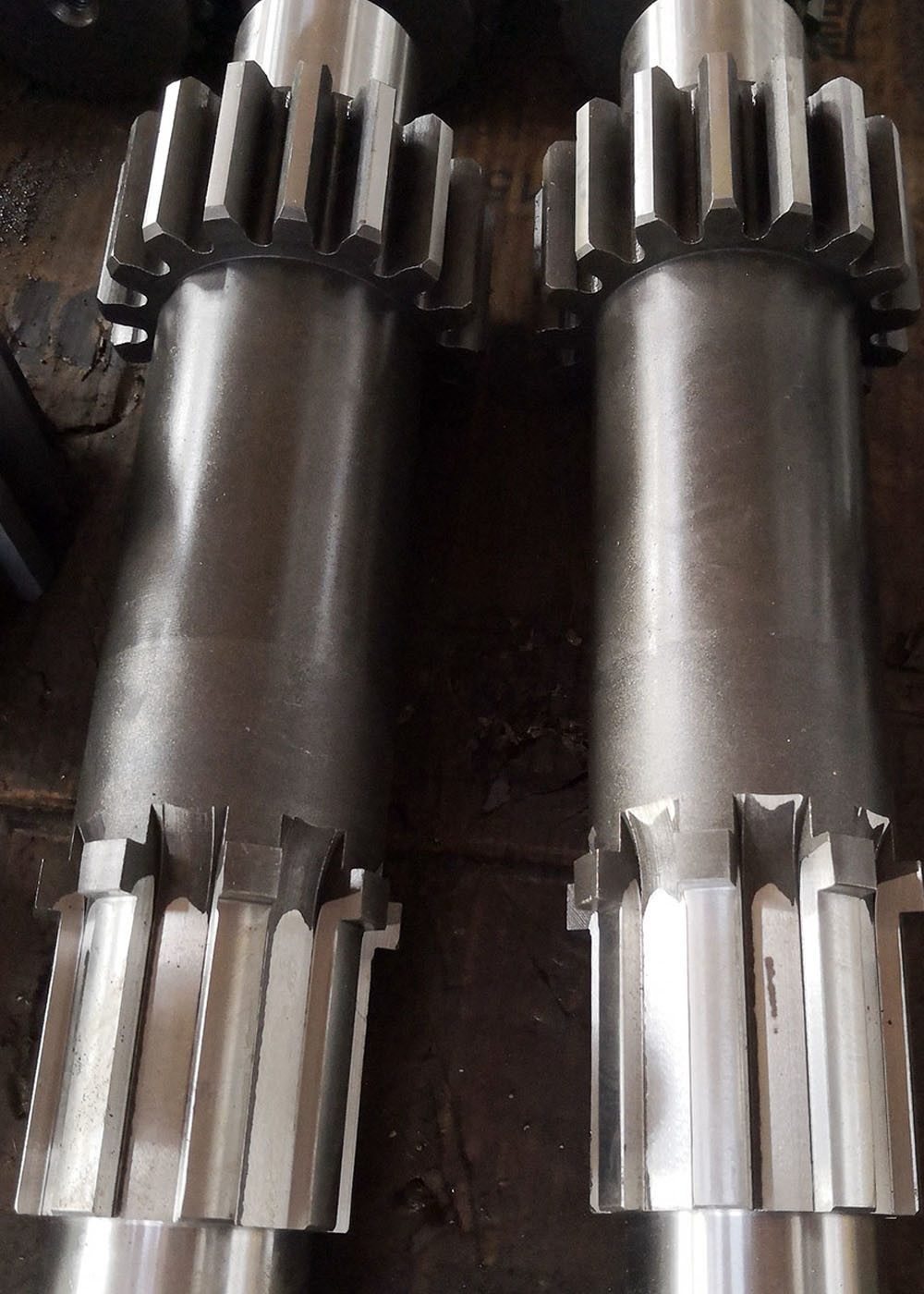

Pinion Spur Gear Shaft With Straight Sided Splines For Gearbox Speed Reducers
1) Descripción del eje del engranaje recto
El eje del engranaje recto es una pieza de transmisión del eje con engranaje recto.
El engranaje recto es un engranaje de forma cilíndrica.
El engranaje recto es el engranaje más comúnmente utilizado con una amplia gama de aplicaciones.
2) Características del eje del engranaje recto
Más fácil de fabricar en comparación con otros tipos de engranajes de transmisión.
Más ampliamente utilizado en el diseño de sistemas de transmisión.
| Products | Helical Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth Manufacturing | Gear Milling/Gear Hobbing/Gear Shaping |
| Gear Teeth Grinding | √ |
| Module (M) | 2 |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | 20° |
| Lead Angle | 0° |
| Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA | 4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
