Helical Spline Transmission Gear Shaft 18CrNiMo7 Forged Steel

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Model Number: GS22082507
Minimum Order Quantity: 5 Pieces
Price: $200.0/Piece
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, D/P, Western Union, T/T
Supply Ability: 300 Pieces/Month
Detail Information
Material: 18CrNiMo7 Heat Treatment: Carburizing
Hardness: 58-62 HRC Quality Grade: ISO 6-7 Grade
Profile Type: Cylindrical Gear Length: 515mm
Highlight:

18CrNiMo7 Transmission Gear Shaft

,

Helical Spline Transmission Gear Shaft

,

18CrNiMo7 helical spline shaft


Product Description

18CrNiMo7 Froged Steel Transmission Parts Gear Ground Right Hand Helical Gear Shaft

1) Features of the Helical Gars

The inclined angle of the teeth also causes sliding contact between the teeth, which produces axial forces and heat, decreasing efficiency.

These axial forces play a significant role in bearing selection for helical gears.

Because the bearings have to withstand both radial and axial forces, helical gears require thrust or roller bearings, which are

typically larger (and more expensive) than the simple bearings used with spur gears.

The axial forces vary in proportion to the magnitude of the tangent of the helix angle.

Although larger helix angles provide higher speed and smoother motion, the helix angle is typically limited to 45 degrees

due to the production of axial forces.



Products Spur Gear/ Spline
Custom Made
Gear Profile Type Cylindrical Gear
Gear Teeth Manufacturing Gear Milling/Gear Hobbing/Gear Shaping
Gear Teeth Grinding
Module (M) Custom
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Lead Angle 13°
Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRC

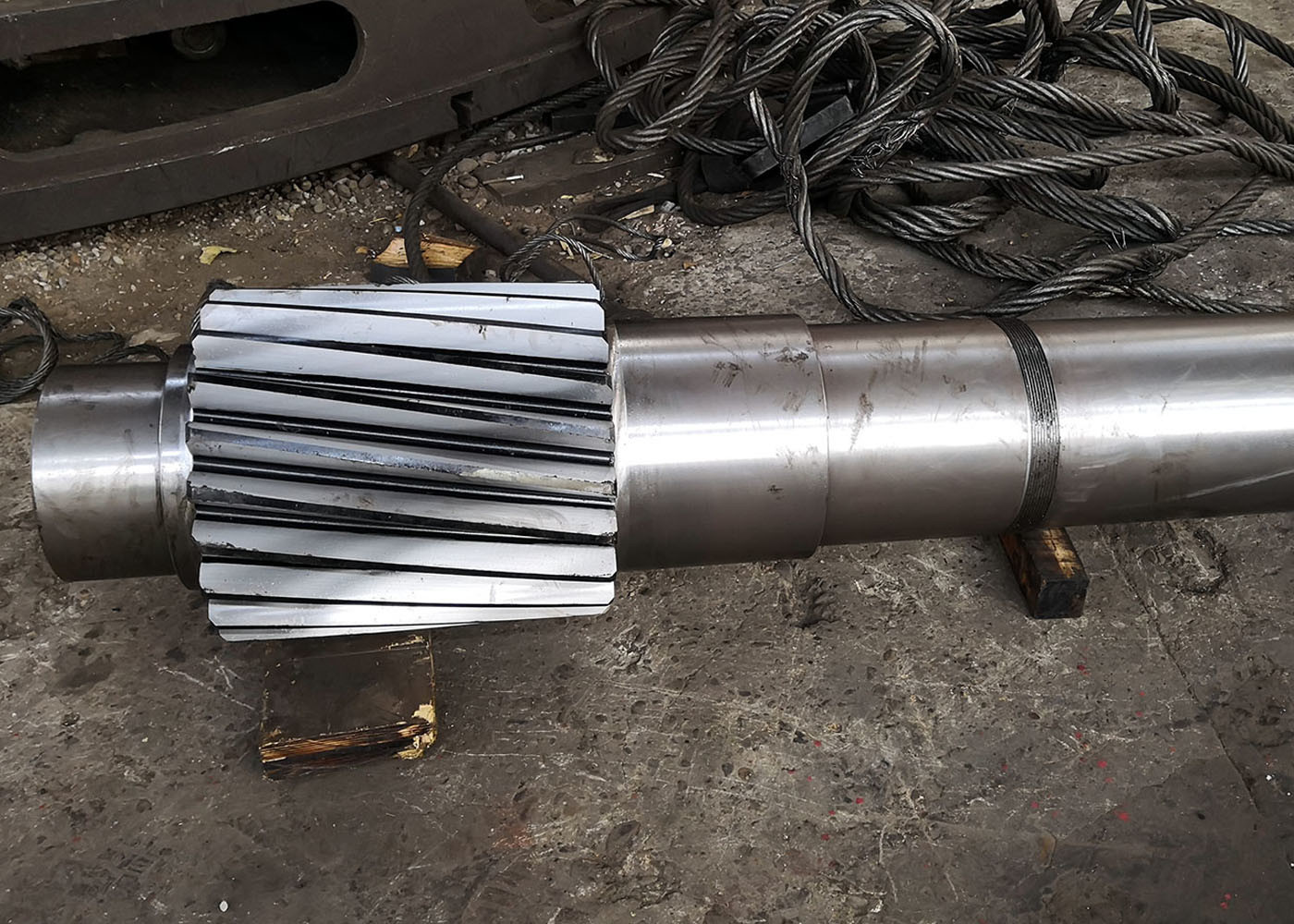

Helical Spline Transmission Gear Shaft 18CrNiMo7 Forged Steel 0
