| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS220082602 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $50.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Material: | 20CrMnTi | Manufacture: | Spline Ground |
|---|---|---|---|
| Hardness: | 58-62 HRC | Module: | 1.5 |
| Spline Teeth No: | 11 | Heat Treatment: | Cement |
| Highlight: | 20CrMnTi Spline Input Shaft,20CrMnTi involute spline shaft,Alloy Steel Involute Spline Input Shaft |
||

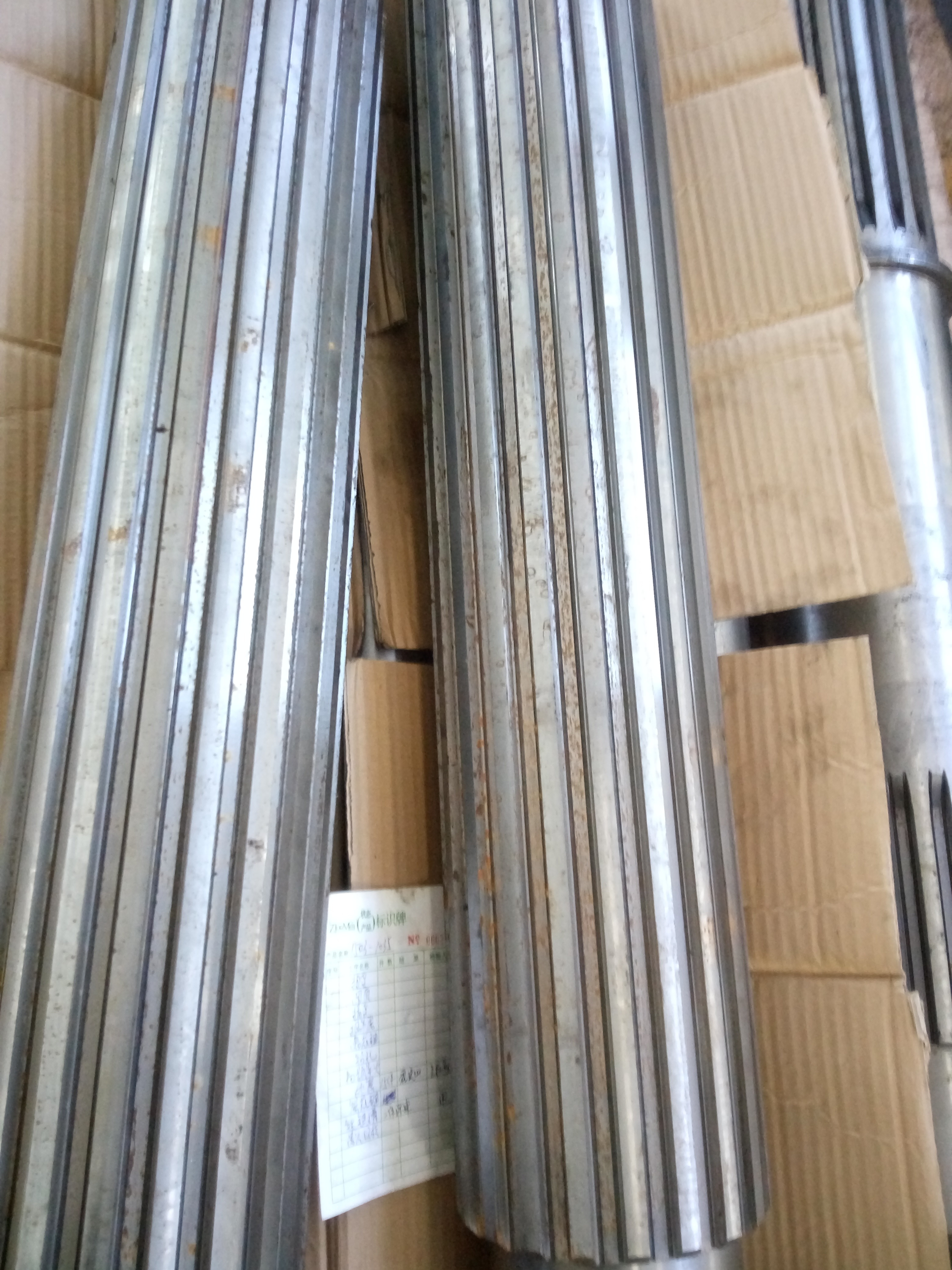

Customized Alloy 20CrMnTi Steel Spline Ground Involute Spline Input Shaft
1) Applications of Spline Shaft
Heavy Machinery: Spline shafts are frequently used in automobiles, aviation, and earth moving machinery
as they can handle high rotation speeds to deliver torque. Unlike alternative shafts like key shafts,
spline shafts can deliver more torque due to the even distribution of the load across all the teeth or grooves.
2) Manufacture Stadnard of Splines
The splines can be manufactured according to following standard
a) ANSI B92-1-1996
b) DIN 5480
c) DIN 5482
d) NF E22-141
| Products | Rectangular Spline Shafts |
| Custom Made | √ |
| Gear Profile Type | Spline |

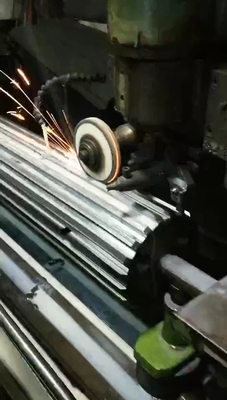

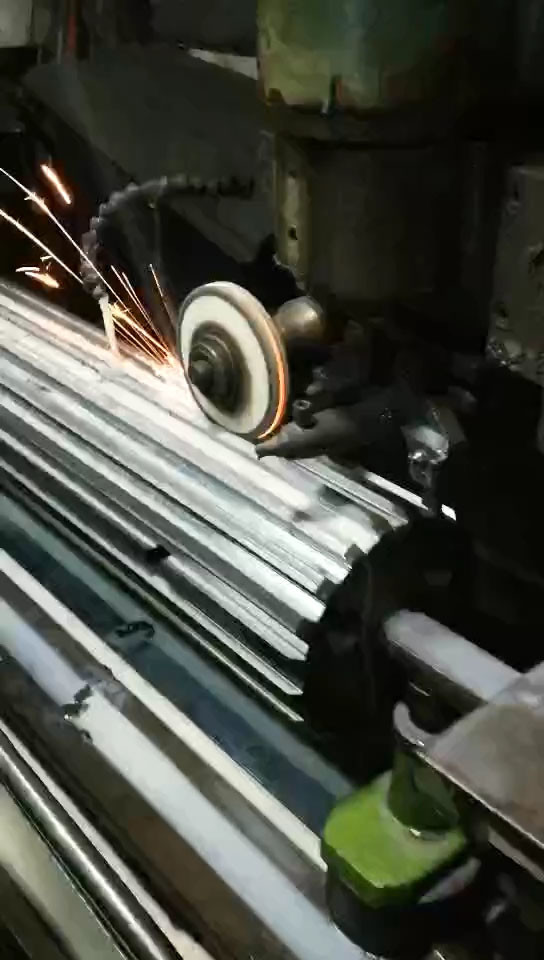

| Gear Teeth manufacturing | Spline Milling/Spilne Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Custom | 30° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
