| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | DB22072802 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $1000/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 100 Pieces/Month |
| Material: | Forged Steel | Profile Type: | Double Helical Gear |
|---|---|---|---|
| Heat Treatment: | Quenching & Tempering | Hardness: | 260-300 HB |
| Manufacture: | Gear Hobbing | Quality Grade: | ISO 8-9 |
| Highlight: | AISI 4140 Double Helical Gears,Double helical gear wheel 300 HB,Helical Gears Wheel Gear Hobbing |
||

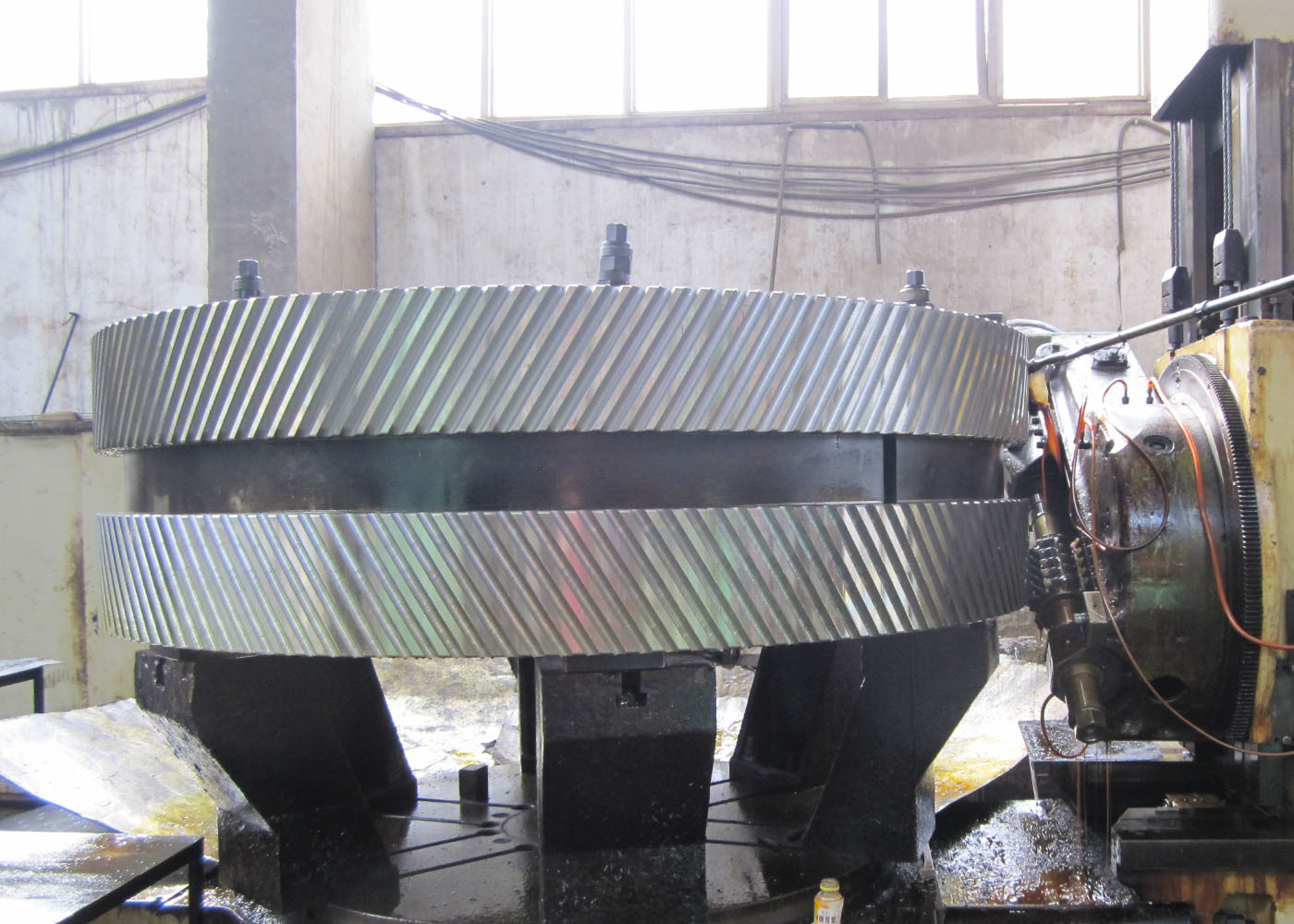

Forged Steel AISI 4140 Gear Hobbing Doubel Helical Gear Wheel-Double Helical Gears
1) Features of Double Helical Gears
a) Double Helcial gear opposite thrust reactions thus cancel out the thrust force within the gear itself.
b) The net axial force that acts on the bearings is zero.
c) Power transmitting capacity is very high.
d) By using this high pitch line velocities can be attained.
2) Description of double helical gear
Double helical gear with both left hand and right hand helical teeth.
The double helical form balances the inherent thrust froces.
| Products | Double Helical Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Manufacturing | Gear Milling |
| Teeth Grinding | √ |
| Module (M) | Custom Made |
| Number of Teeth (Z) | 152 |
| Pressure Angle (α) | 20° |
| Lead Angle | 23° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 260-300HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
