| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | DB22083002 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $600/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 100 Pieces/Month |
| Material: | SAE 4340 | Profile Type: | Double Helical Gear |
|---|---|---|---|
| Heat Treatment: | Quenching & Tempering | Hardness: | 260 HB |
| Manufacture Method: | Gear Hobbing | Module: | 8 |
| Highlight: | SAE 4340 Doubel Helical Gear Shaft,8 Module Helical Pinion Shaft,SAE 4340 Steel Helical Pinion Shaft |
||

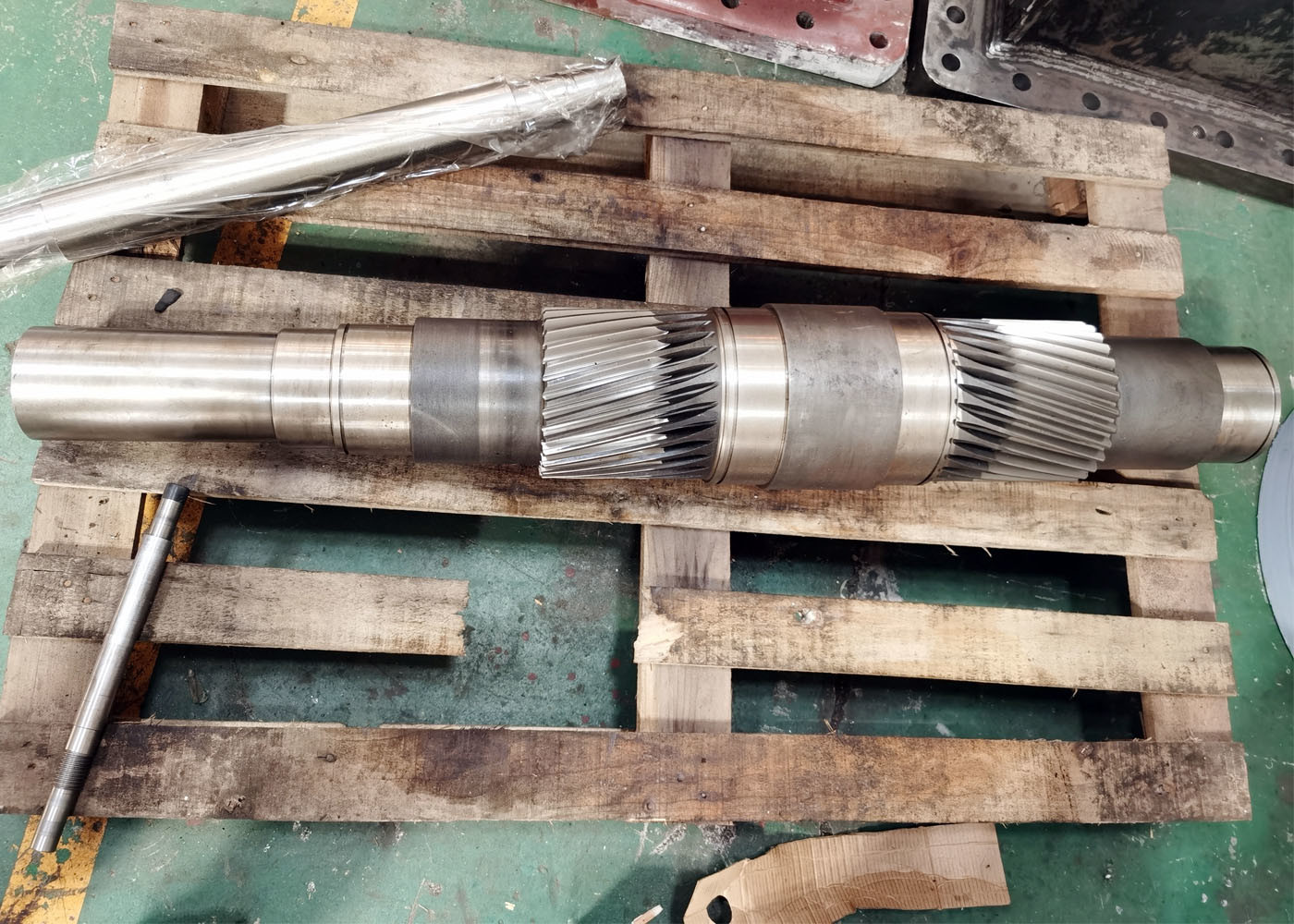

Forging Steel SAE 4340 Steel Doubel Helical Gear Shaft For Heavy Duty Applications
1) Aplicaciones de engranajes de doble hélice
Los engranajes de doble hélice son adecuados para requisitos de transmisión de alta potencia, como en grúas, transmisiones marinas o turbinas.
2) Características del engranaje de doble hélice
a) Dos engranajes helicoidales deben estar alineados con precisión, de lo contrario,
la fuerza de empuje no se equilibrará correctamente y la consecuencia será una vibración desfavorable.
b) Los engranajes de doble hélice pueden proporcionar una mayor eficiencia en comparación con los engranajes helicoidales simples.
| Products | Double Helical Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Manufacturing | Gear Hobbing |
| Teeth Grinding | √ |
| Module (M) | Custom Made |
| Number of Teeth (Z) | 26 |
| Pressure Angle (α) | 20° |
| Lead Angle | 25° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 260-300HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
