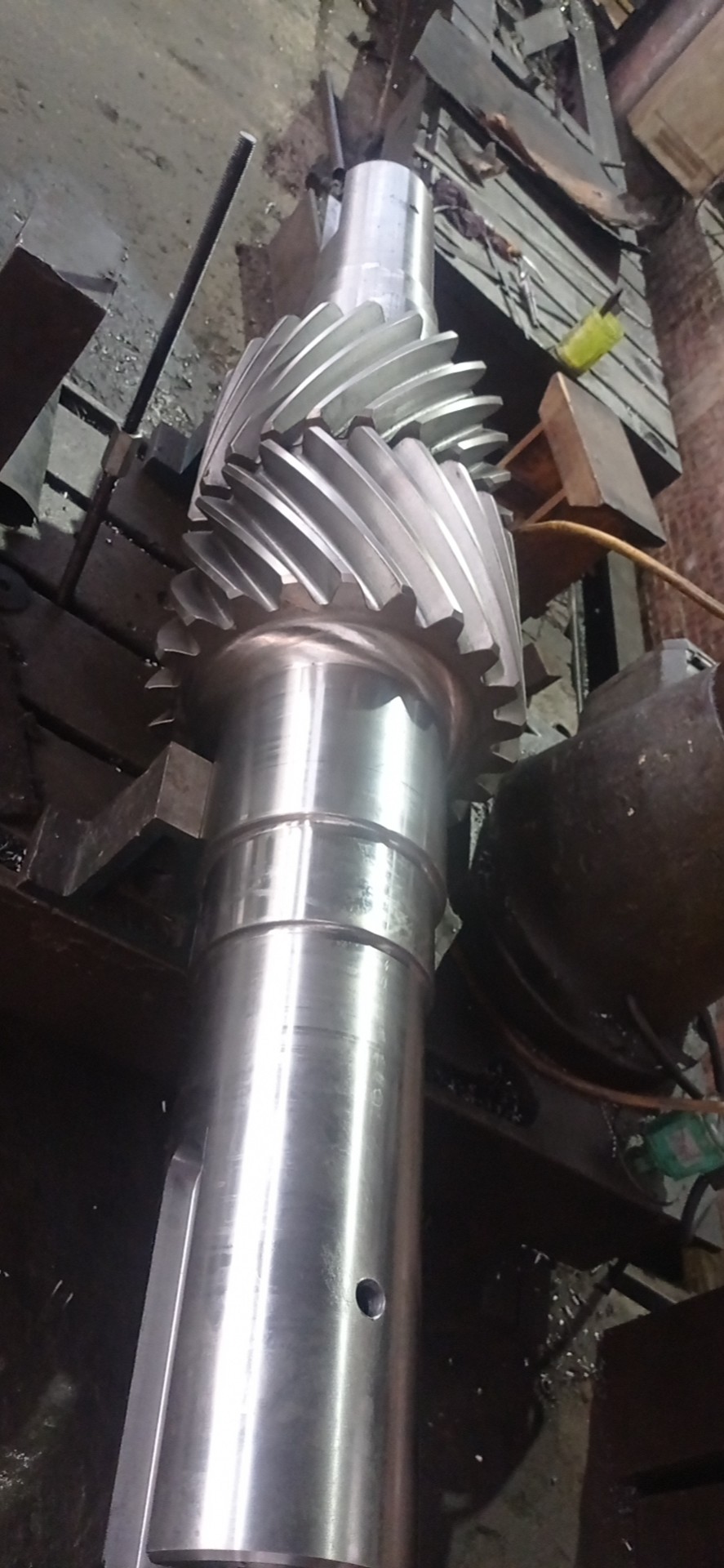

DP1.732 22T Double Helical Gear Shaft Helix Angle 30° SAE 4340 Steel

Place of Origin	CHINA
Brand Name	YIZGEAR
Model Number	GS22112401

Product Details

Material:

40CrNiMo

DP:

1.732

Helix Angle:

30°

Profile:

Double Helix

Teeth Width:

11"

Pressure Agnle:

20°

Highlight:

Double Helical Gear Shaft Helix

DP1.732 Transmission Gear Shaft

Transmission Gear Shaft 40CrNiMo

Payment & Shipping Terms

Minimum Order Quantity

2 Pieces

Price

$1850.0/Piece

Packaging Details

Plywood Crate

Delivery Time

60 Days

Payment Terms

L/C, D/P, Western Union, T/T

Supply Ability

300 Pieces/Month

Product Description

SAE 4340 Steel DP1.732 22T Double Helical Gear Shaft Helix Angle 30°
1) Description of Gear Shaft
A gear shaft with the gearing curves at each section is introduced as intersecting shaft gears.
Spiral Bevel gears are common examples of the gear profiles used on these forms of accurate-made shafts.

Diametral Step: 1.5
Pressure Angle: 20°
Helix Angle: 30°
Pitch Diameter: 14.667"
Number of Teeth: 22

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Gleason
Manufacturing Process	Gear Grinding
Teeth Grinding	Included
Module (M)	Custom
Number of Teeth (Z)	Custom
Pressure Angle (α)	Custom
Lead Angle	Custom
Accuracy Grade	ISO 6 Grade
Heat Treatment	Carburizing
Surface Hardness	58-62HRC

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Production Equipment
