| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SS23051101 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 1000 Pieces/Month |
| Profile Type: | Sun Gear | Description: | Output Shaft |
|---|---|---|---|
| Length: | 525 | Spline Grinding: | Yes |
| Gear Module: | 5 | Sun Gear Teeth Number: | 22 |
| Highlight: | Output Spline Gear Shaft,17CrNiMo6 Spline Gear Shaft,62 HRC Spline Gear Shaft |
||

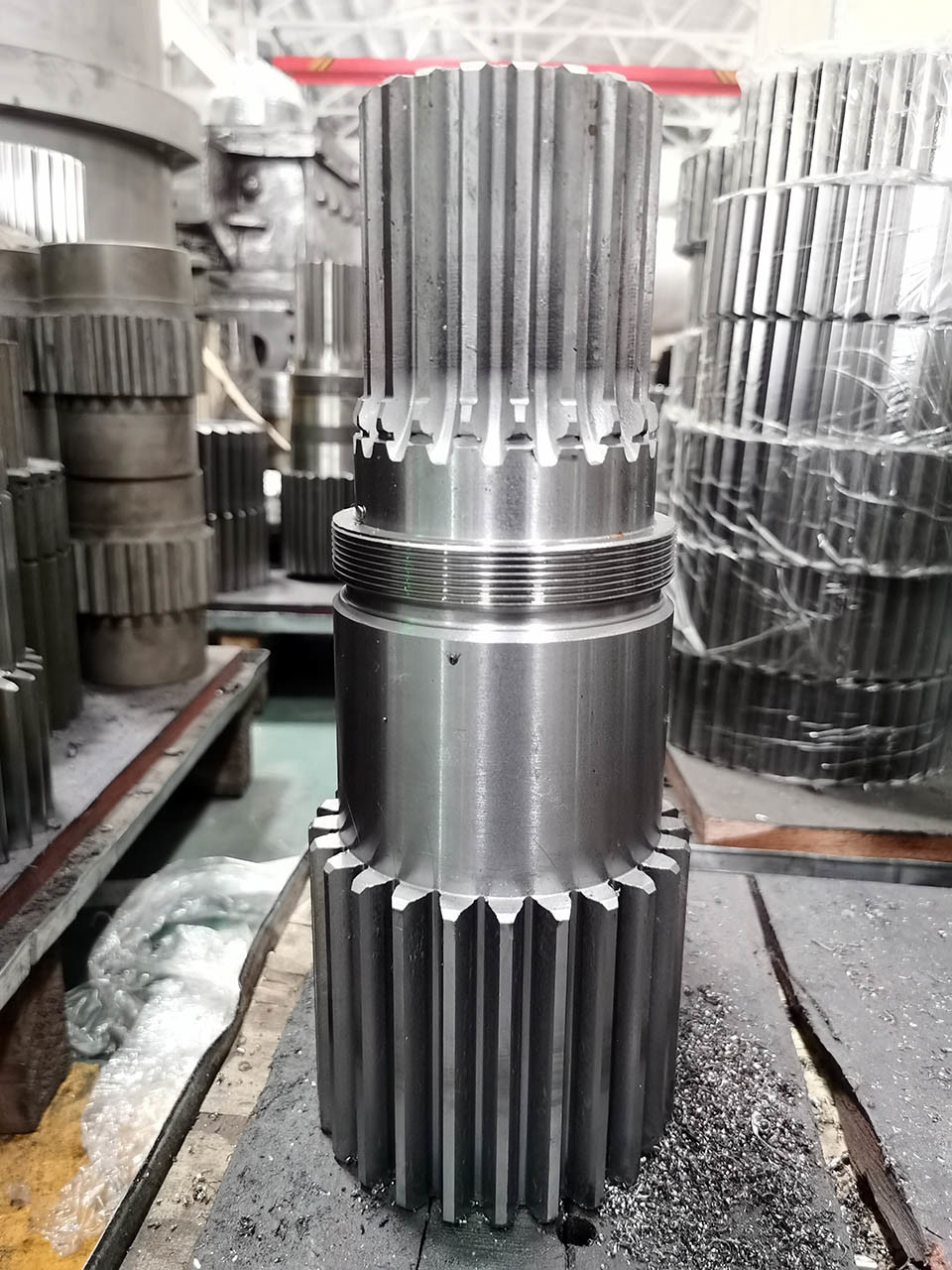

17CrNiMo6 Steel Sun Gear Output Gear Shaft With Involute Spline
Sun Gear Shaft with Involute Spline
Forging 17CrNiMo6 Steel
Material Certificate
Heat Treatment Report
UT Report
Dimension Report
Gear Grinding
Spline Grinding
| Products | Spur Gear/ Sun Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Spline Milling/Spilne Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 5 |
| Number of Teeth (Z) | 22 |
| Custom | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
