| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YZGEAR |
| Certification: | QC |
| Model Number: | BG23102502 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1300.0/Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 200 Sets/Month |
| Application: | Cone Crusher | Manufacturing Method: | Gear Shaping |
|---|---|---|---|
| DP: | 1.75 | Working Angle: | 90° |
| Hardness: | 58-62 HRC | Heat Treatment: | Carburizing |
| Highlight: | Carburizing straight bevel gear system,Straight Bevel Gear For Cone Crusher,62 HRC straight bevel gear system |
||

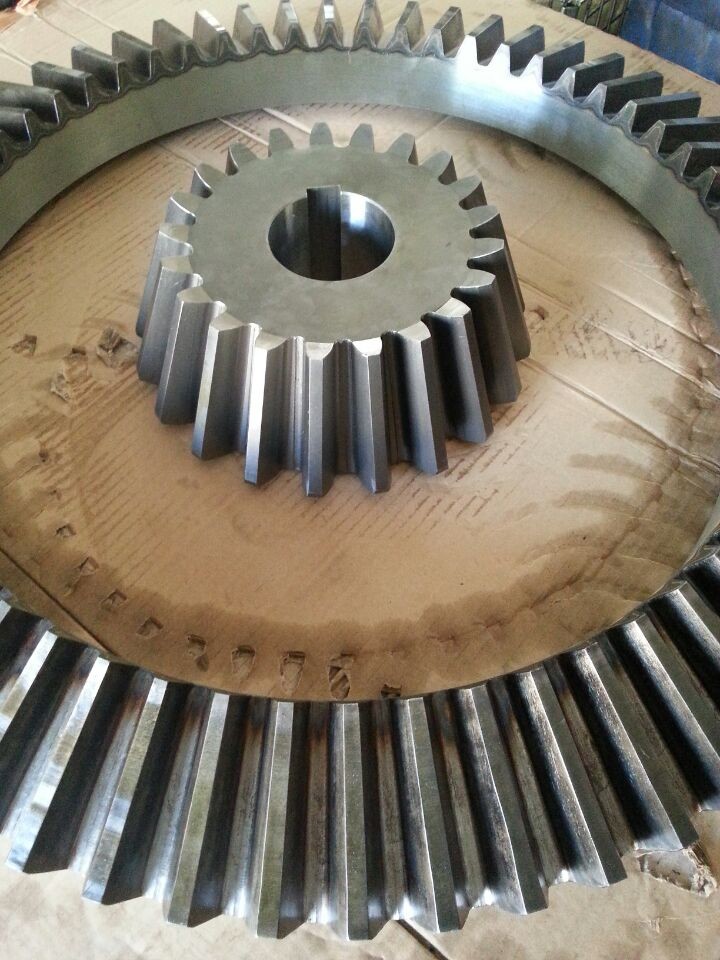

Pinion Straight Bevel Gear For Cone Crusher Mining Equipment
Power Transmission Efficiency: Straight bevel gears offer high power transmission efficiency due to their straight tooth configuration.
The teeth mesh smoothly and directly, minimizing friction and energy losses during operation.
They are capable of transmitting substantial torque loads and are suitable for heavy-duty applications.
Simple Manufacturing Process: Straight bevel gears are relatively straightforward to manufacture compared to other types of bevel gears.
The teeth can be cut using standard gear-cutting tools such as milling cutters or gear hobbing machines.
This simplicity makes them cost-effective and widely used in various industries.
| Products | Straight Bevel Gear |
| Custom Made | √ |
| Shaft Angle | 90° |
| Gear Teeth manufacturing | Gear Shaping |
| Gear Teeth Grinding | |
| Module (M) | 14.5 |
| Number of Teeth (Z) | 26/60 |
| Pressure Angle (α) | 20° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Carburizing/ Induction Hardending |
| Surface Hardness | Pinion 58-62 HRC Gear 50-55 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
