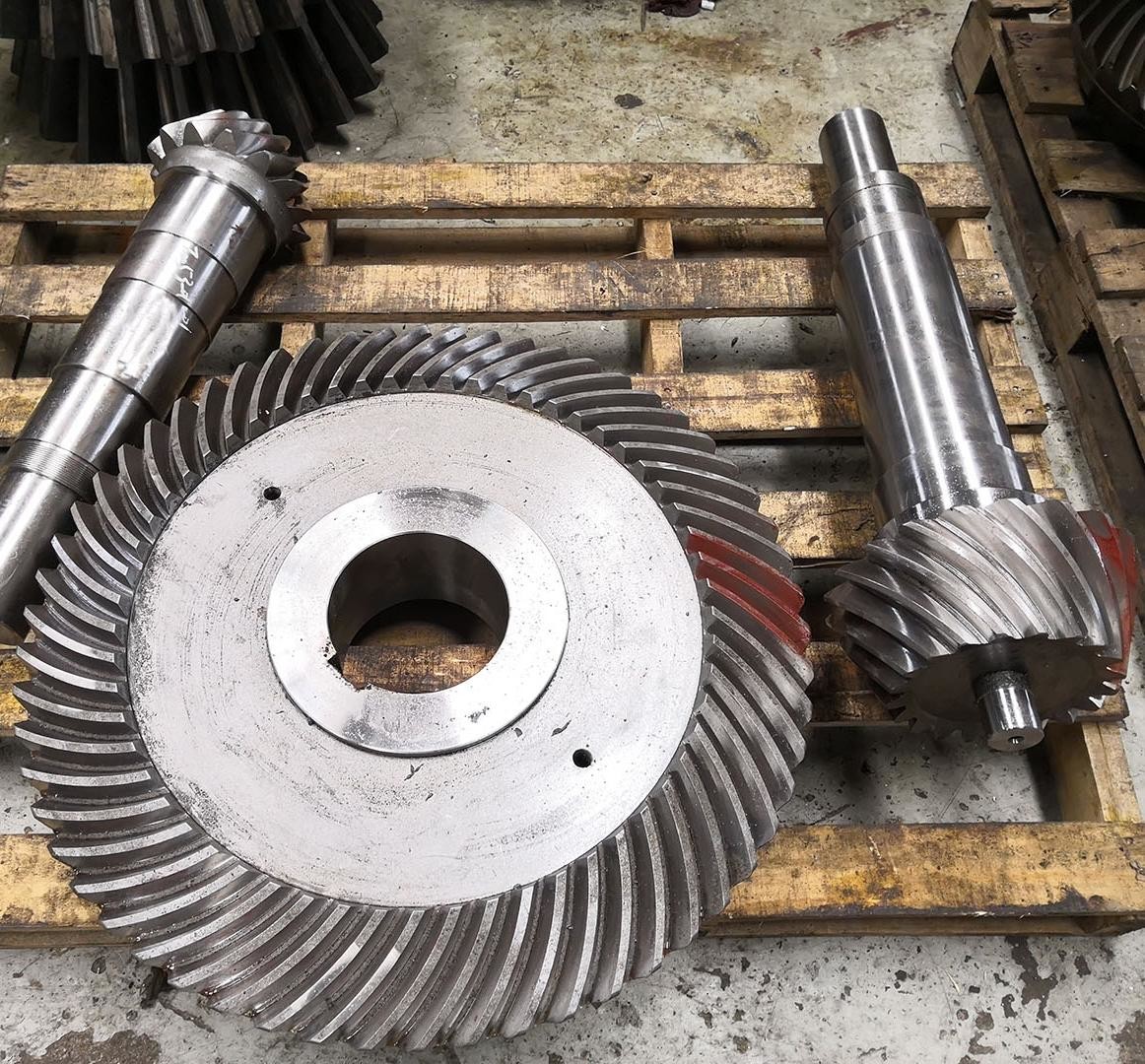

Spiral Bevel Gears
>
|
| Place of Origin | CHINA |
| Brand Name | YIZGEAR |
1) Features of Spiral Bevel Gear
a) The tooth profile is complex and requires precise processing with special machine tools (such as Gleason or Olicon machine tools).
b) The helix Angle can be adjusted (such as 35° or 0° zero-degree spiral bevel gears) to meet different requirements.
2) Advantages of Spiral Bevel Gear
a) High-precision transmission: It can meet strict industrial standards (such as AGMA, ISO).
b) Flexible design: The helix Angle can be optimized according to the working conditions to balance noise, load capacity and efficiency.
| Products | Spiral Bevel Gears |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Manufacturing | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | √ |
| Module (M) | 16 |
| Number of Teeth (Z) | 32 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
Production Equipment
Production Process
Forging Machining Cutting
Heat Treatment Grinding Inspection
