| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 2 Sets |
| Price: | 300＄ |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Manufacturing: | Gear Grinding | Accuracy: | ISO 6 |
|---|---|---|---|
| Profile Type: | Gleason | Modue: | 16 |
| Pressure Angle: | 20° | Quality Grade: | ISO 6-7 |
| Highlight: | High Durability Spiral Bevel Gears,Carburized Spiral Bevel Gears,58 HRC Spiral Bevel Gears |
||
1) Features of Spiral Bevel Gear
a) It is mainly used for power transmission where two shafts intersect (usually at 90°), such as the rear axle of a car and industrial gearboxes.
b) It performs exceptionally well in situations that require high reliability and low noise.
2) Advantages of Spiral Bevel Gear
a) Wide applicability: Covering multiple industries such as automobiles, aviation, ships, and machine tools.
b) High-efficiency power transmission: Compared with spur bevel gears, it has less friction loss and higher transmission efficiency (up to over 98%).
| Products | Spiral Bevel Gears |
| Custom Made | √ |
| Gear Profile Type | Gleason |

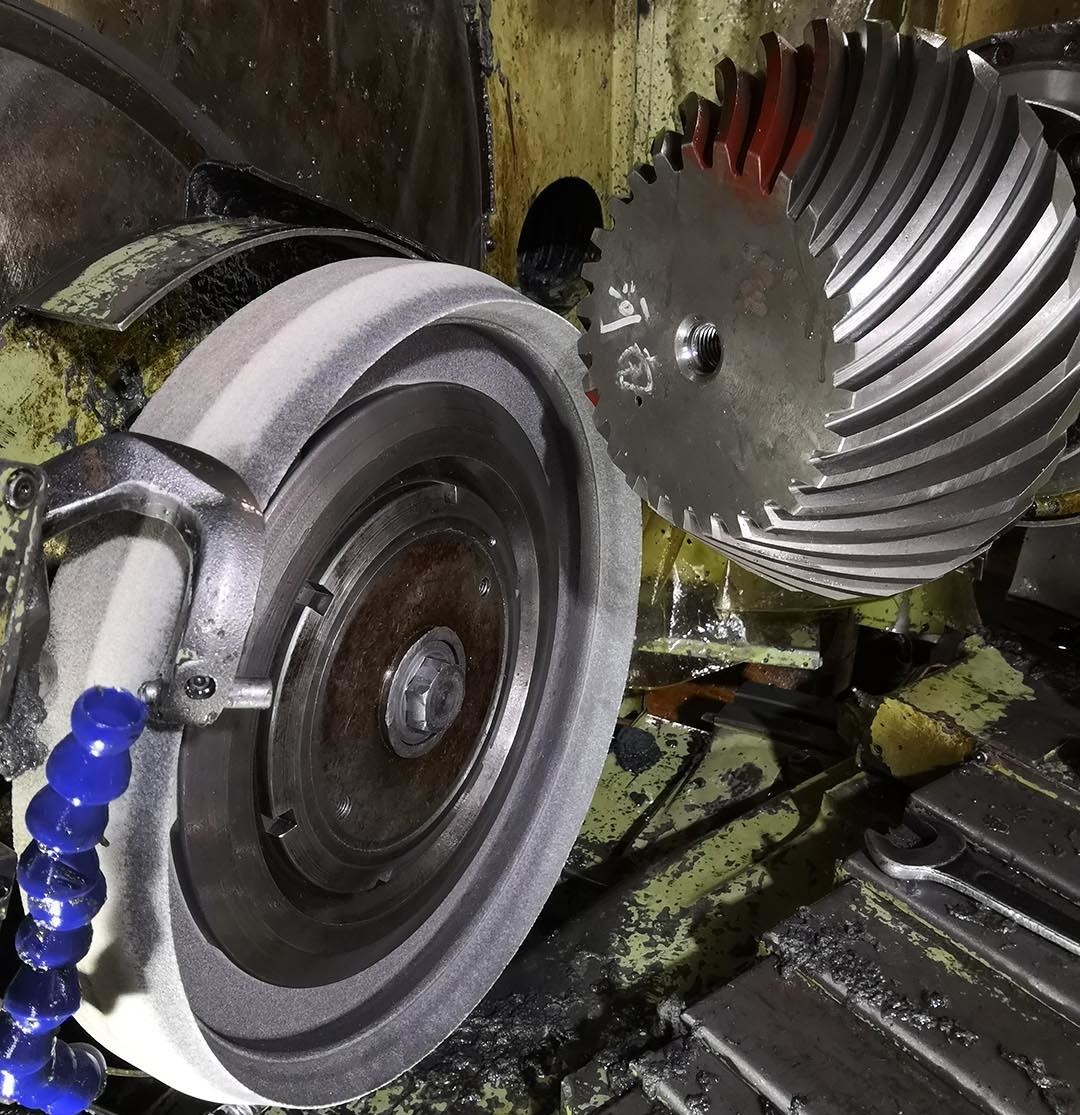

| Manufacturing | Gear Milling & Gear Teeth Grinding |
| Teeth Grinding | √ |
| Module (M) | 16 |
| Number of Teeth (Z) | 32 |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
