Manufacturing Method: | Gear Grinding | Tooth Accuracy: | ISO 6 Grade |
---|---|---|---|
Package: | Carton Box | Surface Finish: | Polishing |
Function: | Transmitting Power | Diameter: | Customized |
Highlight: | Gear Grinding Manufacturing Transmission Gear Shaft,Transmission Gear Shaft,Precise Transmission Gear Shaft |

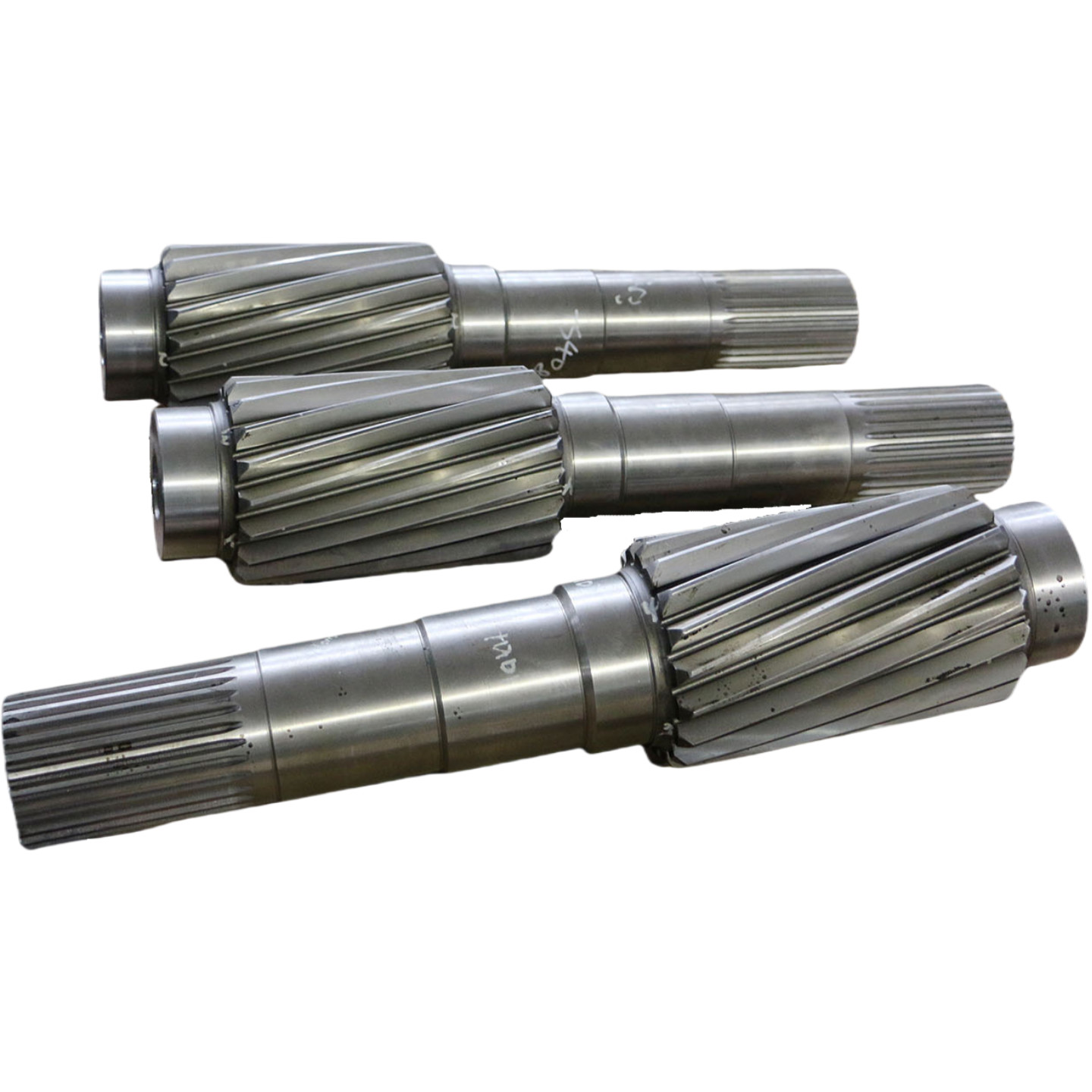

1) Descriptions of Transmission Gear Shaft
The transmission gear shaft is a key component in mechanical transmission systems that transfers torque
and motion through gear engagement. It is formed by integrating or combining the shaft body and the gears,
and it transmits the rotational motion from the power source to the actuating mechanism.
2) Features of Transmission Gear Shaft
a) Compact structure: Integrating the gears and the shafts reduces space occupation and optimizes the mechanical layout.
b) Precise transmission ratio: Through the precise design of gear tooth numbers, stable and predictable speed and torque conversion is achieved.
c) Same-axis transmission: The shafts and gears are arranged concentrically to ensure uniform force distribution
during the transmission process and reduce vibration.
3) Advantages of Transmission Gear Shaft
a) Efficient transmission: The gear meshing transmission has high efficiency and low power loss, and is suitable for high-load working conditions.
b) Reliable and stable: The mature mechanical structure design ensures strong shock resistance and enables long-term continuous operation.
c) Standardized design: It is convenient to replace and upgrade in modules according to different mechanical requirements.
Products | Transmission Gear Shaft |
Custom Made | √ |
Gear Profile Type | Gleason |
Gear Teeth Manufacturing | Gear Grinding |
Gear Teeth Grinding | √ |
Module (M) | 6 |
Number of Teeth (Z) | Custom |
Pressure Angle (α) | 0° |
Lead Angle | 0° |
Accuracy Grade | ISO 6 Grade |
Heat Treatment | Carburizing |
Surface Hardness | 58-62HRC |
STEEL CODE GRADES COMPARISON | |||||
CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
45 | C45E4 | 45 | 1045 | S45C | CK45 |
40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
20CrMnTi | 18XГT | SMK22 | |||
20Cr2Ni4 | 20X2H4A | ||||
20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
