Heat Treatment: | Quenching And Tempering | Precision: | High Precision |
---|---|---|---|
Quality Grade: | ISO 6 Grade | Size: | Customized |
Manufacture: | Gear Milling | Gear Teeth Number: | Custom |
Highlight: | Quiet Operation Transmission Gear Shaft,Smooth Transmission Gear Shaft |

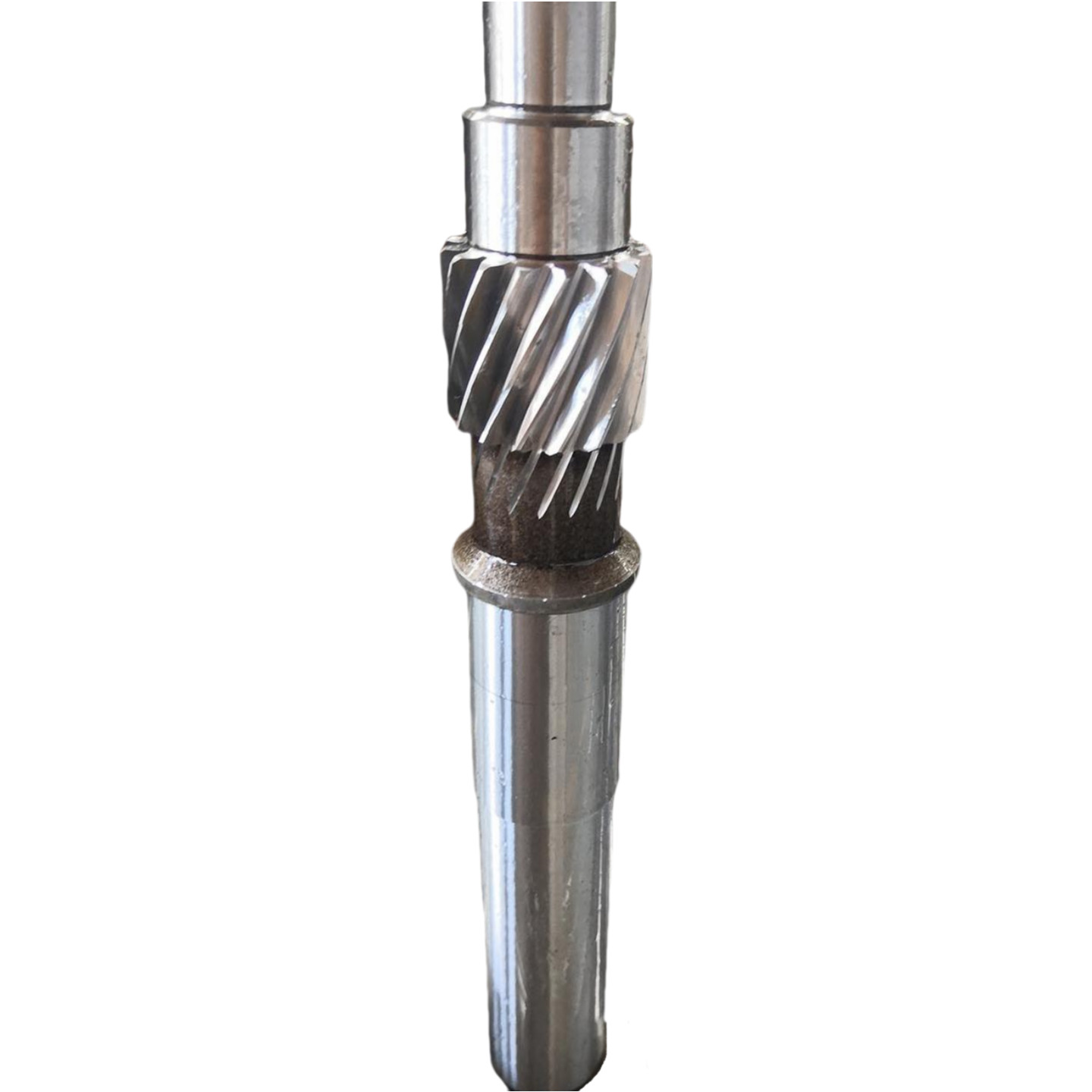

1) Descriptions of Transmission Gear Shaft
The transmission gear shaft is a mechanical transmission component that requires regular maintenance to ensure long-term stable operation.
2) Features of Transmission Gear Shaft
a) Lubrication requirements: Use appropriate lubricating oil or grease to reduce wear on gears and shafts.
b) Condition monitoring: Monitor the operating status in real time through vibration analysis, temperature detection, etc.
c) Identification of vulnerable parts: The gear tooth surfaces, shaft necks, etc. are the main wear points, facilitating targeted maintenance.
3) Advantages of Transmission Gear Shaft
a) Ease of maintenance: The structure is relatively simple, and the operation of disassembling and replacing components is low in difficulty.
b) Cost controllability: Regular maintenance can extend the service life and reduce the overall maintenance cost.
c) Fault predictability: Through monitoring technology, potential problems can be detected in advance, avoiding sudden failures.
Products | Transmission Gear Shaft |
Custom Made | √ |
Gear Profile Type | Gleason |
Gear Teeth Manufacturing | Gear Grinding |
Gear Teeth Grinding | √ |
Module (M) | 6 |
Number of Teeth (Z) | Custom |
Pressure Angle (α) | 0° |
Lead Angle | 0° |
Accuracy Grade | ISO 6 Grade |
Heat Treatment | Carburizing |
Surface Hardness | 58-62HRC |
STEEL CODE GRADES COMPARISON | |||||
CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
45 | C45E4 | 45 | 1045 | S45C | CK45 |
40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
20CrMnTi | 18XГT | SMK22 | |||
20Cr2Ni4 | 20X2H4A | ||||
20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
