| Teeth Width: | Custom | Noise Level: | Low |
|---|---|---|---|
| Number Of Teeth: | Custom | Manufacture Processing: | Gear Hobbing |
| Manufacturing Process: | Gear Teeth Milling | Accuracy Grade: | ISO 8-9 Grade |
| Highlight: | Customized Herringbone Gears,Industrial Herringbone Gears,Different Transmission Ratio Herringbone Gears |
||
In the industrial field, the herringbone gear is a crucial transmission component used to
achieve power transmission and motion conversion between mechanical parts.

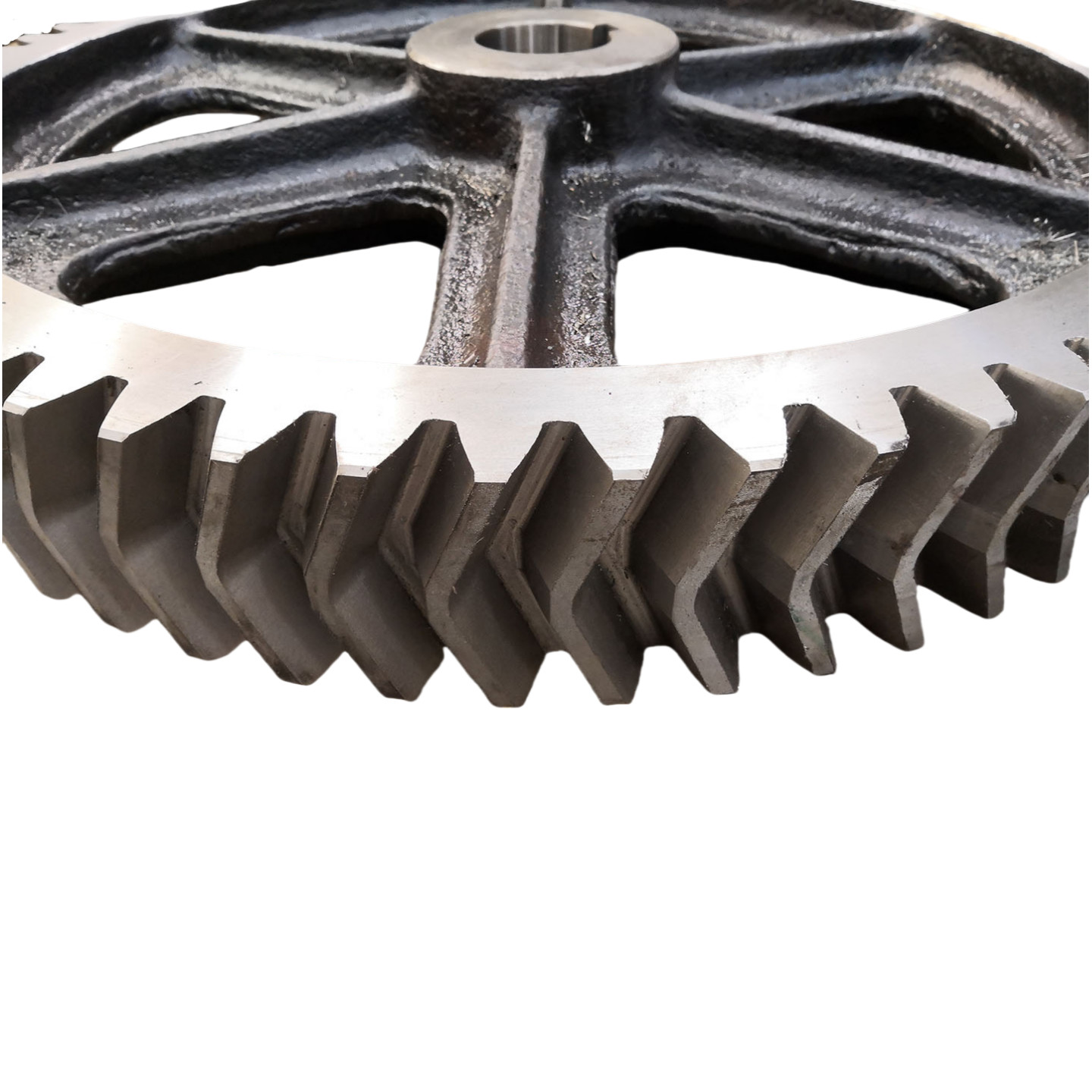

It achieves stable and efficient transmission through its unique herringbone tooth shape.
It can withstand a large load and is suitable for harsh industrial environments; the transmission process is
smooth, effectively reducing the vibration during equipment operation; the structure is compact,
enabling high-power transmission within a limited space.
3)Advantage of Herringbone Gear
Improve the reliability and stability of industrial equipment, reduce the equipment failure rate;
be able to meet the transmission ratio requirements of different industrial scenarios;
have a long maintenance cycle and lower the maintenance costs of industrial production.
4)Application of Herringbone Gear
It is widely used in large compressors in the petrochemical industry, steam turbine power generation units in power plants,
and deceleration devices for heavy machinery, ensuring the continuity and efficiency of industrial production.
| Products | Herringbone Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | √ |
| Module (M) | 12 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
