| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HB2207001 |
| Minimum Order Quantity: | 1 Piece |
| Price: | 300 |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 500 Pieces/Month |
| Material: | 42CrMo/AISI 4140 | Heat Treatment: | Quenching & Tempering |
|---|---|---|---|
| Manufacturing Process: | Gear Teeth Milling | Quality Grade: | ISO 8-9 Grade |
| Profile Type: | Herringbone Gear | Helical Angle: | 22° |

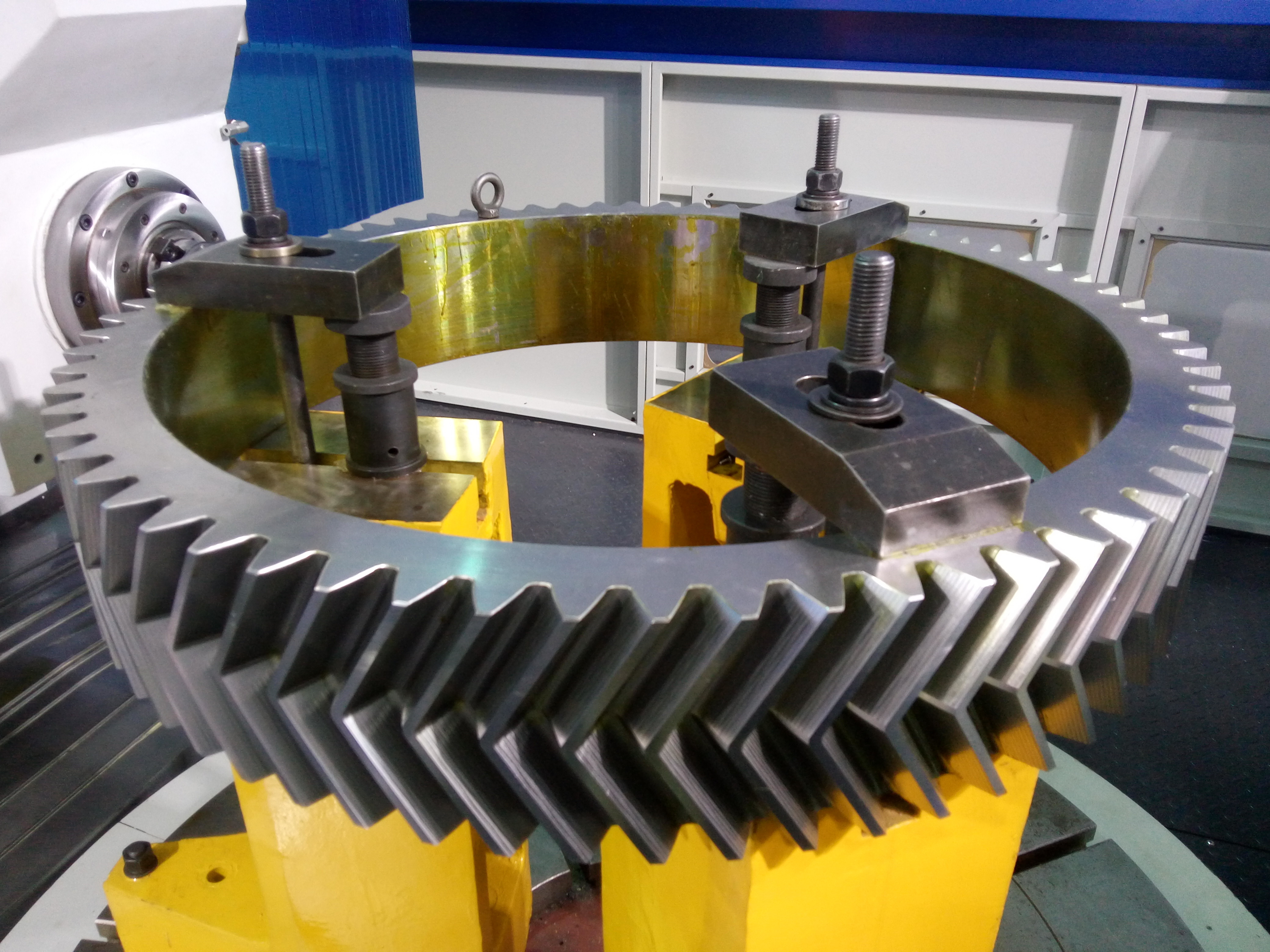

| High Light: | Herringbone Gears Without Central Gap,Custom rolling mill gear,Rolling Mill Herringbone Gears |
||
1)Features of herringbone gear
a) Herringbone gears are more difficult to manufacture than equivalent spur or helcial gears.
b) Herringbone gear don't produce an additional axial load like helical gear.
2) Herringbone gear manufacture process
Herringbone gear manufactured by gear milling
3) Material of herringbone gears
42CrMo steel (AISI 4140) or 40CrNiMo (SAE 4320) are most used for herringbone gear
| Custom Made | √ |
| Gear Profile Type | Herringbone |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | Null |
| Module (M) | Custom |
| Number of Teeth (Z) | 56 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 |
| Heat Treatment | Quenching & Tempering |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
