| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 200 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Size: | Customized | Heat Treatment: | Carburizing |
|---|---|---|---|
| Processing Technology: | CNC Machining | Gear Type: | Spur Gear |
| Type: | Helix Gear Shaft | Manufacture: | Gear Milling |
| Highlight: | Heavy Machinery Transmission Gear Shaft,Aerospace Applications Transmission Gear Shaft,Custom Transmission Gear Shaft |
||

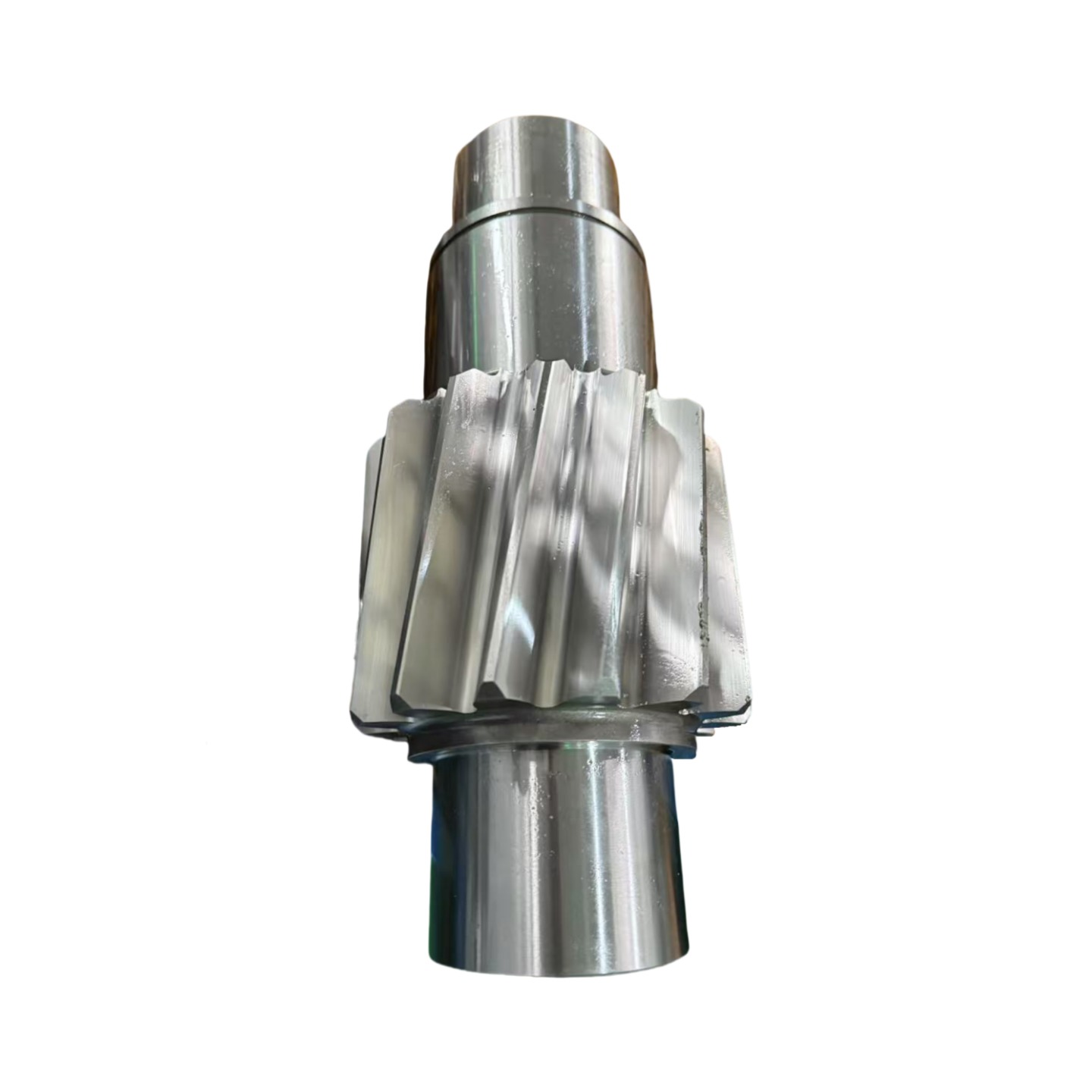

1) Descriptions of Transmission Gear Shaft
Shaft parts made of high-strength alloy steel or special materials, both the transmission function of gears and shaft support.
2) Features of Transmission Gear Shaft
a) Wear resistance: Surface heat treatment (e.g. carburising and hardening) extends the life.
b) Fatigue resistance: Good material toughness to adapt to cyclical loads.
c) Lightweight: Titanium alloy or composite materials are used in some scenarios.
3) Working Principle of Transmission Gear Shaft
Power is transmitted using contact stresses on the gear tooth surfaces, and the material properties ensure stable long-term operation.
4) Application of Transmission Gear Shaft
Aerospace, automotive engines, heavy machinery and other high-load areas.
| Products | Transmission Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Gear Teeth Manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
