| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 200 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 Sets/Month |
| Material: | Steel | Gear Profile Type: | Double Helical Gear |
|---|---|---|---|
| Pitch Diameter: | Depends On The Size And Application | Manufacturing Process: | Gear Grinding |
| Number Of Teeth: | Customized | Size: | Customized |
| Highlight: | Stable Double Helical Gears,Industrial Equipment Double Helical Gears,Smooth Double Helical Gears |
||
| Attribute | Value |
|---|---|
| Material | Steel |
| Gear Profile Type | Double Helical Gear |
| Pitch Diameter | Customized to application requirements |
| Manufacturing Process | Gear Grinding |
| Number Of Teeth | Customized (Standard: 26 teeth available) |
| Size | Custom manufactured to specifications |

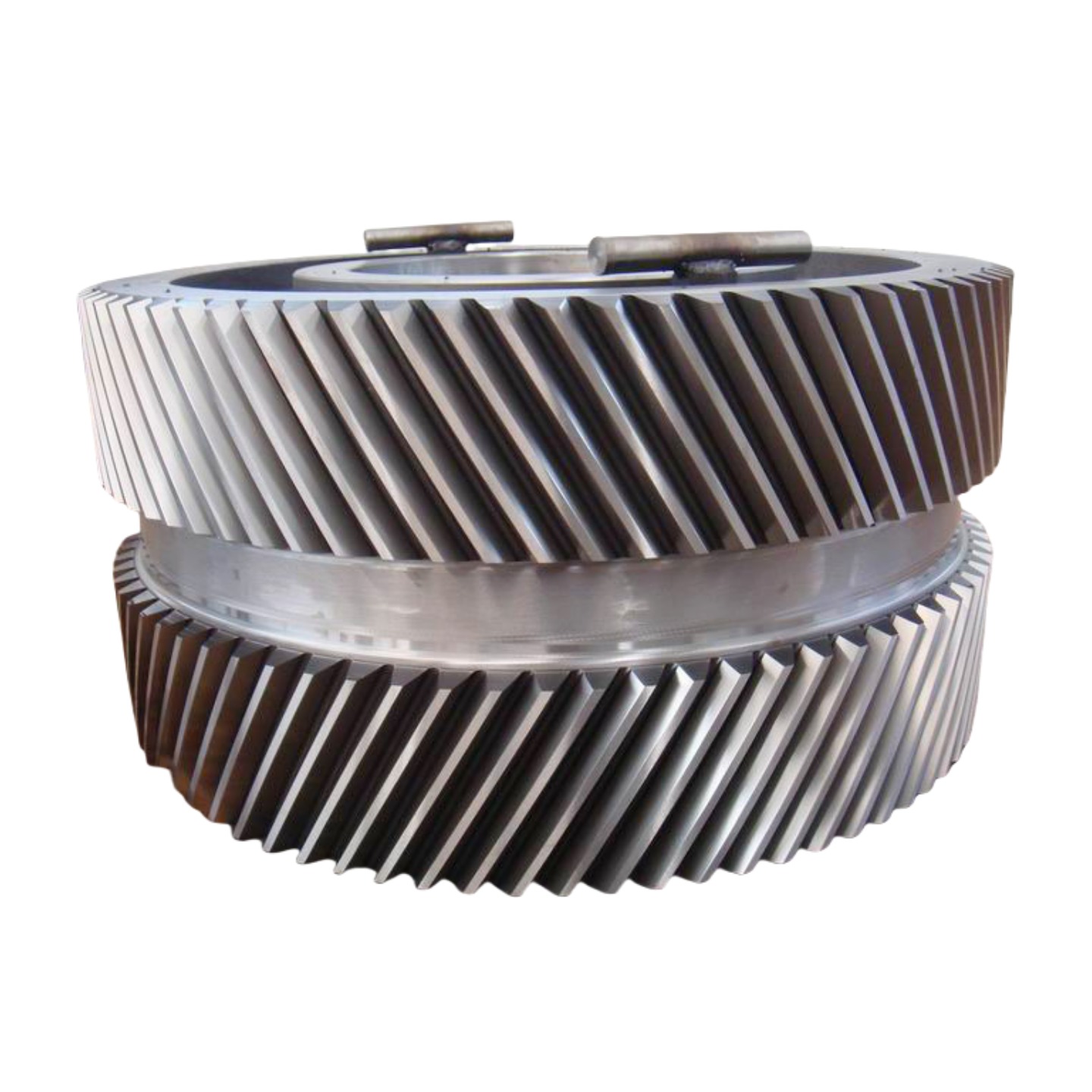

Double helical gears consist of two helical gears with equal but opposite helix angles, providing balanced axial forces for superior power transmission in industrial applications.
| Custom Manufacturing | Available |
| Gear Profile Type | Cylindrical Gear |
| Primary Manufacturing Method | Gear Hobbing |
| Teeth Grinding | Included |
| Module (M) | Custom Made |
| Pressure Angle (α) | 20° |
| Lead Angle | 15° |
| Teeth Accuracy Grade | Custom Precision |
| Heat Treatment | Normalizing |
| Surface Hardness | 260HB |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 |
