20 Degree Pressure Angle Herringbone Gears High-Speed High-Efficiency

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Minimum Order Quantity: 100 Sets
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Month
Detail Information
Pressure Angle: 20 Degrees Teeth Number: Custom
Gear Profile: Herringbone Gear Quality Grade: ISO 8-9 Grade
Usage: Industrial Machinery Backlash: Depends On Size
Highlight:

20 Degree Pressure Angle Herringbone Gears

,

High Efficiency Herringbone Gears

,

High Speed Herringbone Gears


Product Description

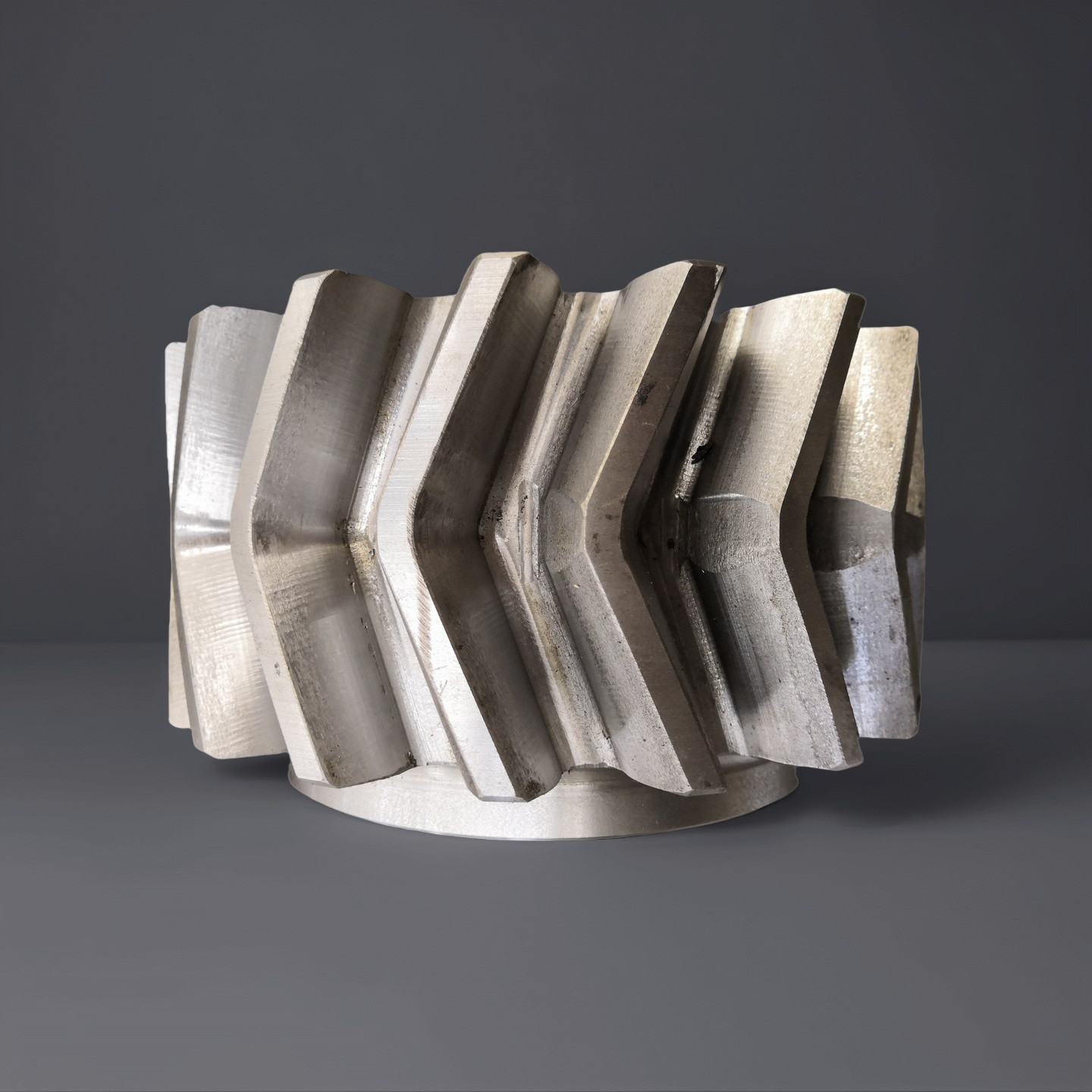

1)Description of Herringbone Gear

The herringbone gear is a special type of gear that combines two helical gears with equal helical angles

and opposite rotation directions into one. Its tooth profile is in the shape of a "person" character.

It transmits power through interlaced helical teeth and eliminates axial forces.

2)Feature of Herringbone Gear

It has the characteristic of continuous meshing, resulting in a high degree of overlap during transmission;

the symmetrical helical teeth on both sides cancel out the axial forces, ensuring strong operational stability;

and during the transmission process, there is little vibration and noise.

3)Advantage of Herringbone Gear

Compared with straight gears, the herringbone gear transmission is more stable and has a higher load-bearing capacity;

compared with ordinary helical gears, it can effectively solve the problem of axial force and extend the service life of the equipment;

the transmission efficiency is high, reaching over 98%.

4)Application of Herringbone Gear

It is commonly used in high-power and high-speed transmission systems, such as the propulsion systems of ships,

the transmission devices of large industrial steam turbines, as well as large mechanical equipment in the mining

and metallurgical industries, to ensure the efficient and stable transmission of power.

Products Herringbone Gear
Custom Made
Gear Profile Type C​ylindrical Gear
Gear Teeth manufacturing Gear Milling
Gear Teeth Grinding
Module (M) 12
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 230-260 HB



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
