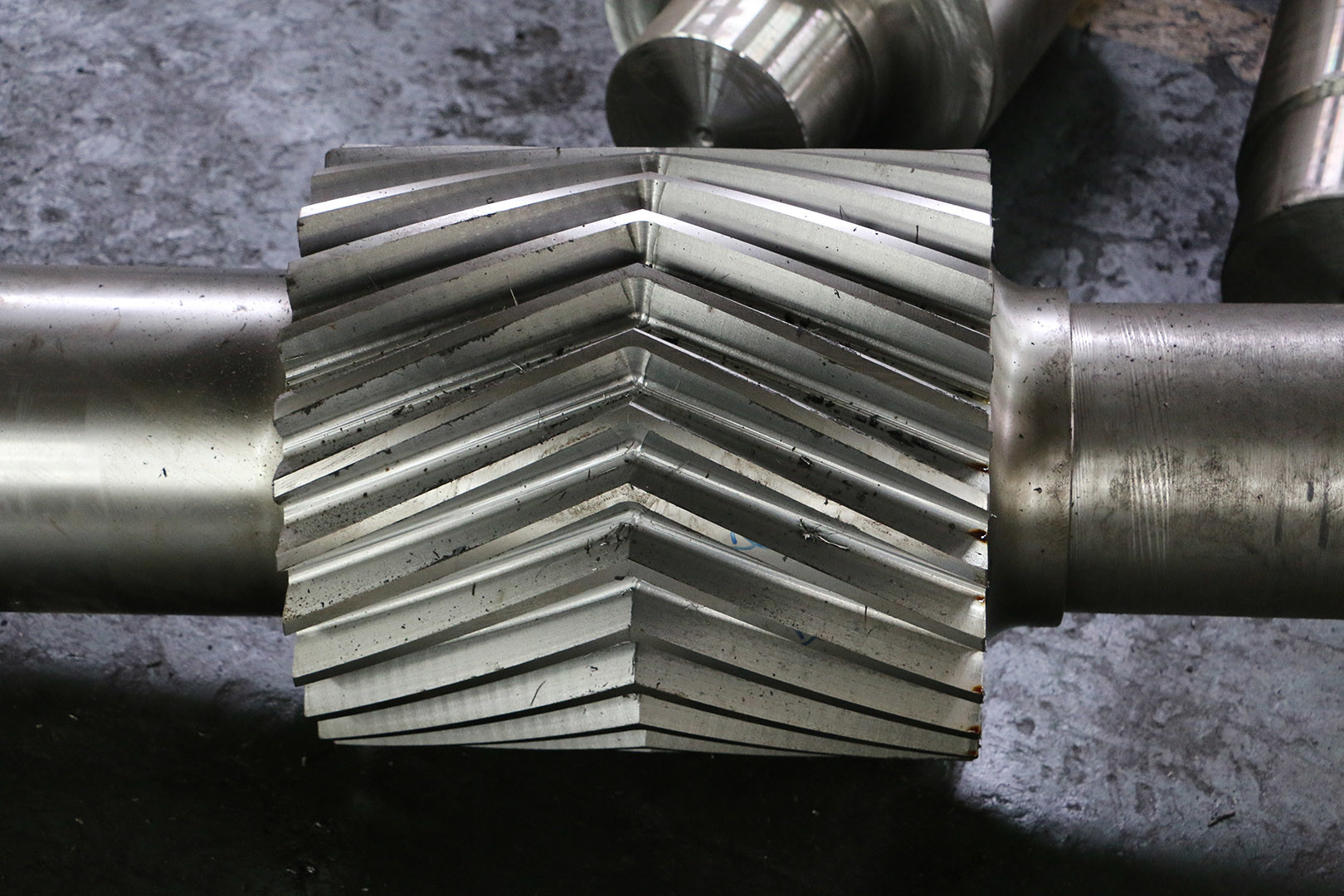

Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module
  • Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module
Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module

Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module

Place of Origin CHINA
Brand Name YIZGEAR
Model Number HB22072201
Product Details
Material:
42CrMo
Length:
3500mm
Module:
10
Tip Diameter:
320
Quality Grade:
ISO 8-9 Grade
Heat Treatment:
Quenching & Tempering
Highlight:

3.5M Herringbone Helical Gear Shaft

,

Gear Milling Herringbone Helical Gear Shaft

,

10 Module Herringbone Helical Gear

Payment & Shipping Terms
Minimum Order Quantity
2 Pieces
Price
$300/ Piece
Packaging Details
Plywood Crate
Delivery Time
70 days
Payment Terms
L/C,T/T,
Supply Ability
300 Pcs/Month
Product Description
Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module
Product Specifications
Material 42CrMo
Length 3500mm
Module 10
Tip Diameter 320
Quality Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Product Description
3.5 Meter Length Gear Milling Herringbone Gear Shaft
Applications of Herringbone Gear

Herringbone gears are widely used in heavy machinery applications, including steel factories and cement plants.

Heat Treatment

Standard heat treatment includes quenching and tempering, resulting in a hardness of 260-300 HB.

Material

Manufactured from high-quality 42CrMo steel or 40CrNiMo steel for superior strength and durability.

Custom Made Available
Gear Profile Type Herringbone
Gear Teeth Manufacturing Gear Milling
Gear Teeth Grinding Not Applicable
Module (M) 10
Number of Teeth (Z) 30
Pressure Angle (α) 20°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module 0

Manufacturing Process

Gear Milling Herringbone Helical Gear Shaft 3.5M Length 10 Module 1
