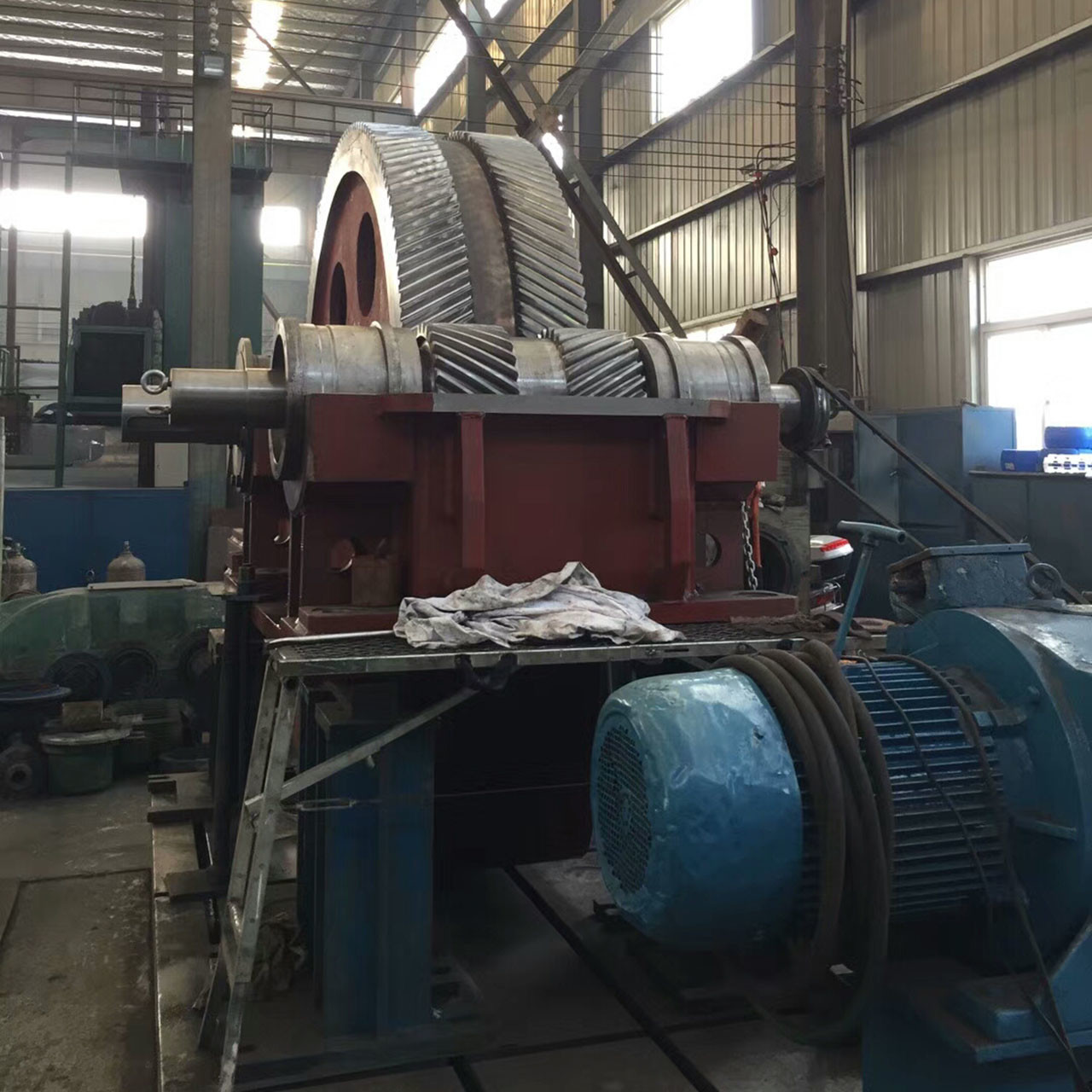

| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GB22080804 |
| Minimum Order Quantity: | 1 Set |
| Price: | $1000/ Set |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union, D/P |
| Supply Ability: | 150 Sets/Month |
| Material: | 20CrNiMoA | Profile Type: | Helical Gear |
|---|---|---|---|
| Weight: | 500 Kg | Type: | Second Stage |
| Color: | Gray | Gear Type: | Hard Surface |
| Highlight: | Worm Gear Speed Reducer Gear Box,Speed Reducer Gear Box 3600 RPM,3600 RPM worm gear reducer |
||
Considerations When Choosing a Speed Reducer
The considerations when choosing speed reducers include:
a) Torque of the Motor
b) Geometry of the Shaft Housing
c) Speed of Motor
d) Selection of Speed Reducer
e) Performance of the Motor
f) Backlash in the Gearbox
g) Mounting and Connection
| Products | Gear Box/ Gear Reducer |
| Custom Made | √ |
| Gear Profile Type | Double Helical Gear |
| Gear Teeth manufacturing | Gear Hobbing/ Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20°/ 14.5° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing/Cement Quenching/Nitriding |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
