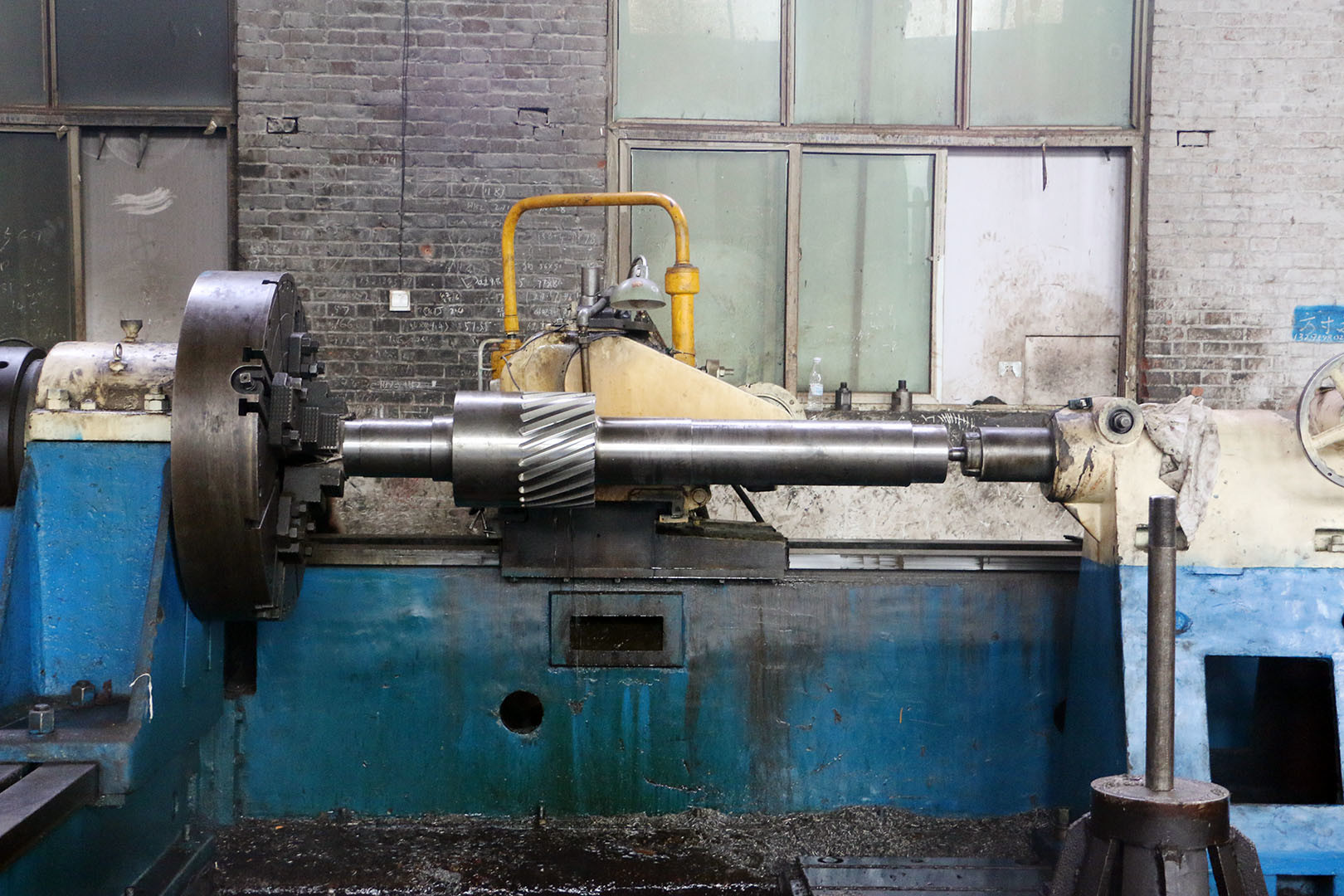

Herringbone Transmission Spare Parts Cylindrical Bevel Gear Shaft

Forged SAE 4340 Steel Transmission Spare Parts Herringbone Gear Shaft

1) Description of  Herringbone Gear

The gear transmits power and motion between parallel shafts that do not intersect and that may or may not have a central groove, with each group forming two opposing helices. The two helix angles meet at the centre of the gear face to form a “V”. In these gears, the final thrust forces cancel each other out.

2) Applications of  Herringbone Gear

The most common application is in power transmission. They use curved teeth for efficient, high-capacity power transmission.

This offers reduced pulsation, making them widely used for extrusion and polymerisation.
