| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | HB22082601 |
| Minimum Order Quantity: | 1 Pc |
| Price: | $500/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 72 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Pcs/Month |
| Profile Type: | Herringbone Gear | Material: | SAE 4340 |
|---|---|---|---|
| Hardness: | 230-260HB | Width: | 110mm |
| Module: | 5-25 Module | Manufacture Processing: | Gear Milling |
| High Light: | SAE 4340 Double Helical Herringbone Gear,SAE 4340 Helical Herringbone Gear,260HB Double Helical Gear |
||
1) Características del engranaje en espiga
El empuje dide del engranaje en espiga de una mitad se equilibra con el de la otra mitad.
El engranaje en espiga sin fuerza de empuje del eje.
2) Descripción del engranaje en espiga
Herringbone es un tipo especial de engranaje helicoidal doble, no hay espacio central entre los engranajes helicoidales izquierdo y derecho.
3) Proceso de fabricación

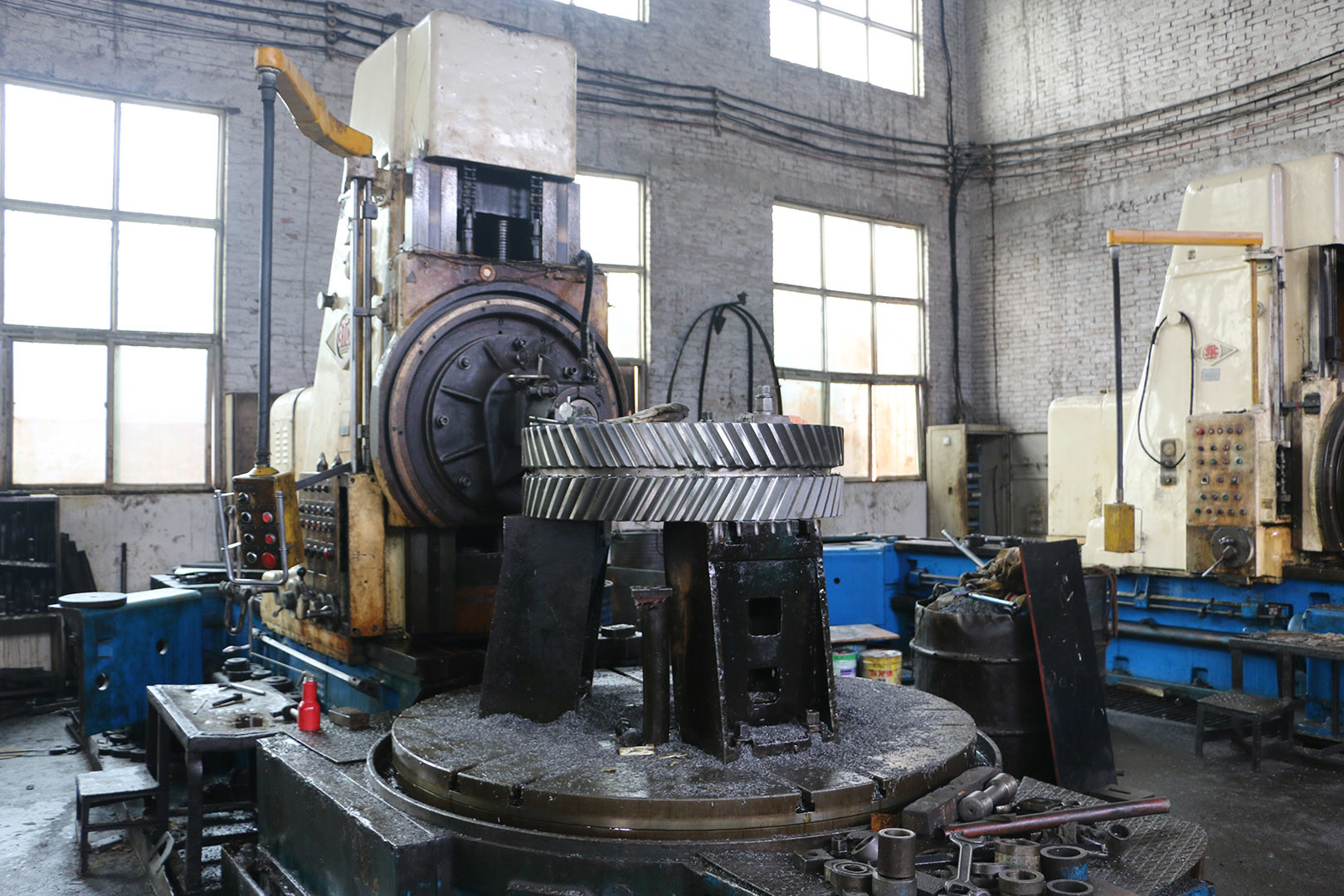

Fabricación de engranajes en espiga mediante fresadora de engranajes o talladora de engranajes.
| Products | Herringbone Gear Set |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | √ |
| Module (M) | 5-25 Module |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | Custom |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 230-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
