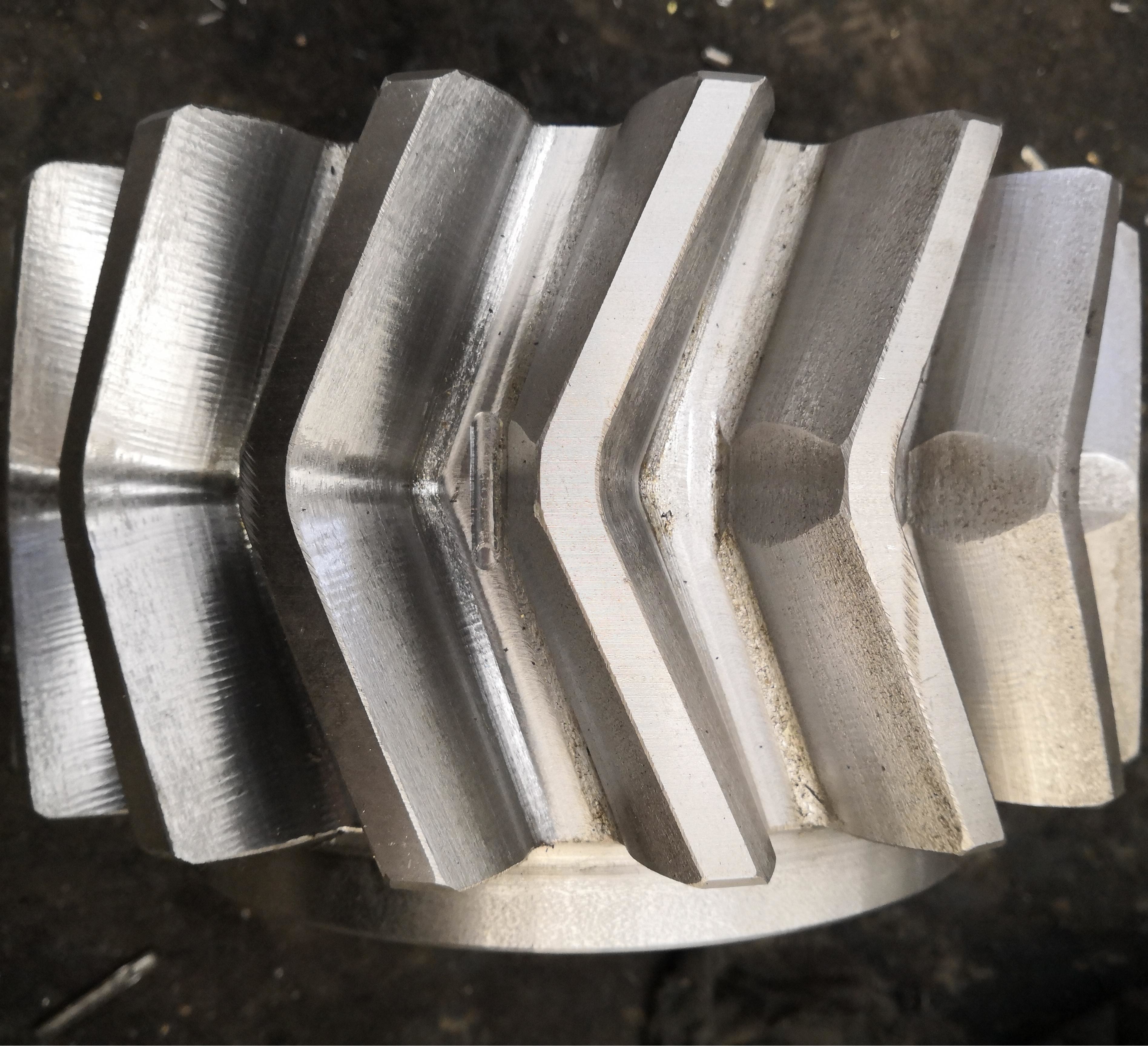

Stable And Low Noise Of Herringbone Gears For Heavy Duty High Speed Transmission

Place of Origin	CHINA
Brand Name	YIZGEAR

Product Details

Hardness:

50-55 HRC

Application:

Power Transmission

Helical Angle:

25°

Manufacturer:

Custom Gear & Machine, Inc.

Number Of Teeth:

Depends On Size

Module:

Depends On Size

Highlight:

Low Noise Herringbone Gears

Heavy Duty Herringbone Gears

High Speed Herringbone Gears

Payment & Shipping Terms

Minimum Order Quantity

200 Sets

Price

300＄

Packaging Details

Plywood Crate

Delivery Time

60 Days

Payment Terms

L/C,T/T

Supply Ability

500 Sets/Month

Product Description

1) Descriptions of Herringbone Gear

The herringbone gear is a type of gear used for high-speed and heavy-load transmission.

It combines the efficiency of helical gears with the stability of spur gears.

2) Features of Herringbone Gear

During meshing, multiple teeth are in contact simultaneously, resulting in a more stable transmission ratio for helical gears, with lower vibration and noise.
Suitable for high-torque and high-speed scenarios (such as ship propulsion systems, main drive of rolling mills).

3) Advantages of Herringbone Gear

Silent operation: The bidirectional helical gear meshing reduces impact and the noise is significantly lower than that of straight gears.
Efficient transmission: Low friction loss, with transmission efficiency reaching over 98%.

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Cylindrical Gear
Manufacturing Process	Gear Milling
Teeth Grinding	Included
Module (M)	12
Number of Teeth (Z)	Custom
Pressure Angle (α)	20°
Lead Angle	Custom
Accuracy Grade	ISO 8-9 Grade
Heat Treatment	Quenching & Tempering
Surface Hardness	230-260 HB

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Production Equipment

Stable And Low Noise Of Herringbone Gears For Heavy Duty High Speed Transmission 0

Production Process

Stable And Low Noise Of Herringbone Gears For Heavy Duty High Speed Transmission 1
