High-Performance Herringbone Gears Optimizing Gear Transmission With Excellent Material Properties

Basic Information
Place of Origin: CHINA
Brand Name: YIZGEAR
Minimum Order Quantity: 1 Sets
Packaging Details: Plywood Crate
Delivery Time: 60 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Month
Detail Information
Teeth Number: Custom Material: Steel
Tooth Profile: Herringbone Type: Cylindrical Gear
Manufacturing Process: Gear Teeth Milling Number Of Teeth: Depends On Size
Quality Grade: ISO 8-9 Grade
Highlight:

High Performance Herringbone Gears

,

Excellent Material Properties Herringbone Gears

,

Gear Transmission Herringbone Gears


Product Description

1)Description of Herringbone Gear

From the perspective of materials science, the herringbone gear is a mechanical part that uses specific metal

or non-metal materials as the basis and is processed to form a herringbone tooth structure for power transmission.

Commonly used materials include high-quality alloy steel, high-strength cast iron, etc.

2)Feature of Herringbone Gear

The selected materials possess high strength, high wear resistance and good toughness;

through heat treatment processes, the material properties can be further optimized to

enhance the fatigue resistance of the gears; they can adapt to various environmental conditions

such as temperature and humidity under different working conditions.

3)Advantage of Herringbone Gear

High-quality materials ensure the durability of the gears and extend their service life;

excellent material properties enable the gears to maintain stable transmission even under high-speed

and heavy-load conditions; different materials can be selected according to different application scenarios to meet diverse needs.

4)Application of Herringbone Gear

In the aerospace field, the herringbone gears made of lightweight and high-strength alloy materials

are used in the engine transmission system; in food machinery, gears are made of stainless steel materials

that meet hygiene standards to ensure food safety.

Products Herringbone Gear
Custom Made
Gear Profile Type C​ylindrical Gear
Gear Teeth manufacturing Gear Milling
Gear Teeth Grinding
Module (M) 12
Number of Teeth (Z) Custom
Pressure Angle (α) 20°
Helix Angle (β) Custom
Teeth Accuracy Grade ISO 8-9 Grade
Heat Treatment Quenching & Tempering
Surface Hardness 230-260 HB



STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/
40XHMA
4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420

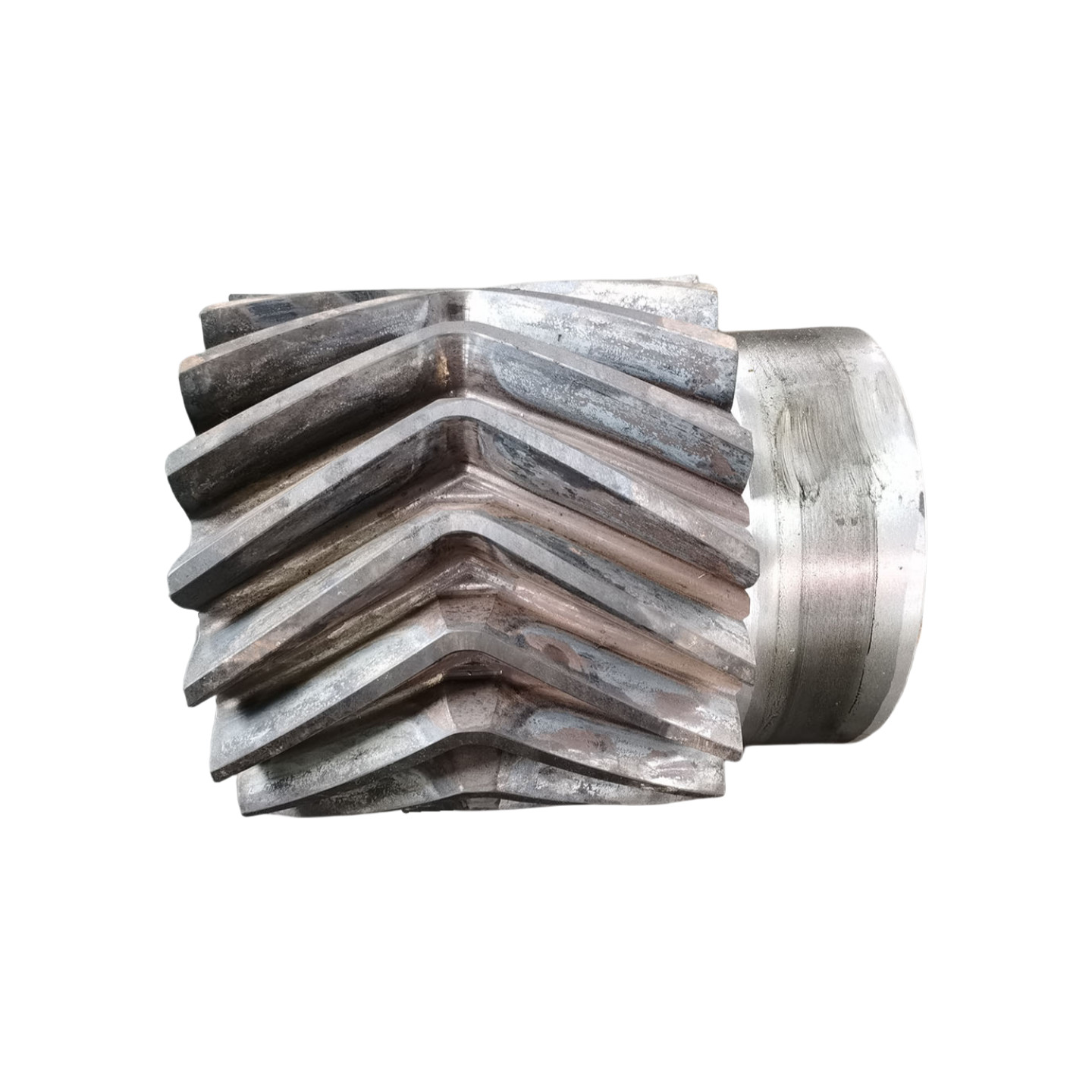

High-Performance Herringbone Gears Optimizing Gear Transmission With Excellent Material Properties 0

High-Performance Herringbone Gears Optimizing Gear Transmission With Excellent Material Properties 1
