| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS220805005 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $35.0/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C,D/P,Western Union,T/T |
| Supply Ability: | 300 Pieces/Month |
| Brand: | OEM | Manufacturing Process: | Gear Grinding |
|---|---|---|---|
| Teeth Width: | 30mm | Teeth Number: | 16 |
| Gear Type: | Spur Gear | Pitch: | 19.635mm |
| Highlight: | Spur Transmission Gear Shaft,2.5 Module Spur Gear Shaft,2.5 Module Transmission Gear Shaft |
||
| Attribute | Value |
|---|---|
| Brand | OEM |
| Manufacturing Process | Gear Grinding |
| Teeth Width | 30mm |
| Teeth Number | 16 |
| Gear Type | Spur Gear |
| Pitch | 19.635mm |

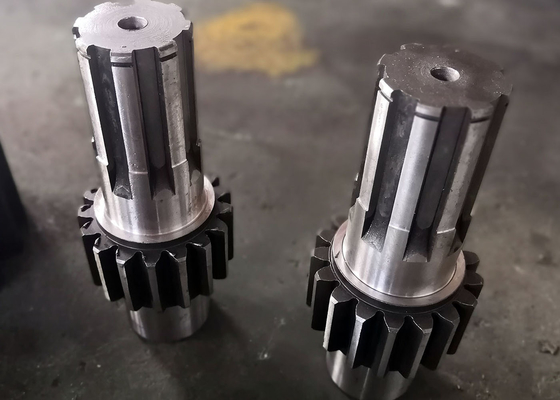

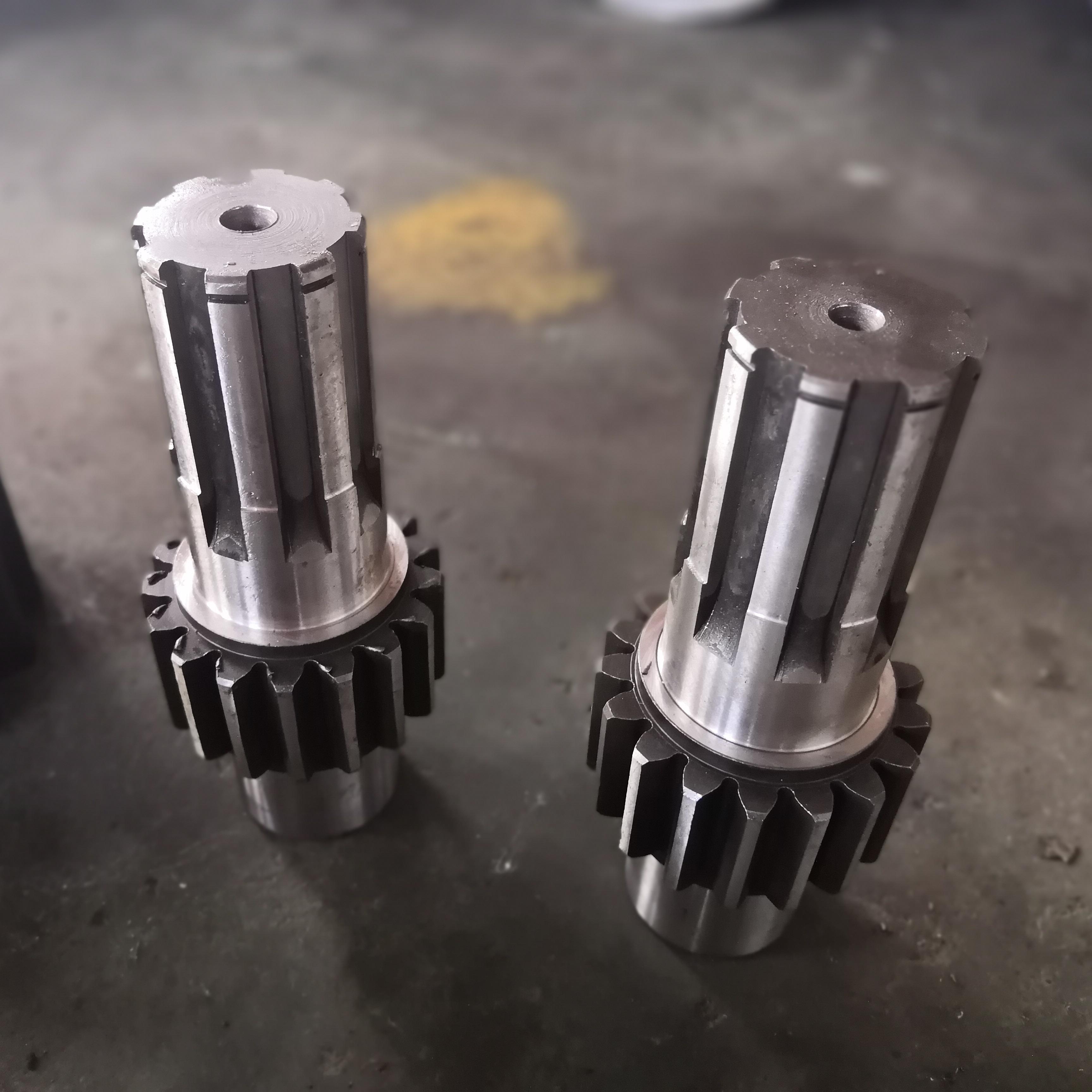

2.5 Module Spur Gear Shaft For General Industry Gearbox And Speed Reducer
Spur Gear shaft is a transmission component consisting of a shaft with integrated spur gear. The spur gear features a cylindrical shape and is the most commonly used gear type with a wide range of industrial applications.
| Specification | Value |
|---|---|
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gear |
| Gear Teeth Manufacturing | Gear Milling/Gear Hobbing/Gear Shaping |
| Gear Teeth Grinding | √ |
| Module (M) | 2.5 |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
