| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 200 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Compatibility: | Universal | Steel Type: | Forging Steel |
|---|---|---|---|
| Heat Treatment: | Carburizing | Manufacturing Method: | Milling |
| Internal Type: | Spline | Tooth Number: | Custom |
| Highlight: | Constant Speed Transmission Spur Gears,Deceleration Spur Gears,Acceleration Spur Gears |
||

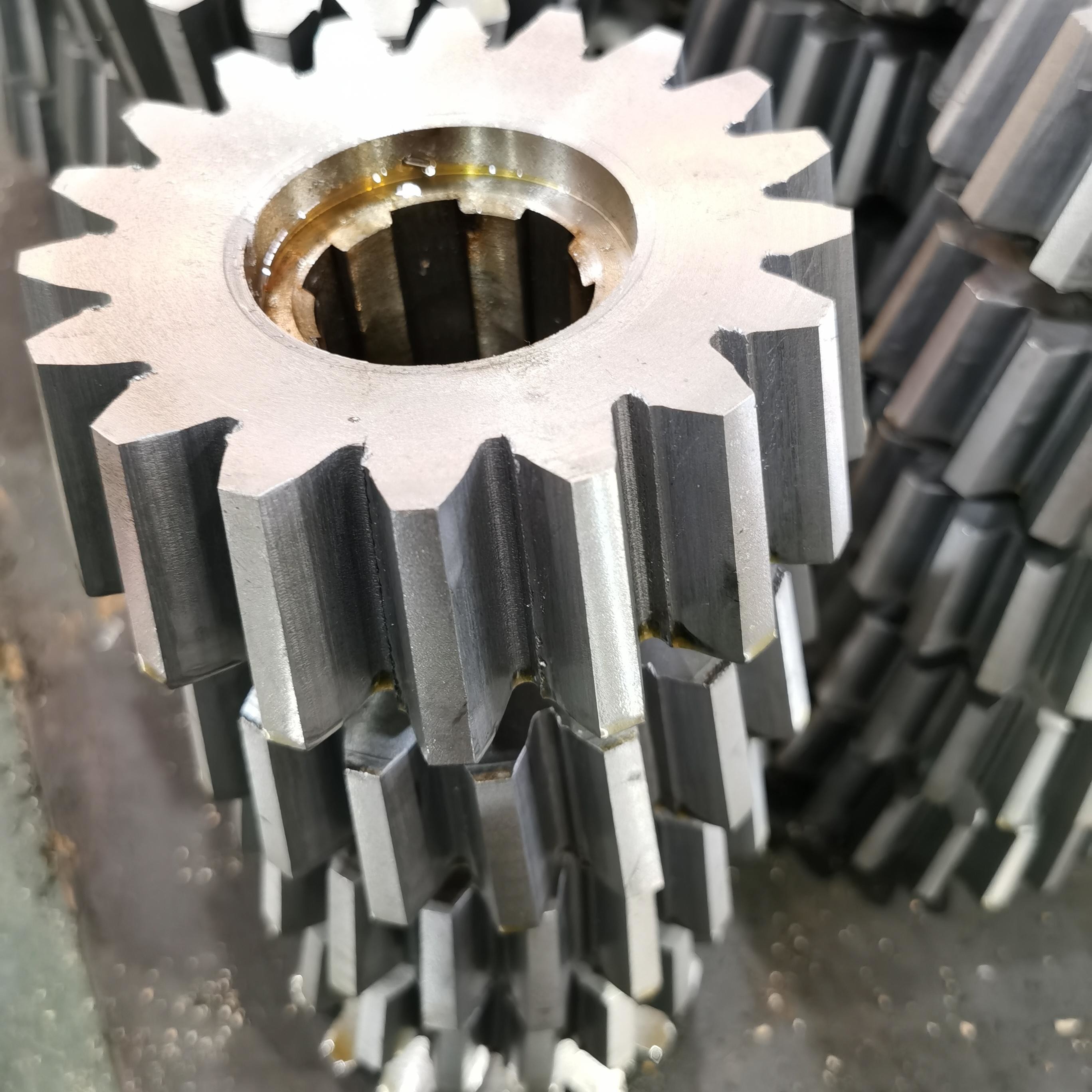

1) Description of Spur Gear
Straight gears are fundamental components widely used in mechanical equipment for power transmission.
They achieve the transfer of torque and rotational speed through the meshing of teeth.
2) Feature of Spur Gear
a) Suitable for scenarios requiring parallel shaft transmission.
b) Can achieve deceleration, acceleration or constant-speed transmission.
c) Capable of withstanding large radial loads.
3) Advantage of Spur Gear
a) It is widely used in industrial automation equipment and has high reliability.
b) The noise and vibration are relatively small, making it suitable for scenarios where smooth operation is required.
c) The structure is simple and it is easy to customize according to different working conditions.
| Products | Spur Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Manufacturing | Gear Hobbing |
| Teeth Grinding | √ |
| Module (M) | 1.5 |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0 |
| Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
