Heat Treatment: | Quenching & Tempering | Size: | Standard |
---|---|---|---|
Quality Grade: | ISO 7-8 Grade | Steel Type: | Alloy Steel |
Method: | Gear Hobbing | Packing: | Plywood Crate |
Highlight: | Customized Production Straight Spur Gears,Diverse Manufacturing Processes Straight Spur Gears |

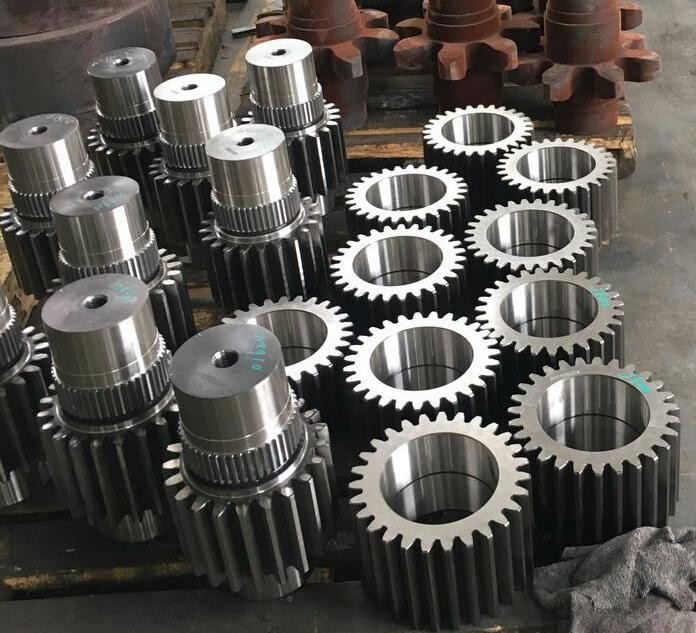

1) Description of Spur Gear
Straight gears are cylindrical gears manufactured through processes such as cutting, rolling,
and casting, and their teeth are evenly distributed along the axis.
2) Feature of Spur Gear
a) The manufacturing processes are diverse and can be selected according to the requirements.
b) The tooth profile accuracy can be controlled by different processing methods.
c) The batch production efficiency is high and it is suitable for large-scale manufacturing.
3) Advantage of Spur Gear
a) The processing equipment has strong versatility and controllable production costs.
b) The manufacturing cycle is short, enabling quick response to market demands.
c) It can enhance the hardness and wear resistance of the tooth surface through processes such as heat treatment.
Products | Spur Gear |
Custom Made | √ |
Gear Profile Type | Cylindrical Gears |
Manufacturing | Gear Hobbing |
Teeth Grinding | √ |
Module (M) | 1.5 |
Number of Teeth (Z) | Custom |
Pressure Angle (α) | 20° |
Helix Angle (β) | 0 |
Accuracy Grade | ISO 6-7 Grade |
Heat Treatment | Carburizing |
Surface Hardness | 58-62 HRC |
STEEL CODE GRADES COMPARISON | |||||
CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
45 | C45E4 | 45 | 1045 | S45C | CK45 |
40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
20CrMnTi | 18XГT | SMK22 | |||
20Cr2Ni4 | 20X2H4A | ||||
20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
