Spiral Bevel Gear Shaft High-Speed Adaptability for Transmission Mechanism

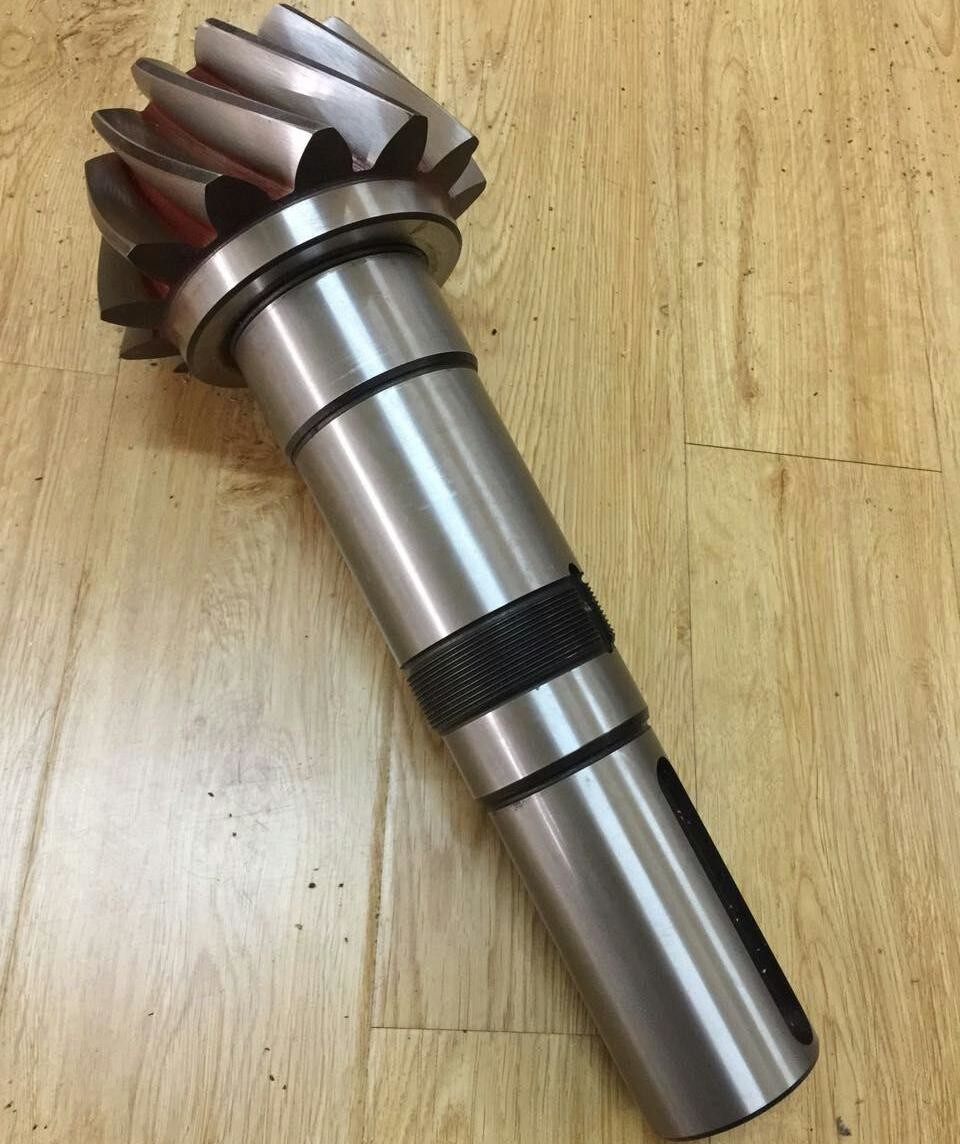

1) Descriptions of Spiral Bevel Gear Shaft
The spiral bevel gear shaft is the core transmission component integrating the helical bevel gears and the transmission shaft. It is specially developed for the requirements of high torque and high-precision angle transmission. Through the integrated structure of gears and shaft, this component significantly improves the system's space utilization while ensuring transmission accuracy.
2) Advantages of Spiral Bevel Gear Shaft

a) Torque Enhancement Design: The integrated structure eliminates the risk of key connection failure and can withstand a continuous torque load of up to 2800 N·m.
b) Compact Layout: Without the need for coupling connection, the axial installation space is saved by more than 40%.
c) Gear Mesh Precision Guarantee: The overall processing technology keeps the cumulative assembly error within ±0.02mm.
d) High-speed Adaptability: The dynamic balance level can reach the G2.5 standard, and it is applicable to a speed range of 800-6000 rpm.
3) Applicatioins of Spiral Bevel Gear Shaft
a) New energy vehicles: Main reduction gear assembly of electric drive axle
b) Construction machinery: Drive system of shield machine cutter head
c) Aviation equipment: Main rotor transmission mechanism of helicopter
