| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Minimum Order Quantity: | 20 Sets |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 60 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Sets/Month |
| Highlight: | High Performance Transmission Gear Shaft,Compact Transmission Gear Shaft,Industrial Applications Transmission Gear Shaft |
||
|---|---|---|---|

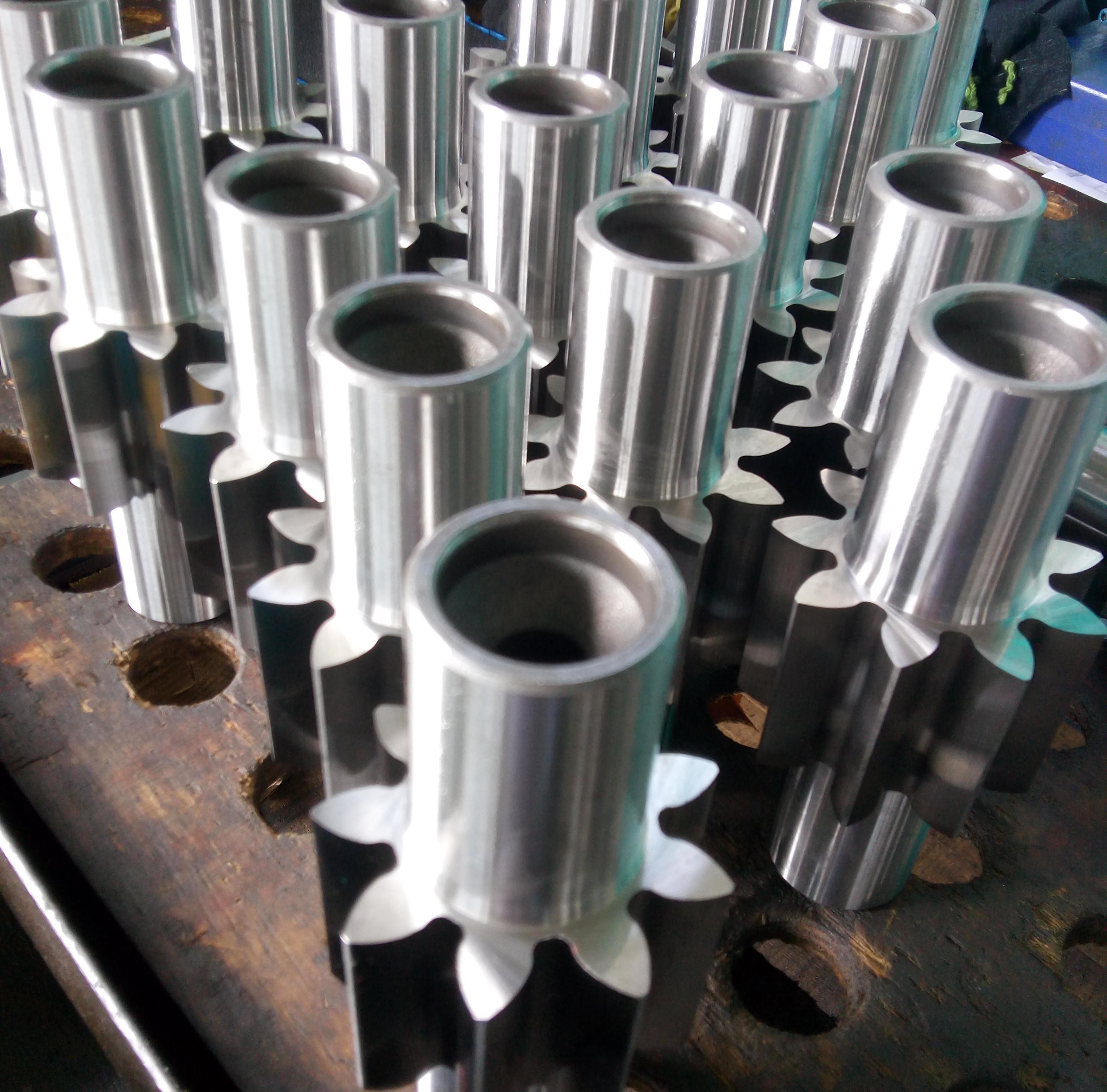

1) Descriptions of Transmission Gear Shaft
In mechanical transmission systems, the gear shaft is a key component that is responsible for efficiently transmitting power and adjusting rotational speed.
It has a compact structure and operates smoothly, and is suitable for applications such as automotive gearboxes and industrial reducers.
It also enhances wear resistance through heat treatment processes.
2) Features of Transmission Gear Shaft
Compared with traditional transmission schemes:
a)Efficiency is improved by 5-8% (up to 95%+)
b)Volume is reduced by 30-40%
c)Bearing capacity is increased by 2-3 times
d)Operating noise is reduced by 15 decibels
3) Advantages of Transmission Gear Shaft
a)Precision solution: Guaranteed ±0.005mm machining tolerance by German imported CNC gear grinding machine.
b)Maintenance solution: Standardized interface design, equipped with intelligent lubrication reminder device.
c)Adaptation solution: Patent multi-directional connection structure, capable of matching 98% of transmission system requirements.
| Products | Transmission Gear Shaft |
| Custom Made | √ |
| Gear Profile Type | Gleason |
| Gear Teeth Manufacturing | Gear Grinding |
| Gear Teeth Grinding | √ |
| Module (M) | 6 |
| Number of Teeth (Z) | 21 |
| Pressure Angle (α) | 0° |
| Lead Angle | 0° |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
