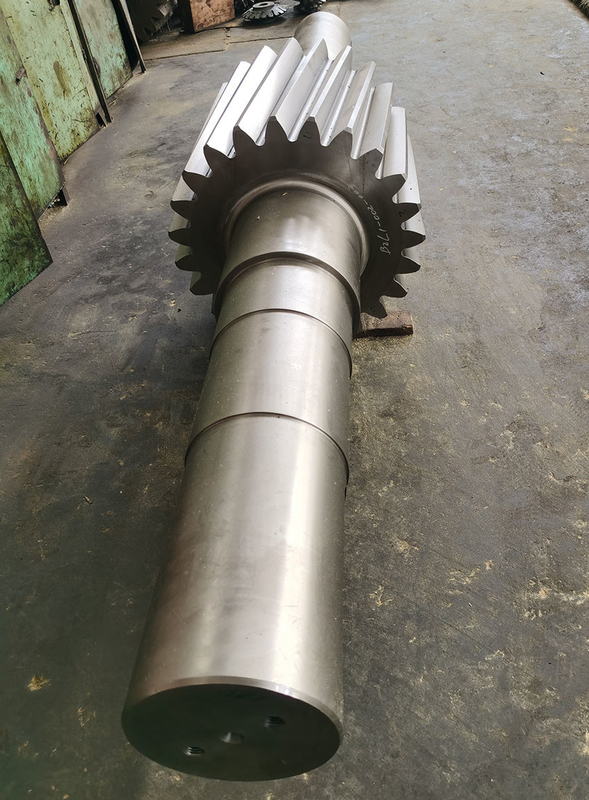

17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft
  • 17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft
  • 17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft
  • 17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft
  • 17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft
  • 17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft

17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft

Place of Origin CHINA
Brand Name YIZGEAR
Model Number GS220805003
Product Details
Material:
18CrNiMo7
Module:
17
Helix Angle:
22°
Tooth Accuracy:
ISO 6 Grade
Length:
2000mm
Pressure Angle:
20°
Highlight:

17 Module Helical Gear Shaft

,

Right Hand Helical Gear Shaft

,

17 Module Right Hand Helical Shaft

Payment & Shipping Terms
Minimum Order Quantity
5 Pieces
Price
$850.0/Piece
Packaging Details
Plywood Crate
Delivery Time
60 Days
Payment Terms
L/C,D/P,Western Union,T/T
Supply Ability
300 Pieces/Month
Product Description
17 Module Right Hand Helical Gear Shaft
Product Specifications
Material 18CrNiMo7
Module 17
Helix angle 22°
Tooth Accuracy ISO 6 Grade
Length 2000mm
Pressure angle 20°
Transmission Spare Parts - 17 Module Right Hand Helical Gear Shaft
Key Features
  • Power Transmission Efficiency: 98.0~99.5%
  • Gear teeth are twisted oblique to the gear axis
  • Applications: Gearbox, Speed Reducers, Transmission Components
Technical Details
Custom Made ✓
Gear Profile Type Cylindrical Gear
Gear Teeth Manufacturing Gear Grinding
Gear Teeth Grinding ✓
Module (M) 17
Number of Teeth (Z) 22
Pressure Angle (α) 20°
Helix Angle (β) 22°
Teeth Accuracy Grade ISO 6 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Equipment Images

17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft 0

Manufacturing Process

17 Module ISO 6-7 Grade Left Hand Helical Transmission Gear Shaft 1
