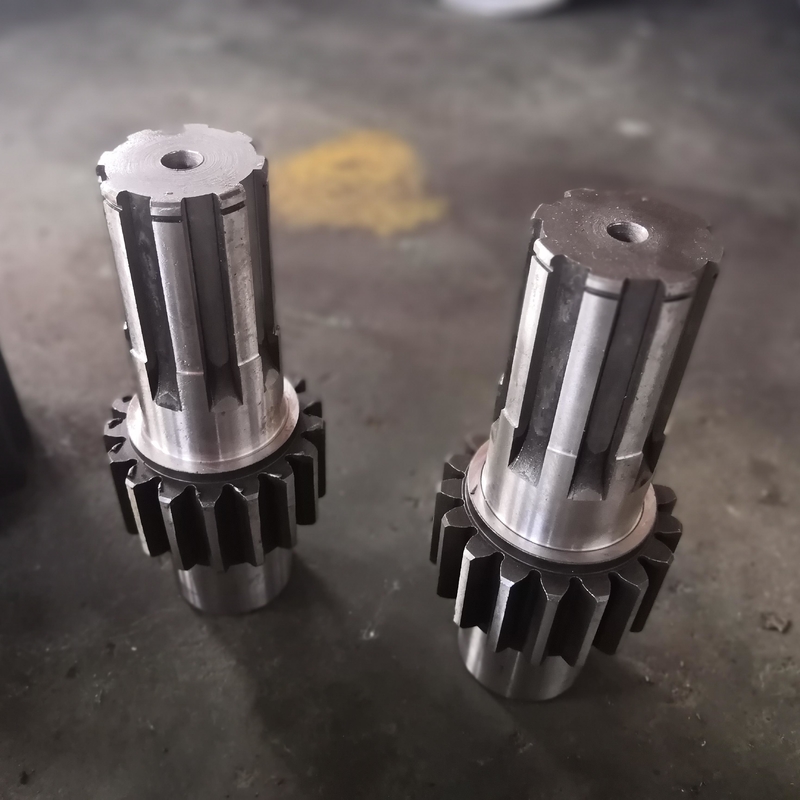

2.5 Module 58- 62 HRC Spur Transmission Gear Shaft with Carburizing
  • 2.5 Module 58- 62 HRC Spur Transmission Gear Shaft with Carburizing
2.5 Module 58- 62 HRC Spur Transmission Gear Shaft with Carburizing

2.5 Module 58- 62 HRC Spur Transmission Gear Shaft with Carburizing

Place of Origin CHINA
Brand Name YIZGEAR
Model Number GS220805005
Product Details
Brand:
OEM
Manufacturing Process:
Gear Grinding
Teeth Width:
30mm
Teeth Number:
16
Gear Type:
Spur Gear
Pitch:
19.635mm
Highlight:

Spur Transmission Gear Shaft

,

2.5 Module Spur Gear Shaft

,

2.5 Module Transmission Gear Shaft

Payment & Shipping Terms
Minimum Order Quantity
5 Pieces
Price
$35.0/Piece
Packaging Details
Plywood Crate
Delivery Time
60 Days
Payment Terms
L/C,D/P,Western Union,T/T
Supply Ability
300 Pieces/Month
Product Description
2.5 Module Spur Transmission Gear Shaft
Product Specifications
Attribute Value
Brand OEM
Manufacturing Process Gear Grinding
Teeth Width 30mm
Teeth Number 16
Gear Type Spur Gear
Pitch 19.635mm
Product Description

2.5 Module Spur Gear Shaft For General Industry Gearbox And Speed Reducer

Description of Spur Gear Shaft

Spur Gear shaft is a transmission component consisting of a shaft with integrated spur gear. The spur gear features a cylindrical shape and is the most commonly used gear type with a wide range of industrial applications.

Key Features
  • Simpler manufacturing process compared to other transmission gear types
  • Widely used in transmission system designs
  • Available for custom manufacturing
Specification Value
Custom Made √
Gear Profile Type Cylindrical Gear
Gear Teeth Manufacturing Gear Milling/Gear Hobbing/Gear Shaping
Gear Teeth Grinding √
Module (M) 2.5
Number of Teeth (Z) 16
Pressure Angle (α) 20°
Helix Angle (β) 0°
Teeth Accuracy Grade ISO 6-7 Grade
Heat Treatment Carburizing
Surface Hardness 58-62 HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi   18XГT   SMK22
20Cr2Ni4   20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA   40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Equipment Images

2.5 Module 58- 62 HRC Spur Transmission Gear Shaft with Carburizing 0

Manufacturing Process

2.5 Module 58- 62 HRC Spur Transmission Gear Shaft with Carburizing 1
