| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | SPG22081301 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $260/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 50 Dyas |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1500 Pieces/Month |
| Material: | 20Cr2Ni4 | Module: | 14 |
|---|---|---|---|
| Face Width: | 90 | Tooth Number: | 17 |
| Pitch Diameter: | 238 | Spline Type: | Rectangular Spline |

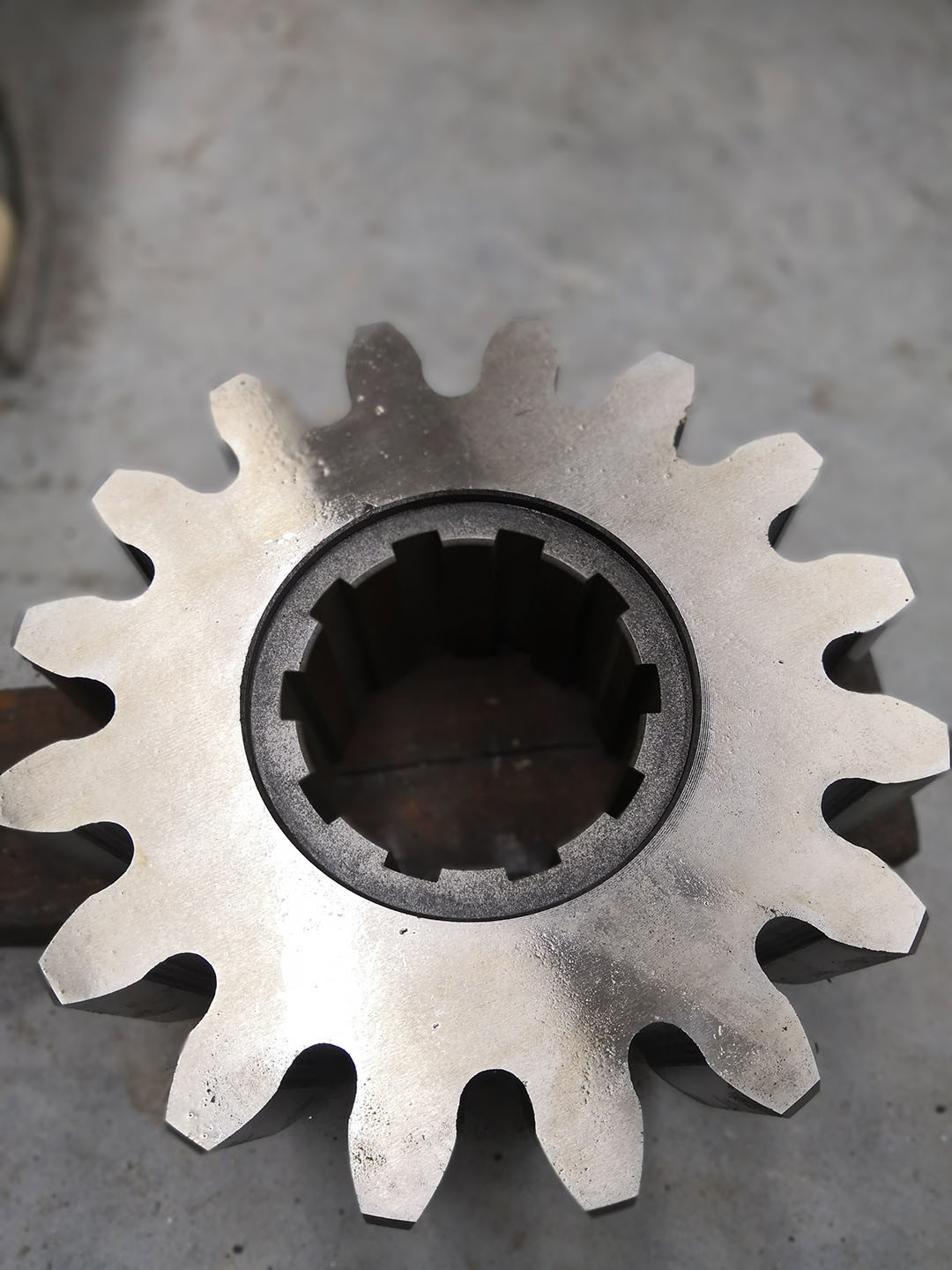

| High Light: | 14 Module 17T planetary drive gear,14 Module 17T Metal Spur Gear,Rectangular spline Metal Spur Gear |
||
1) Description of Spur Gears
The spur gear is a cylindrically shaped tooth component that is used in industrial plants to transmit
mechanical movements and to control speed, power, and torque. These simple gears are inexpensive,
durable, reliable, and provide constant speed positive drive to facilitate day-to-day industrial operations.
2) Application of Spur Gears
Spur gears are the most easily visualized common gears that transmit motion between two parallel and
coplanar and teeth that are straight and parallel to the shafts. Spur gears are one of the most popular types
of precision cylinders.
| Products | Spur Gear |
| Custom Made | √ |
| Gear Profile Type | Cylindrical Gears |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | 14 |
| Number of Teeth (Z) | 17 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0 |
| Teeth Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
