| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | PPS22081901 |
| Minimum Order Quantity: | 2 Pcs |
| Price: | $1000/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 75 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 Sets/Month |
| Profile Type: | Propeller Shaft | Material: | 42CrMo |
|---|---|---|---|
| Length: | 6000 | Diameter: | 150mm |
| Steel Type: | Forging Steel | Packing: | Plywood Box |
| High Light: | 42CrMo Steel Transmission Propeller Shaft,6 Meter 42CrMo steel propeller shaft,Transmission Propeller Shaft For Ferry |
||

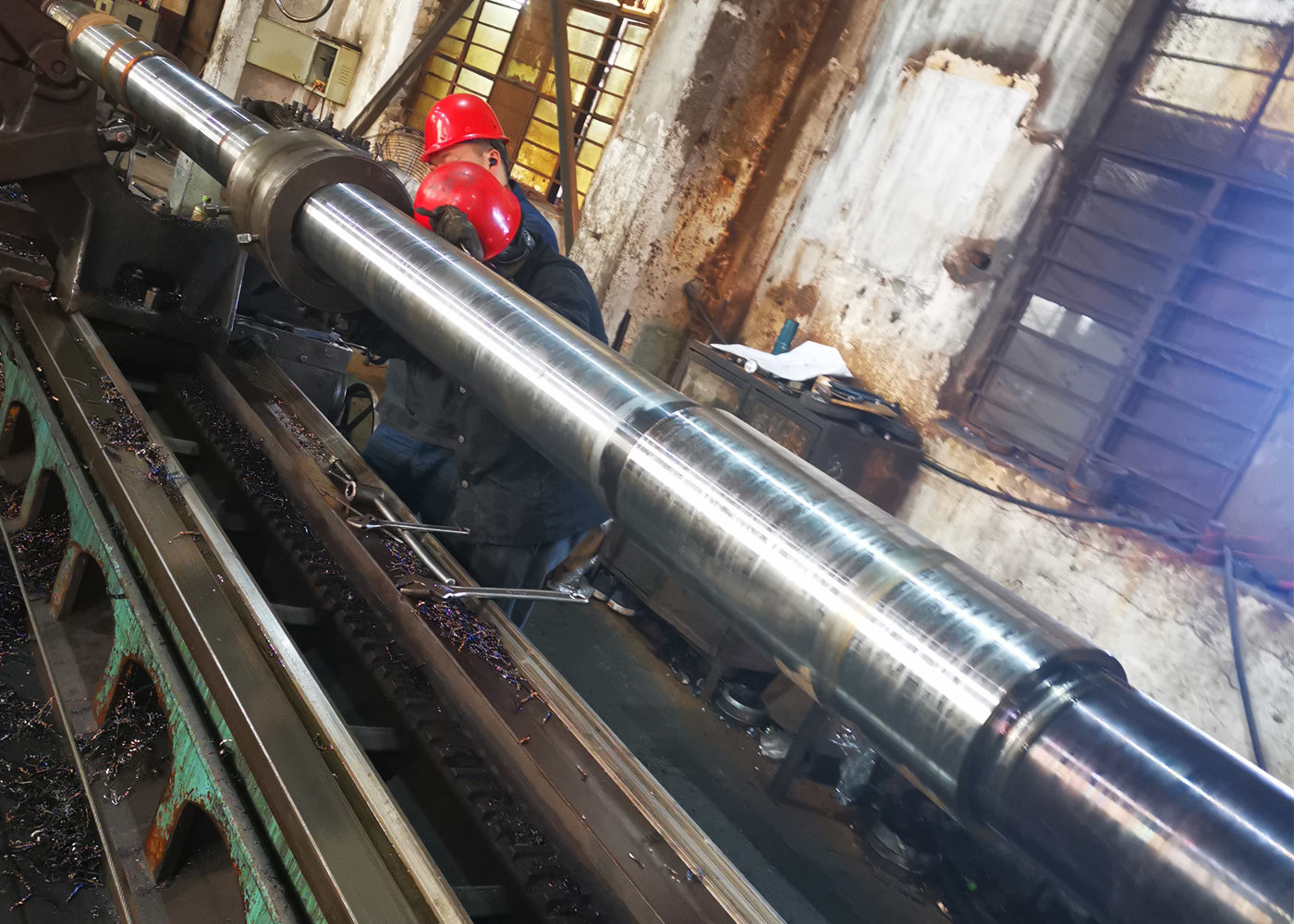

1) Description of Propeller Shaft
Propeller Shaft is the shaft that transmits power from the gearbox to the differential gear in a motor vehicle
from the engine to the propeller in a boat or flying machine. Propeller shaft, sometimes called a cardan shaft,
transmits power from the gearbox to the rear axle.
2) Applications of Propeller Shaft
Driveshafts are used differently in different vehicles, with different configurations for front-wheel drive,
Four wheel drive, and front-engine rear-wheel drive in cars. The driveshafts are also used in vehicles like
motorcycles, locomotives, and marine ships.
| Products | Propoller Shaft |
| Custom Made | √ |
| Profile Type | Shaft |
| Manufacturing Process | Machining |
| Surface Grinding | √ |
| Length | 6 Meter |
| Diameter | 150mm |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
