| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | POM2022082101 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |

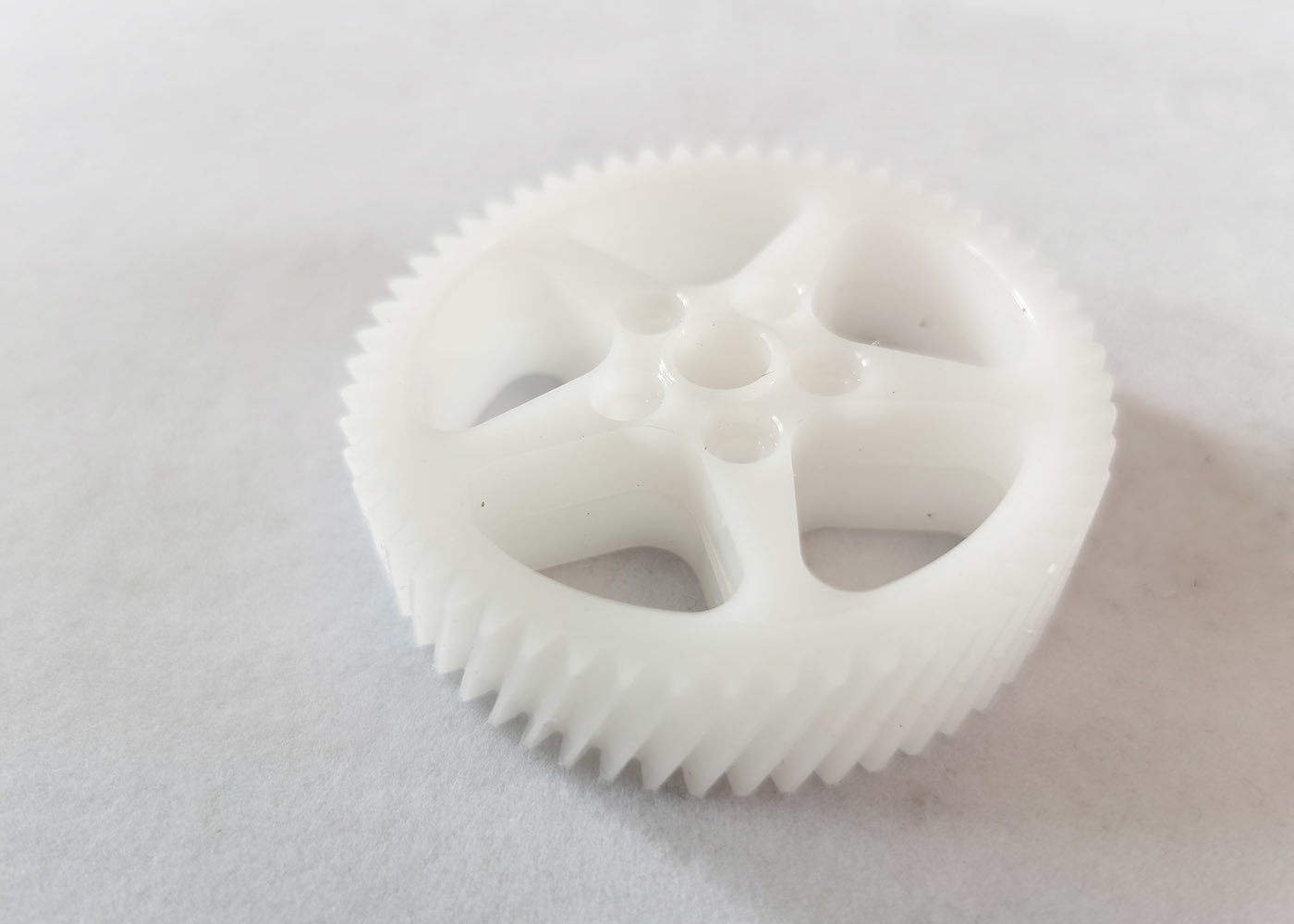

| Module: | 1 | Teeth Number: | 56 |
|---|---|---|---|
| Helix Angle: | 20° | Material: | POM |
| Direction: | Right Hand | Pressure Angle: | 20° |
| High Light: | White Color POM Transmission Gears,POM right hand helical gear,56T Right Hand Helical Gear |
||
1) Description of Helical Gears
gears offer a refinement over spur gears. The leading edges of the teeth are not parallel to the axis of rotation,
but are set at an angle. Since the gear is curved, this angling causes the tooth shape to be a segment of a helix.
Helical gears can be meshed in parallel or crossed orientations. The former refers to when the shafts are parallel
to each other; this is the most common orientation.
| Products | Helical Gears |
| Custom Made | √ |
| Material | POM |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | |
| Number of Teeth (Z) | 56 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 20° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
