| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | POM2022082101 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |

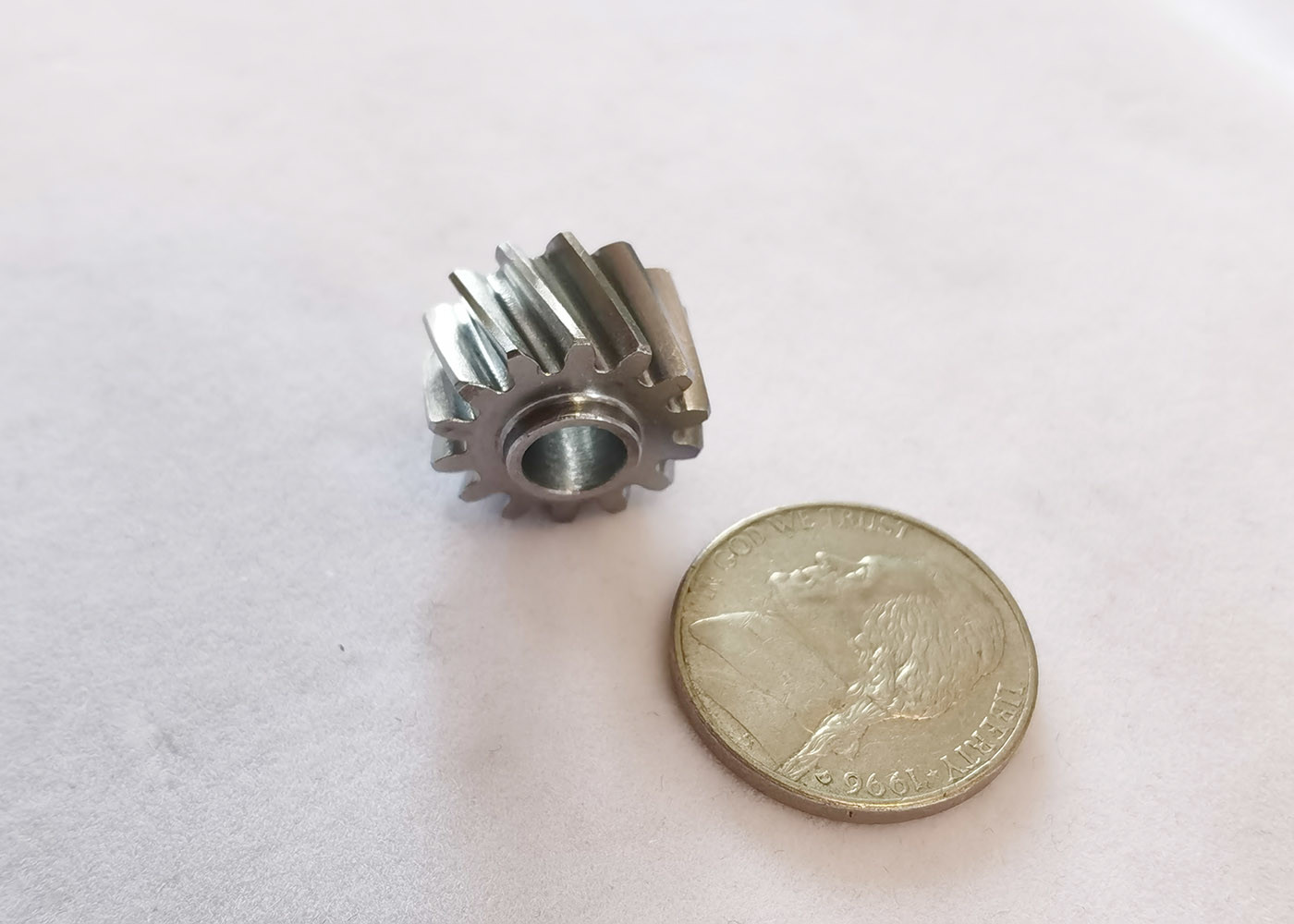

| Module: | 1 | Teeth Number: | 14 |
|---|---|---|---|
| Helix Angle: | 20° | Material: | 40Cr |
| Direction: | Left Hand | Total Height: | 11.25 |
| High Light: | 40Cr Steel helical pinion gears,1 Module 14T Transmission Gears,40Cr Steel 14T Helical Transmission Gears |
||
1) Description of Helical Gears
The angled teeth engage more gradually than do spur gear teeth, causing them to run more smoothly and quietly.
With parallel helical gears, each pair of teeth first make contact at a single point at one side of the gear wheel,
a moving curve of contact then grows gradually across the tooth face to a maximum then recedes until the teeth
break contact at a single point on the opposite side.
| Products | Helical Gears |
| Custom Made | √ |
| Material | 40Cr |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | |
| Number of Teeth (Z) | 16 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 20° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
