| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS20220822804 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 2 | Profile: | Helcial Gear |
|---|---|---|---|
| Pressure Angle: | 20° | Material: | 20CrMnTi |
| Hardness: | 58-62 HRC | Gear Width: | 30 |
| High Light: | 20CrMnTi Steel Transmission Gears,Oil Pump Gear 62 HRC,20CrMnTi Steel Oil Pump Gear |
||

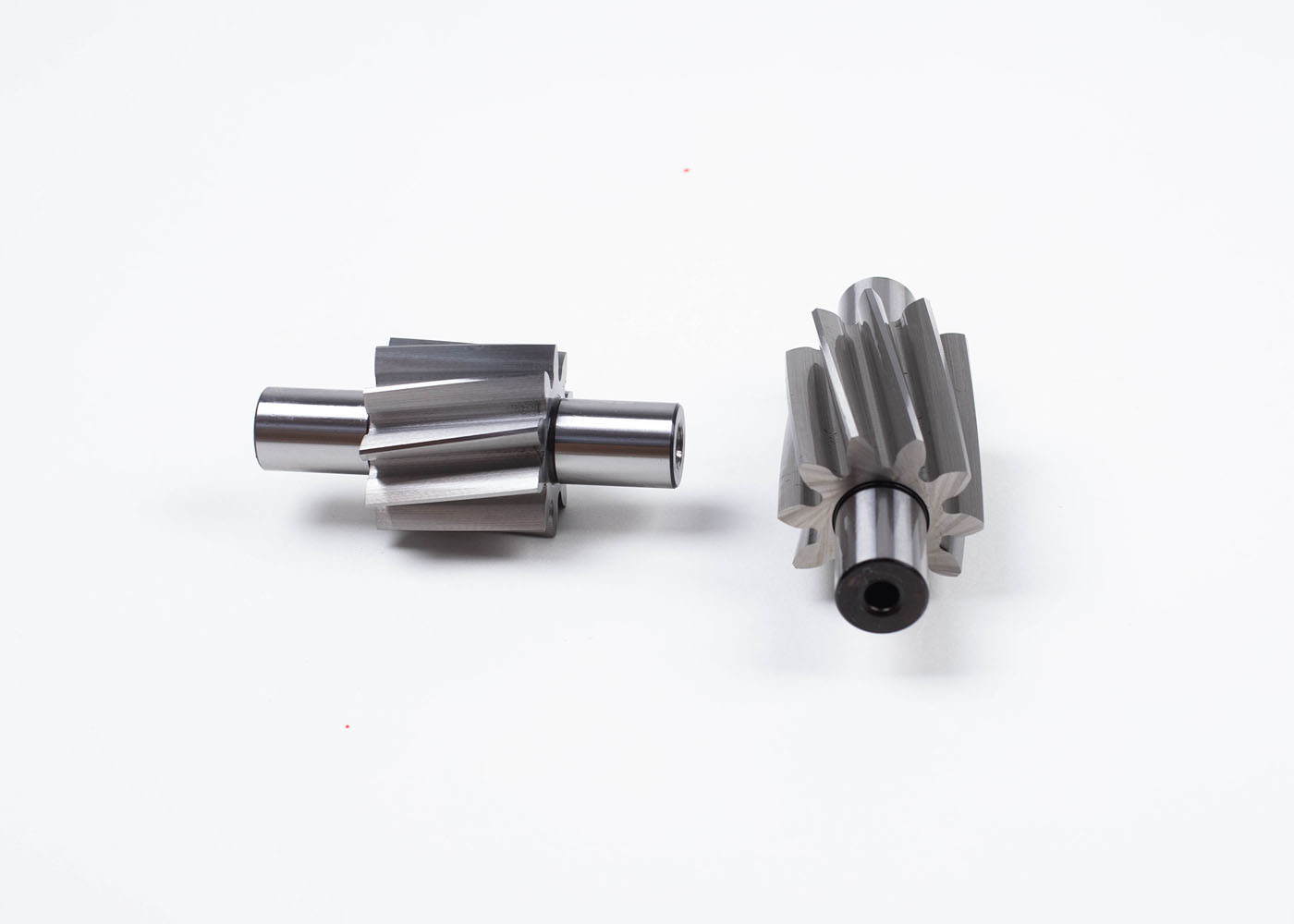

1) Description of Oil Purm Gear
Oil pump gears are powered by the crankshaft and in high horsepower or high revving applications the stock
oil pump gears can fail due to the increased harmonics, or oscillating of the gear from the added power and revolutions of the crankshaft.
There are two types of gear pumps – external gear pumps and internal gear pumps.
External gear pumps make use of two external opposing gears (typically spur gears) in transferring the fluid type.
Internal gear pumps use one outer ring gear and one internal pinion gear running inside the ring gear.
| Products | Oil Pump Ger |
| Custom Made | √ |
| Material | 20CrMnTi |
| Gear Teeth manufacturing | Spline Hobbing |
| Gear Teeth Grinding | √ |
| Module | 2 |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 18° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
