| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS2022123103 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Type: | Bevel Gear | Manufacture: | Gear Milling |
|---|---|---|---|
| Pressure Angle: | 20° | Shaft Angle: | 90° |
| Heat Treatment: | Cement | Keyway: | No |
| Highlight: | Alloy Steel Micro Conical Gear,20 CrMo Transmission Gears,SCM420 Transmission Gears |
||

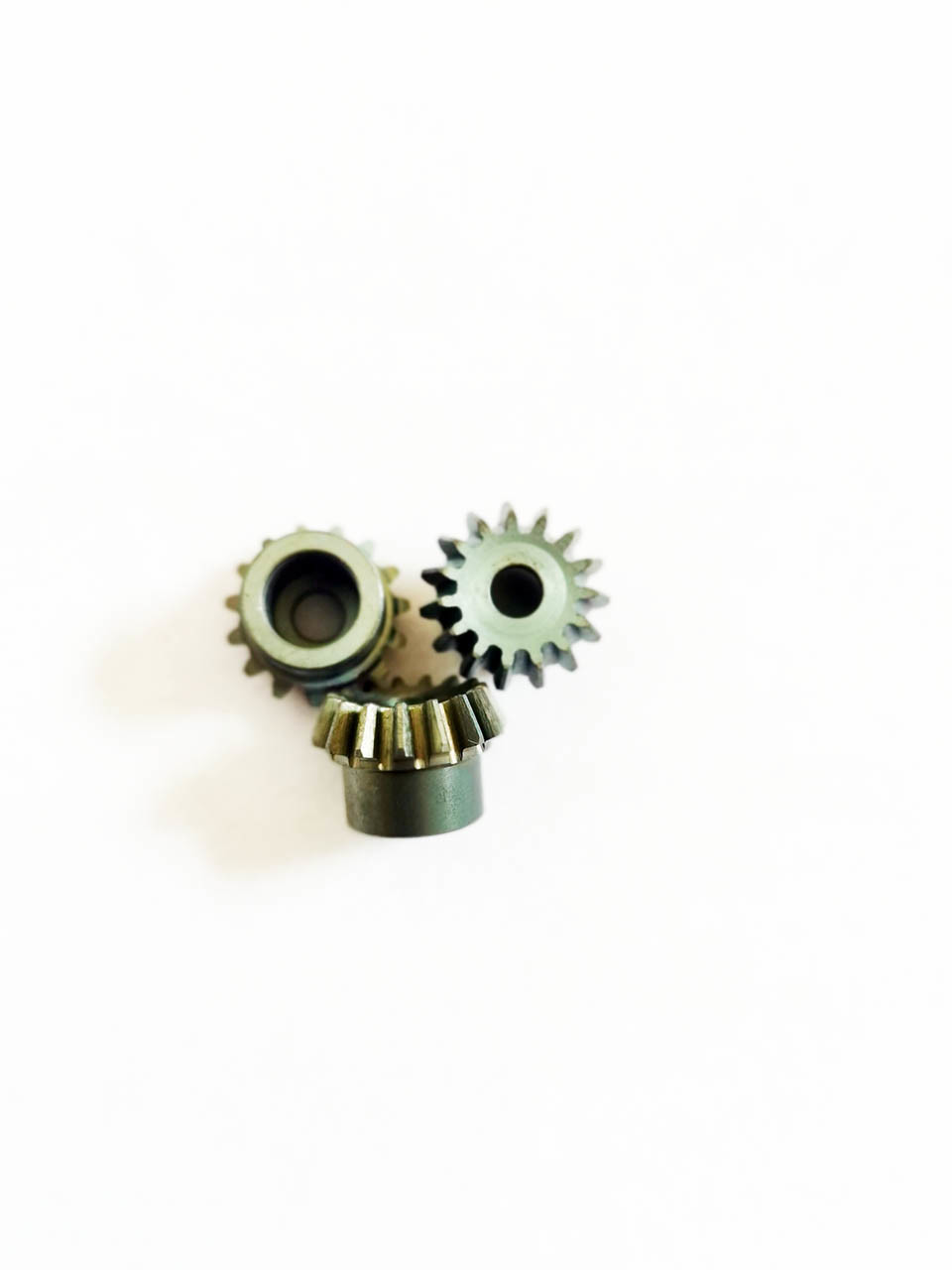

20CrMo SCM420 Alloy Steel Micro Conical Gear By Gear Milling Processing
1) Características de Micro Gear
El beneficio de un tren de microengranajes es que los dientes del engranaje encajan en pequeños incrementos en lugar de que toda la cara engrane a la vez.
Esto reduce el ruido que normalmente se produce cuando los engranajes transfieren potencia.
2) Descripción de Micro Gear
Micro engranaje siempre significa un engranaje de transmisión de tamaño pequeño.
El módulo y el diámetro exterior son pequeños.
Micro engranaje generalmente utilizado para el diseño de sistemas compactos.
| Products | Bevel Gear |
| Custom Made | √ |
| Gear Profile Type | 20CrMo |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | √ |
| Module (M) | 0.5 |
| Number of Teeth (Z) | |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 8-9 Grade |
| Heat Treatment | Cement |
| Surface Hardness | 58-62HRC |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
