| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | YZGBH230101 |
| Minimum Order Quantity: | 5 Pieces |
| Price: | $150/Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 55 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Pieces/Month |
| Type: | Gearbox Housing | Width: | 75 |
|---|---|---|---|
| Material: | 1045 Steel | Heat Treatment: | Q&T |
| Hradness: | 220-260 HB | Packing: | Plywood Crate |
| Highlight: | Gearbox Housing Transmission Gears,1045 Steel Transmission Gears,Transmission Gears 260 HB |
||

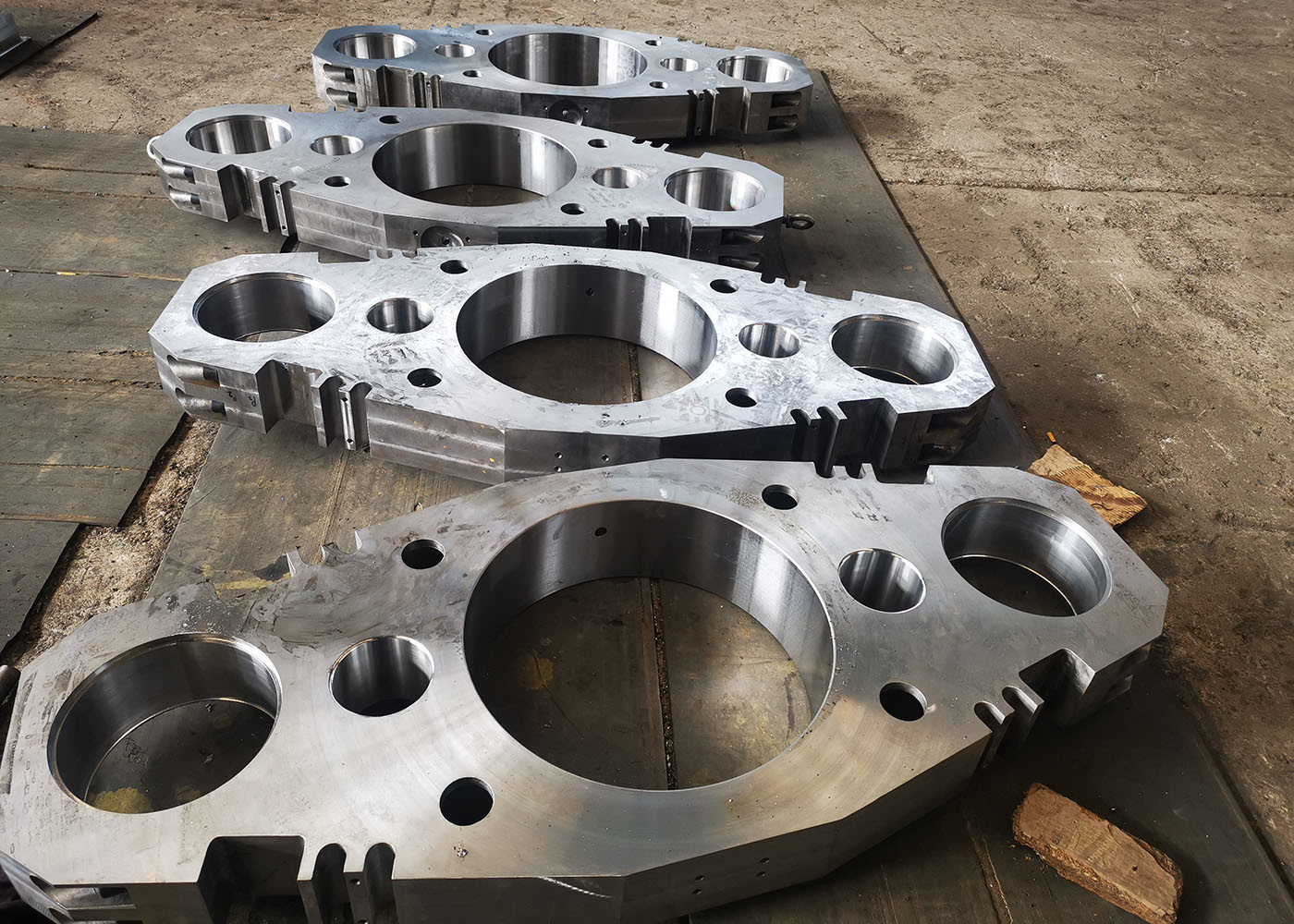

Mecanizado de piezas de transmisión 1045 carcasa de caja de cambios de acero carcasa de caja de cambios
1) Descripción de la carcasa del reductor de engranajes de la carcasa de la caja de cambios
La carcasa de engranajes es una carcasa mecánica que rodea los componentes mecánicos de una caja de engranajes.
Proporciona soporte mecánico para los componentes móviles, una protección mecánica del mundo exterior para esos componentes internos,
y un recipiente hermético a fluidos para contener el lubricante que baña esos componentes.
| Products | Gearbox Housing |
| Custom Made | √ |
| Gear Profile Type | |
| Gear Teeth manufacturing | |
| Gear Teeth Grinding | |
| Hardness | 220-260 HB |
| Hardened Depth | |
| Pressure Angle (α) | |
| Helix Angle (β) | |
| Teeth Accuracy Grade | ISO 8 Grade |
| Heat Treatment | QT |
| Weight | 89Kg |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
