| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS2022123102 |
| Minimum Order Quantity: | 2 Sets |
| Price: | $2/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Module: | 0.5 | Method: | Gear Hobbing |
|---|---|---|---|
| Pressure Angle: | 20° | Width: | 5mm |
| Heat Treatment: | Q&T | Hub: | Yes |
| Highlight: | Transmission Spur Gear Wheel,Aluminum Transmission Spur Gear,5mm Transmission Spur Gear |
||

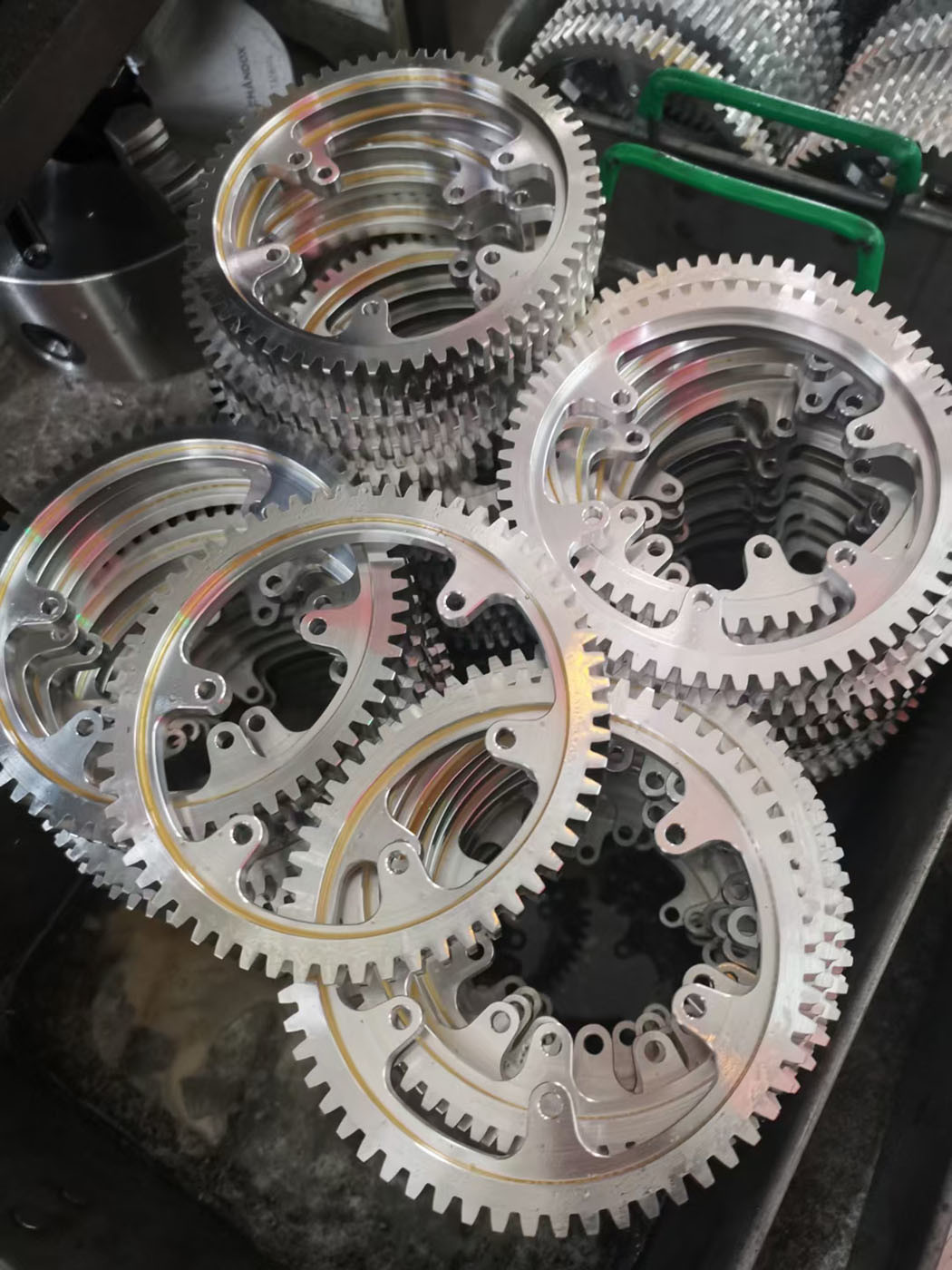

Special-Shaped Aluminum Transmission Spur Gear Gear Wheel
1) Descripción de Micro Gear
Micro engranaje siempre significa un engranaje de transmisión de tamaño pequeño.
El módulo y el diámetro exterior son pequeños.
Micro engranaje generalmente utilizado para el diseño de sistemas compactos.
2) Características de Micro Gear
El beneficio de un tren de microengranajes es que los dientes del engranaje encajan en pequeños
incrementos en lugar de que toda la cara engrane a la vez.
Esto reduce el ruido que normalmente se produce cuando los engranajes transfieren potencia.
| Products | Spur Gear |
| Custom Made | √ |
| Gear Profile Type | 7075 Aluminum |
| Gear Teeth manufacturing | Gear Hobbing |
| Gear Teeth Grinding | √ |
| Module (M) | 1 |
| Number of Teeth (Z) | |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 7-8 Grade |
| Heat Treatment | Quenching & Tempering |
| Surface Hardness | 220-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
