| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIZGEAR |
| Model Number: | GS23051201 |
| Minimum Order Quantity: | 2 Pieces |
| Price: | $90/ Piece |
| Packaging Details: | Plywood Crate |
| Delivery Time: | 62 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets/Month |
| Manufacturing Method: | Milling | Gear Type: | Spur Gear |
|---|---|---|---|
| Pressure Angle: | 20° | Tip Diameter: | 3244 |
| Teeth Width: | 320mm | Material: | Casting Steel |
| Highlight: | Adjoining Surface Milling Spur Gear,320mm Milling Spur Gear,Casting Steel Milling Spur Gear |
||
Adjoining Surface Milling Work For Two Segments Assembled Crown Gear Wheel
This gear is designed with two segments
The two segments will be assembled as a whole circle gear ring
The two segments can make the shipping arrangment work easier

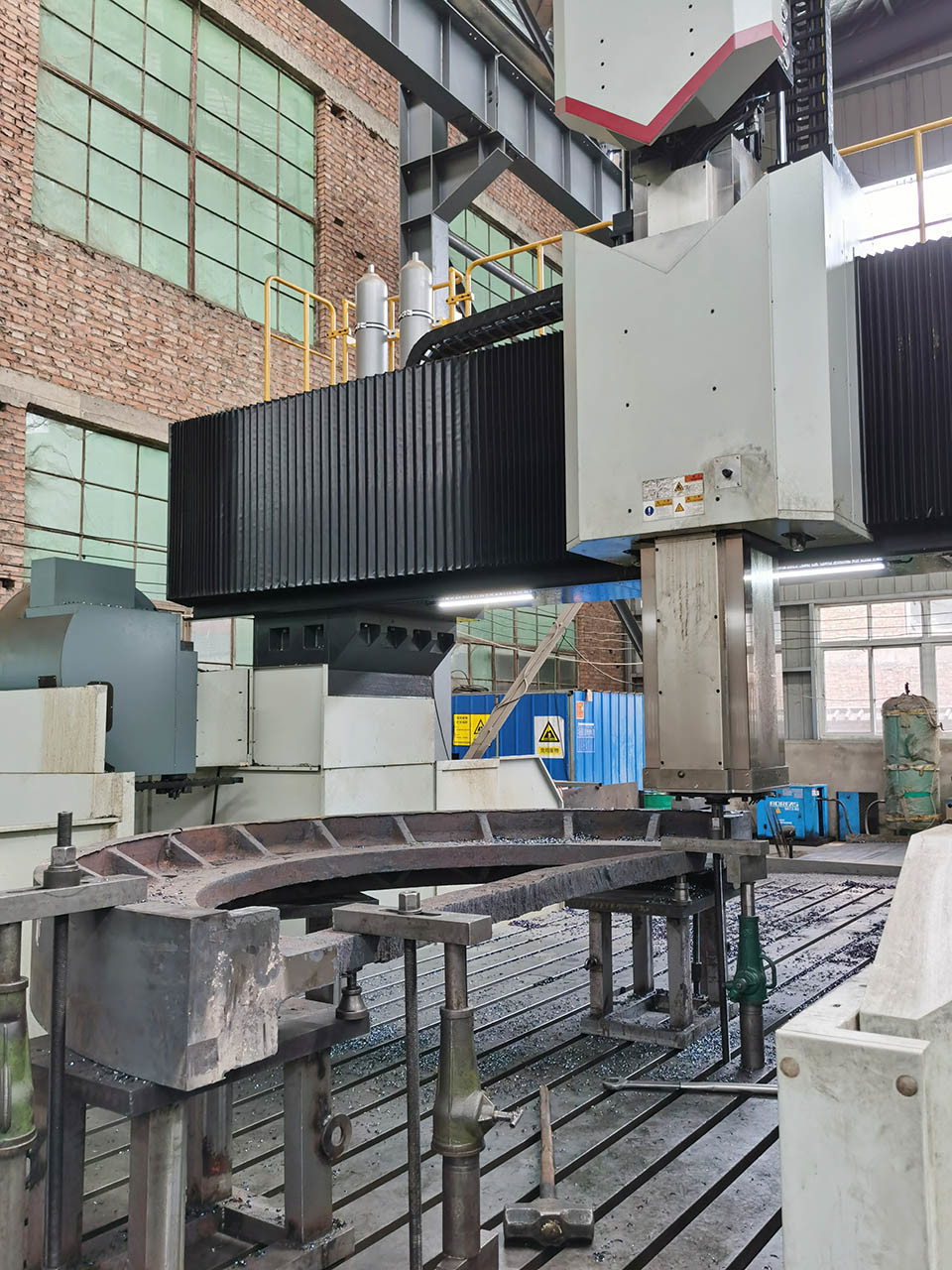

The adjoining surface is under milling work to make sure the two segments can with good connect.
The crown gear usually only with Q&T heat treatment
The mating pinion gear can with induction hardened heat treatment.
| Products | Milling |
| Custom Made | √ |
| Material | Casting Steel |
| Gear Teeth manufacturing | Gear Milling |
| Gear Teeth Grinding | √ |
| Module (M) | 16.933 |
| Number of Teeth (Z) | |
| Pressure Angle (α) | 20° |
| Helix Angle (β) | 0° |
| Teeth Accuracy Grade | ISO 7 Grade/ AGMA 11Grade |
| Heat Treatment | Q & T |
| Surface Hardness | 220-260 HB |
| STEEL CODE GRADES COMPARISON | |||||
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/ 40XHMA |
4340 | SNCM439 | 40NiCrMo6/ 36NiCrMo4 |
|
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |
